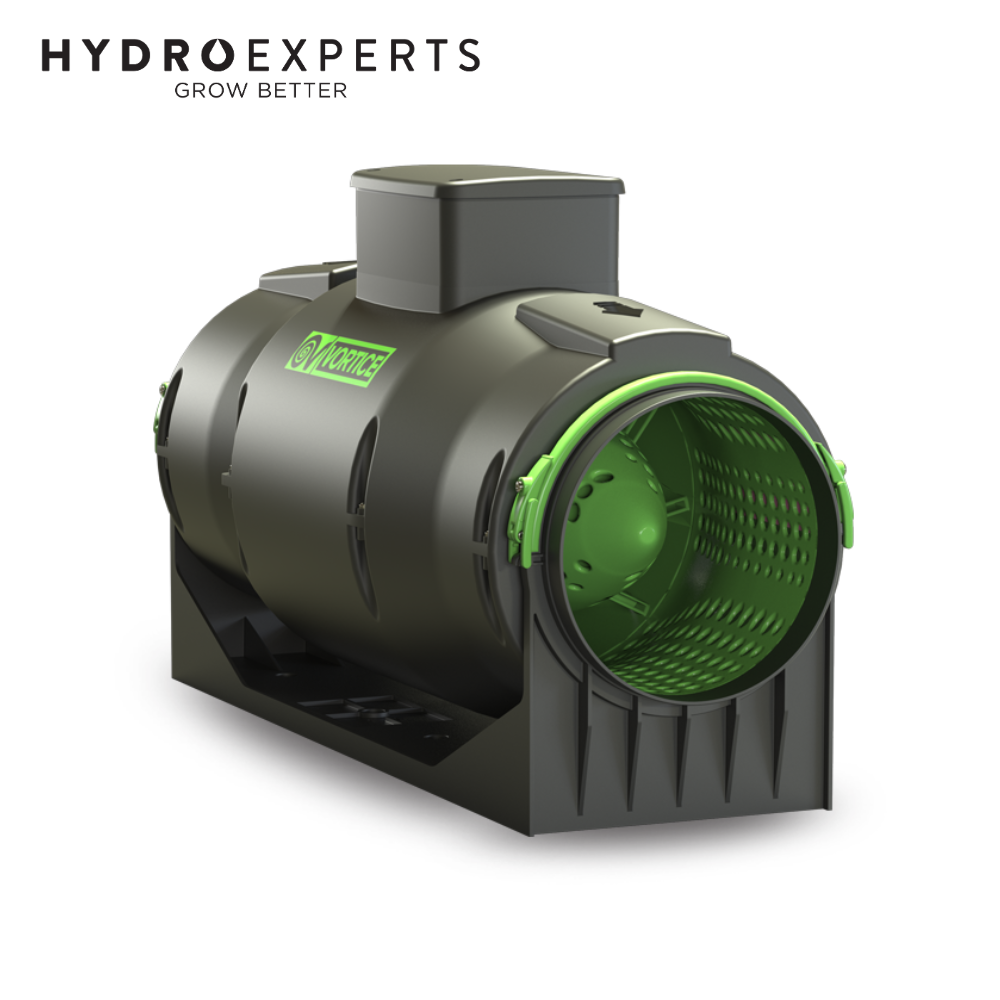

Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 315 | 315MM (12" Inch)

Air Flow 2630 M³/H | Power Consumption 220W | IP45

SKU: FANS70105
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice Lineo Quiet ES 315 EC Inline Fan is the ultimate high-performance ventilation solution for large-scale commercial, industrial, or agricultural applications in Australia. Built with a powerful brushless EC motor and delivering up to 2630 m³/h airflow, this fan supports high static pressures and extensive duct systems while maintaining acoustic control.

Crafted from fire-resistant plastic resin (E2 class), the housing incorporates acoustic insulation that drastically reduces breakout noise. Its centrifugal impeller, ball bearing-mounted shaft, and thermal overload protection ensure reliable, quiet, and safe performance.

This 315MM model supports speed regulation via a 0–10V signal or 2-speed switch, enabling advanced integration with building management systems or automation environments. The unit is IP45 rated when duct-installed, providing exceptional water protection in demanding environments.

Applications:

  • Warehouse and factory ventilation
  • High-capacity HVAC systems
  • Commercial kitchens and food processing plants
  • Indoor agriculture (e.g., hydroponics or greenhouses)
  • Large shopping centres, sports facilities, and theatres

Features

  • Maximum Airflow Capacity: 2630 m³/h for large volume ventilation
  • Low Power Consumption: Just 220W at full load
  • Quiet Operation: Only 48.3 dB(A) breakout at 3m
  • Heavy-Duty Construction: E2 fire-resistant plastic casing (ISO EN 11925-2:2010)
  • Centrifugal Impeller with EC Motor: High efficiency and durability
  • Speed Control Flexibility: 0–10V potentiometer or 2-speed switch
  • High Static Pressure: Up to 379.5 Pa — suitable for long duct runs
  • Ingress Protection: IP45 compliant when installed in duct

Specifications

Attribute Value
Air Flow Rate Max 2630 m³/h (730.6 L/s)
Power Consumption Max 220W
Voltage 220–240V
Frequency 50–60Hz
Motor Type EC Brushless Motor (Thermally Protected)
IP Rating IP45 (When installed in duct)
Nominal Diameter 315MM (12" Inch)
Weight 28.3 kg
Noise Level @ 3m 48.3 dB(A)
Max Static Pressure 379.5 Pa
Max Operating Temperature 50°C
Speed Control Options 0–10V Potentiometer or 2-Speed Switch

In The Box

  • [1] x Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 315 | 315MM (12" Inch)
