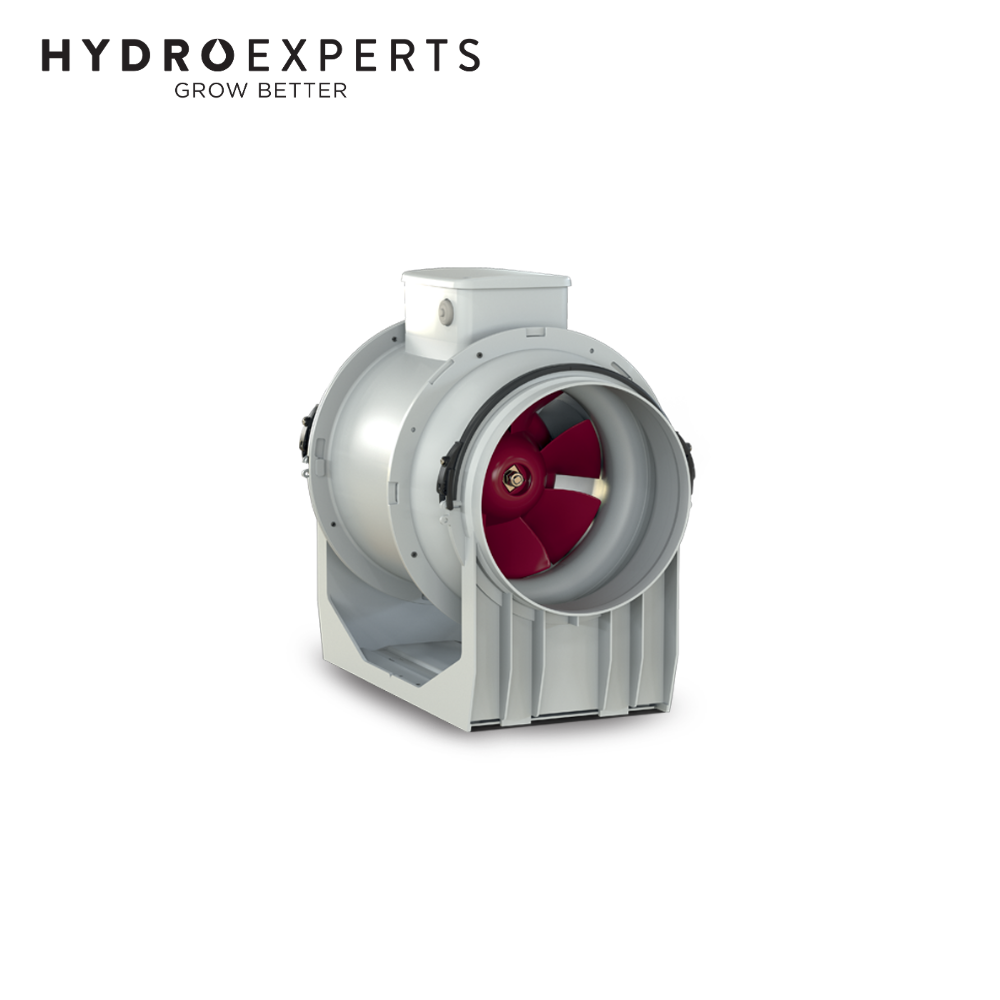

Vortice Lineo Inline Mixed Flow AC Fan - Lineo 315 | 315MM (12" Inch)

Air Flow 2740 M³/H | Power Consumption 360W | IPX5

SKU: FANS70305
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice Lineo Inline Mixed Flow AC Fan - Lineo 315 is a powerful, industrial-grade ventilation fan engineered for large-scale residential, commercial, and industrial air extraction needs in Australia. Designed with a 315mm nominal diameter and an impressive maximum airflow of 2740 m³/h, this mixed-flow inline fan ensures exceptional performance even in high-demand environments such as warehouses, factories, grow rooms, and commercial kitchens.

Constructed from fire-resistant E2 class plastic resin to ISO EN 11925-2:2010 standards, the housing provides superior durability and safety in areas close to electrical and motor components. The thermally protected induction motor, mounted on ball bearings, offers long-lasting operation with minimal maintenance, while the centrifugal impeller ensures high efficiency and stable airflow.

With a water resistance rating of IPX5 when installed in ducting, the Lineo 315 is ideal for moisture-prone environments. It also supports variable speed control through compatible Vortice speed regulators, enabling tailored airflow and energy savings. This robust inline fan is built for continuous operation, making it a go-to choice for professionals who demand performance, reliability, and ease of installation.

Features

  • Exceptional Airflow Capacity – Up to 2740 m³/h at maximum speed for high-demand ventilation.
  • Durable Fire-Resistant Construction – E2 class plastic resin to ISO EN 11925-2:2010 standards.
  • 315mm Nominal Diameter – Suitable for large ducting systems and heavy-duty applications.
  • Industrial-Grade Motor – Induction motor with thermal protection and ball bearings for extended lifespan.
  • IPX5 Water Resistance – Reliable operation in humid or moisture-rich environments when ducted.
  • Variable Speed Control – Compatible with Vortice speed control devices for customised airflow.
  • Optimised Noise Levels – 51.6 dB(A) breakout sound at 3m on maximum speed.
  • Built for Continuous Use – Designed for industrial and commercial long-term operation.

Specifications

Model Vortice Lineo 315
Nominal Diameter 315 mm
Voltage 220-240 V
Frequency 50-60 Hz
Max Airflow 2740 m³/h
Airflow (Low Speed at 60Hz) 1635 m³/h
Power Consumption (Max) 360 W
Power Consumption (Low) 250 W
Current (Max) 1.55 A
Noise Level @ 3m (Max) 51.6 dB(A)
Max Pressure 559 Pa
Insulation Class Class II
IP Rating IPX5
Max Operating Temperature 50°C
Weight 9.5 kg

In The Box

  • [1] x Vortice Lineo Inline Mixed Flow AC Fan - Lineo 315 | 315MM (12" Inch)
