Vortice Lineo Inline Mixed Flow AC Fan - Lineo 200 | 200MM (8" Inch)

Air Flow 1135 M³/H | Power Consumption 110W | IPX5

SKU: FANS70303
|

OUT OF STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

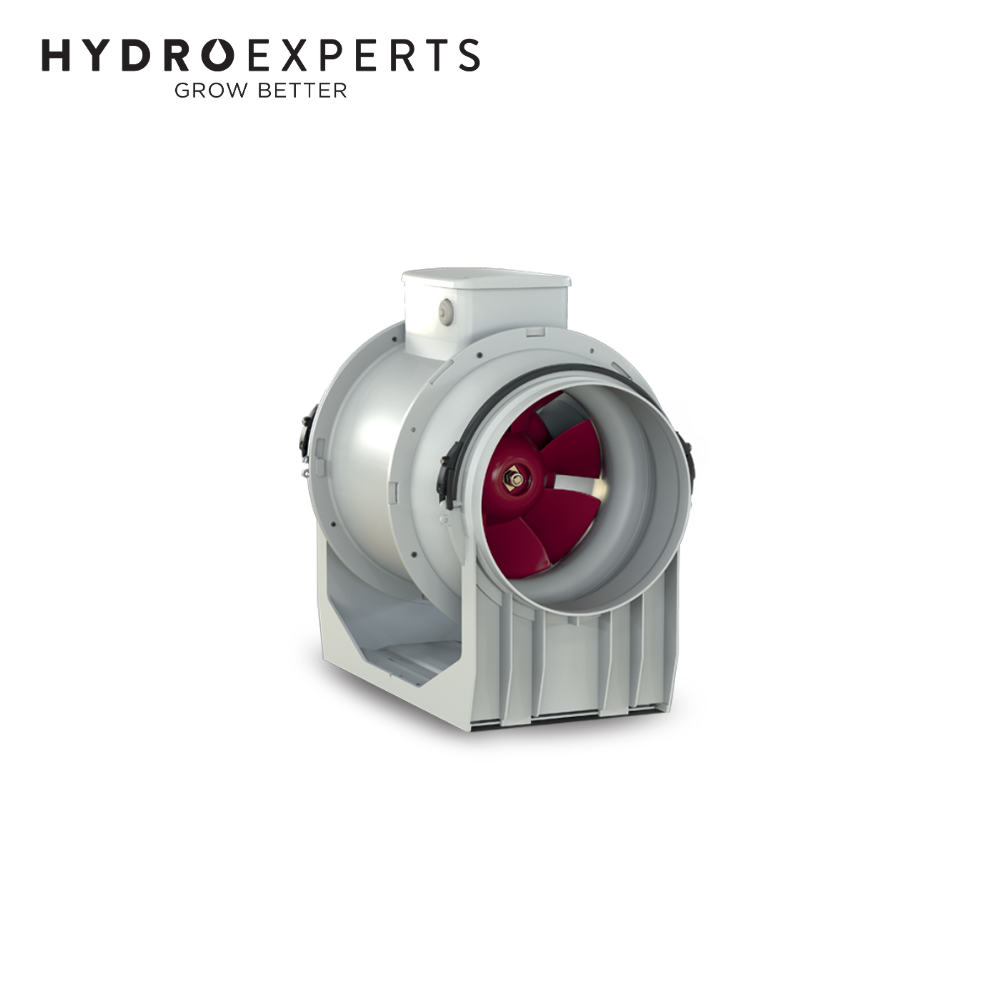

The Vortice Lineo Inline Mixed Flow AC Fan - Lineo 200 is a premium-grade ventilation solution designed to deliver exceptional airflow performance for both residential and commercial applications in Australia. With a nominal diameter of 200mm and a maximum airflow capacity of 1135 m³/h, it ensures powerful extraction while maintaining energy efficiency. Constructed from fire-resistant E2 class plastic resin in compliance with ISO EN 11925-2:2010, this fan offers superior safety and durability in environments close to the motor and electrical components.

The unit features a thermally protected induction motor mounted on ball bearings for enhanced operational life and reduced maintenance. Its mixed-flow centrifugal impeller design ensures high performance with lower noise levels. With an IPX5 water resistance rating (when installed in ductwork), the Lineo 200 is well-suited for demanding environments including kitchens, bathrooms, grow rooms, and commercial exhaust systems. Airflow can be precisely adjusted with compatible Vortice speed control devices, providing flexibility for any project.

Built for reliability, easy installation, and long-term use, the Vortice Lineo 200 is the perfect choice for professionals and DIY installers who require robust and high-capacity inline ventilation.

Features

  • Durable Fire-Resistant Housing – Made from E2 class plastic resin to ISO EN 11925-2:2010 standards for safety.
  • 200mm Nominal Diameter – Fits standard duct systems with ease.
  • High-Performance Motor – Induction motor with thermal protection and ball bearing supports.
  • Powerful Airflow – Up to 1135 m³/h for fast and efficient ventilation.
  • Water Resistant to IPX5 – Safe for use in humid or moisture-prone areas when installed in ducting.
  • Adjustable Speed Control – Compatible with Vortice speed regulators for tailored performance.
  • Quiet Operation – Noise level of just 46.9 dB(A) at 3m on maximum speed breakout.
  • Reliable and Long-Lasting – Designed for continuous operation in professional environments.

Specifications

Model Vortice Lineo 200
Nominal Diameter 200 mm
Voltage 220-240 V
Frequency 50-60 Hz
Max Airflow 1135 m³/h
Airflow (Low Speed at 60Hz) 640 m³/h
Power Consumption (Max) 110 W
Power Consumption (Low) 85 W
Current (Max) 0.49 A
Noise Level @ 3m (Max) 46.9 dB(A)
Max Pressure 294.2 Pa
Insulation Class Class II
IP Rating IPX5
Max Operating Temperature 50°C
Weight 4.9 kg

In The Box

  • [1] x Vortice Lineo Inline Mixed Flow AC Fan - Lineo 200 | 200MM (8" Inch)
