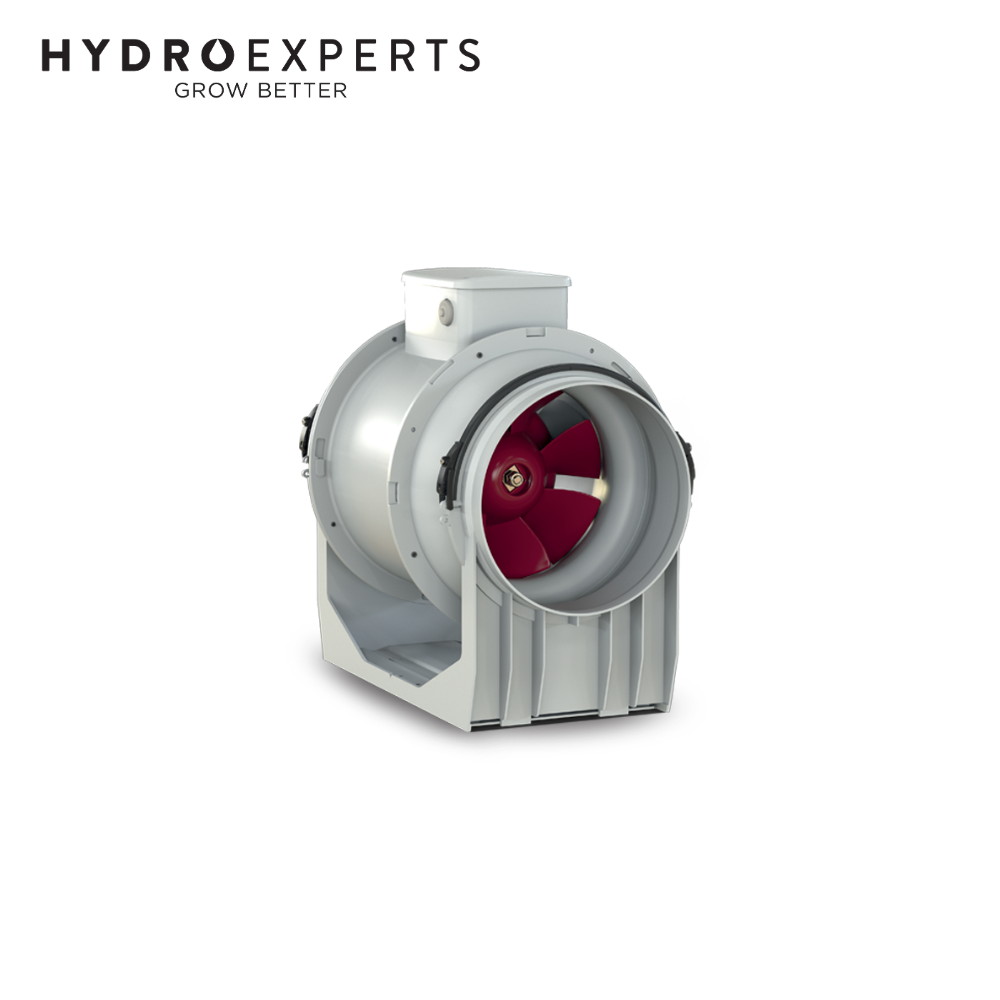

Vortice Lineo Inline Mixed Flow EC Fan - Lineo 315 ES | 315MM (12" Inch)

Air Flow 2625 M³/H | Power Consumption 230W | IP45

SKU: FANS70405
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice Lineo 315 ES Inline Mixed Flow EC Fan delivers exceptional performance for both residential and commercial ventilation needs. Featuring a 315mm nominal diameter and a high-capacity airflow of up to 2625 m³/h, this advanced EC (brushless) motor fan offers outstanding efficiency and low energy consumption at just 230W maximum power. Constructed with E2 class fire-resistant plastic resin compliant with ISO EN 11925-2:2010 standards, it ensures safe operation even near motor and electrical components. With an IP45 rating (and IPX5 when duct-installed), the Lineo 315 ES provides excellent water resistance, making it ideal for challenging environments. Equipped with thermal overload protection and a speed-adjustable control via potentiometer or two-speed switch, it’s a reliable and versatile solution for a wide range of ventilation applications across Australia.

Features

  • High Airflow Performance: Delivers up to 2625 m³/h for powerful ventilation.
  • Energy Efficient EC Motor: Brushless, thermally protected motor with ball bearing supports for extended lifespan.
  • Durable Construction: E2 class fire-resistant plastic resin, compliant with ISO EN 11925-2:2010.
  • Water Resistance: Rated IP45 (IPX5 when duct-installed) for enhanced protection in humid or wet conditions.
  • Thermal Safety: Built-in thermal fuse overheating safety device for safe operation.
  • Flexible Speed Control: Adjustable via 0-10V potentiometer or preset two-speed switch.
  • Quiet Operation: Low sound pressure levels for reduced noise in occupied spaces.

Specifications

Model Vortice Lineo 315 ES
Nominal Diameter 315 mm
Max Airflow 2625 m³/h
Voltage 220-240V
Max Power 230 W
Max Current 1.75 A
Motor Type EC Brushless
Insulation Class II
Ingress Protection IP45 / IPX5 (duct-installed)
Max Pressure 421.7 Pa
Max Ambient Temperature 50°C
Weight 9.2 kg
Dimensions (A x B x C) 373 x 506 x 420 mm

In The Box

  • [1] x Vortice Lineo Inline Mixed Flow EC Fan - Lineo 315 ES | 315MM (12" Inch)
