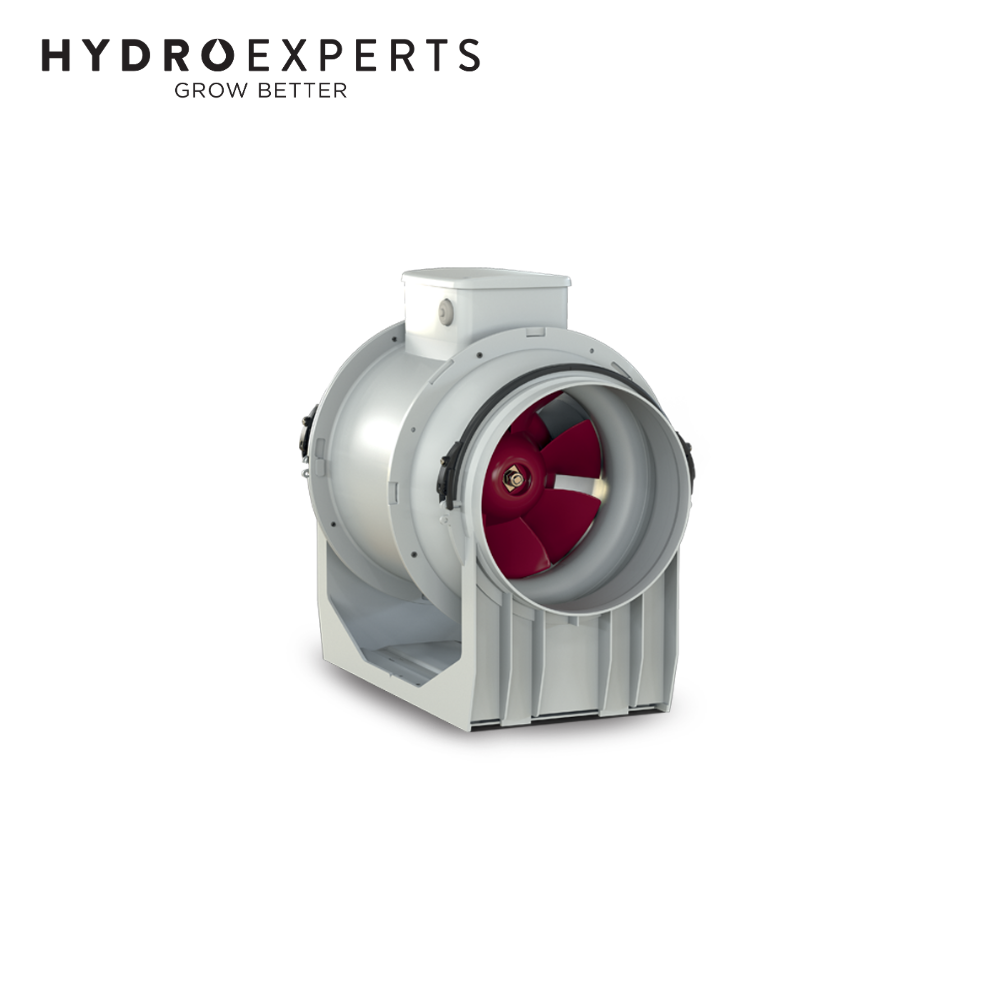

Vortice Lineo Inline Mixed Flow EC Fan - Lineo 250 ES | 250MM (10" Inch)

Air Flow 1475 M³/H | Power Consumption 126W | IP45

SKU: FANS70404
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice Lineo 250 ES Inline Mixed Flow EC Fan is a powerful and energy-efficient inline fan engineered for high-capacity ventilation in commercial, industrial, and large-scale residential systems. Designed with a 250mm nominal diameter and a premium EC (brushless) motor mounted on ball bearings, it achieves a maximum airflow of 1475 m³/h with exceptional efficiency and reliability.

Built for durability and safety, the unit’s fire-resistant E2 class housing complies with ISO EN 11925-2:2010 and offers an IP45 protection rating (IPX5 when installed in ductwork) for dependable performance in demanding environments. Speed can be finely tuned via a potentiometer (0–10V) or a preset two-speed switch. Integrated thermal fuse protection safeguards against overheating, making the Vortice Lineo 250 ES an ideal choice for continuous or variable-speed ventilation systems where high airflow and quiet operation are essential.

Features

  • High-Capacity EC Motor – Brushless technology ensures energy efficiency, long service life, and thermal protection.
  • Large 250mm Diameter – Provides superior airflow for large-scale applications.
  • Fire-Resistant Construction – E2 class resin housing meets ISO EN 11925-2:2010 standards.
  • Moisture-Resistant Design – IP45 rating (IPX5 in duct) for reliable use in challenging environments.
  • Adjustable Speed Control – Potentiometer (0–10V) or two-speed switch for precise airflow management.
  • Quiet and Efficient – Low noise levels starting from 28.4 dB(A) at 3m on low speed.
  • Thermal Fuse Safety – Integrated protection against overheating for continuous safe operation.

Specifications

Parameter Value
Nominal Diameter 250mm
Max Airflow 1475 m³/h
Voltage 220-240V
Frequency 50-60Hz
Max Power 126W
Max Current 1.00A
Insulation Class Class II
IP Rating IP45 (IPX5 in duct)
Max Ambient Temperature 50°C
Weight 5.0 kg
RPM 2690 (max)
Noise Level at 3m 44 dB(A) at max speed
Housing Material Fire-resistant plastic resin (E2 class)

In The Box

  • [1] x Vortice Lineo Inline Mixed Flow EC Fan - Lineo 250 ES | 250MM (10" Inch)
