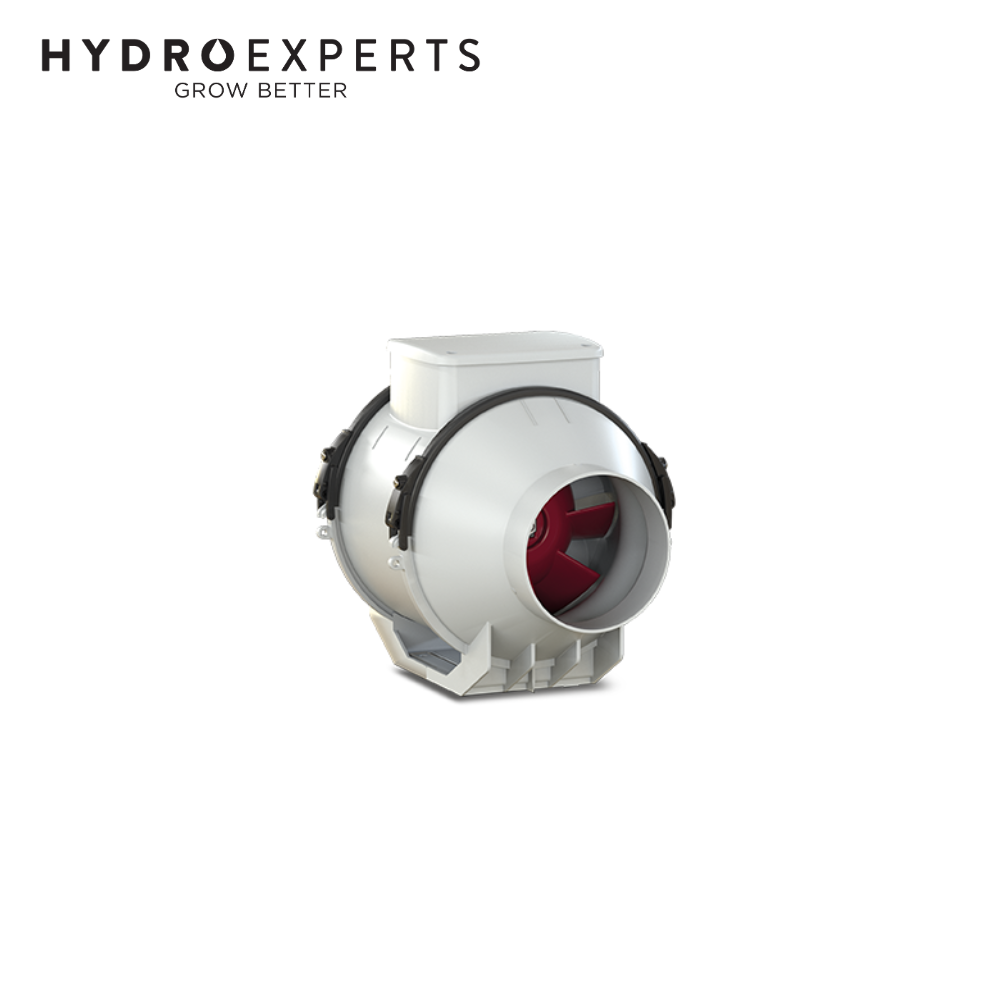

Vortice Lineo Inline Mixed Flow AC Fan - Lineo 100 | 100MM (4" Inch)

Air Flow 255 M³/H | Power Consumption 23W | IP44

SKU: FANS70301
|

OUT OF STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice Lineo 100 is a high-performance, inline mixed-flow AC fan designed for efficient ventilation in residential, commercial, and light industrial settings. Featuring a compact 100mm nominal diameter and an airflow capacity of up to 255 m³/h, this fan is ideal for ducted installations requiring reliable air movement with minimal noise. Its robust enclosure is made from fire-resistant E2 class plastic resin, compliant with ISO EN 11925-2:2010, ensuring durability and safety in areas near motors and electrical components. The thermally protected induction motor is mounted on ball bearing supports and coupled with a centrifugal impeller for long-lasting performance. With an IPX5 rating when installed in a duct, the Lineo 100 offers excellent water resistance and can be speed-controlled via compatible Vortice devices, making it versatile for different ventilation needs.

Features

  • Fire-Resistant Construction: Enclosure made from E2 class plastic resin, compliant with ISO EN 11925-2:2010 for safety near electrical components.
  • Compact 100mm Diameter: Designed to suit standard duct sizes for easy integration into existing systems.
  • High-Performance Motor: Induction motor with thermal protection and ball bearing supports for reliability.
  • Strong Airflow: Maximum airflow of 255 m³/h for efficient ventilation performance.
  • Water Resistance: IPX5 rating when installed in a duct, ideal for moisture-prone areas.
  • Adjustable Speed: Compatible with Vortice speed control devices for customised performance.
  • Quiet Operation: Low noise output with a sound pressure level of just 29.5 dB(A) at maximum speed from 3m.

Specifications

Model Vortice Lineo 100
Nominal Diameter 100 mm
Airflow (Max) 255 m³/h
Airflow (1st Speed) 180 m³/h
Max Pressure 161.9 Pa
Power Consumption (Max) 23 W
Power Consumption (1st Speed) 20 W
Voltage 220–240 V
Frequency 50 Hz
Current (Max) 0.11 A
Noise Level @ 3m (Max) 29.5 dB(A)
Insulation Class II
IP Rating IPX5 (in duct)
Weight 2 kg
Max Operating Temp 60 °C
Dimensions (A x B x C) 188.5 x 211 x 303 mm

In The Box

  • [1] x Vortice Lineo Inline Mixed Flow AC Fan - Lineo 100 | 100MM (4" Inch)
