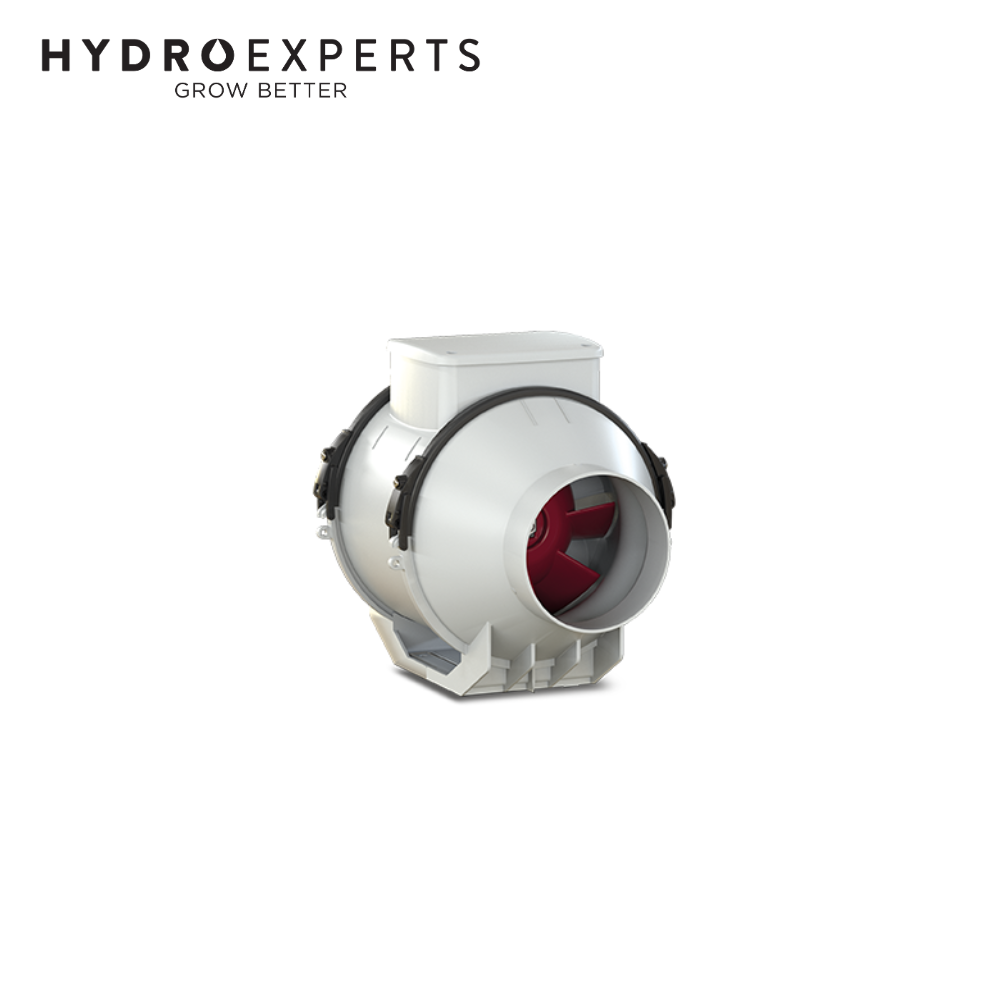

Vortice Lineo Inline Mixed Flow EC Fan - Lineo 100 ES | 100MM (4" Inch)

Air Flow 305 M³/H | Power Consumption 20W | IP45

SKU: FANS70401
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice Lineo 100 ES Inline Mixed Flow EC Fan is a high-efficiency, energy-saving ventilation solution designed for residential, commercial, and industrial applications. Featuring a 100mm nominal diameter and a powerful EC (brushless) motor mounted on ball bearings, it delivers superior airflow performance with minimal energy consumption. The fire-resistant plastic resin housing (E2 class, ISO EN 11925-2:2010) ensures maximum safety, particularly in areas close to the motor and electrical components. This unit offers IP45 water resistance (up to IPX5 when installed in ducting) for reliable operation in demanding environments.

Equipped with a thermal fuse overheating protection device and adjustable speed control via potentiometer (0–10V) or two-speed switch, the Vortice Lineo 100 ES is built for flexibility and longevity. With a maximum airflow of 305 m³/h and whisper-quiet operation, this fan is the ideal choice for applications requiring efficient, safe, and continuous ventilation.

Features

  • Energy Efficient EC Motor - Brushless design with low power consumption (max 20W) and thermal protection.
  • Compact 100mm Diameter - Perfect for space-saving installations in ducts or confined areas.
  • Durable Fire-Resistant Housing - E2 class resin compliant with ISO EN 11925-2:2010.
  • High Water Resistance - IP45 rating (IPX5 in duct installations) for demanding environments.
  • Adjustable Speed Control - Potentiometer (0–10V) or two-speed switch for flexible airflow management.
  • Low Noise Levels - Quiet operation with sound pressure as low as 15 dB(A) at 3m.
  • Thermal Safety Protection - Integrated fuse to prevent overheating and damage.

Specifications

Parameter Value
Nominal Diameter 100mm
Max Airflow 305 m³/h
Voltage 220-240V
Frequency 50Hz
Max Power 20W
Max Current 0.20A
Insulation Class Class II
IP Rating IP45 (IPX5 in duct)
Max Ambient Temperature 60°C
Weight 2.3 kg
RPM 2220 (max)
Noise Level at 3m 31.8 dB(A) at max speed
Housing Material Fire-resistant plastic resin (E2 class)

In The Box

  • [1] x Vortice Lineo Inline Mixed Flow EC Fan - Lineo 100 ES | 100MM (4" Inch)
