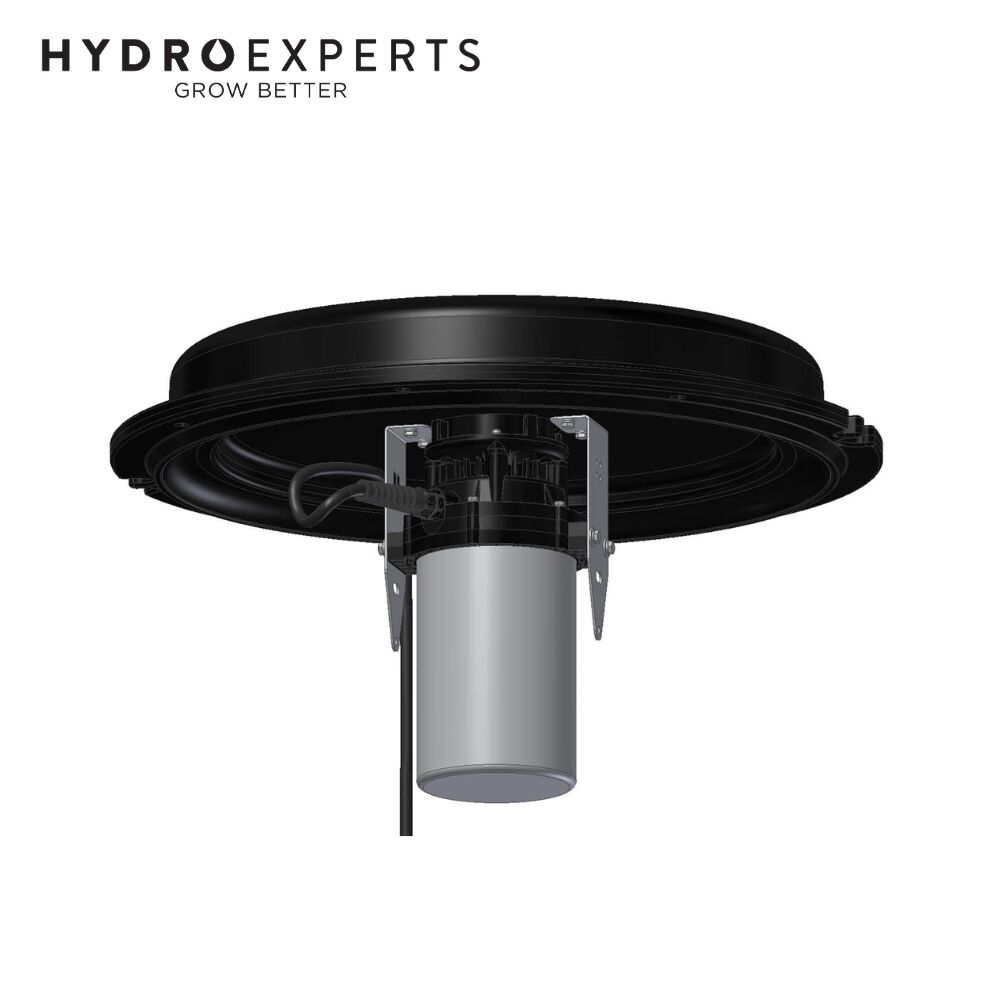

Otterbine Fractional Series All-in-One Small Pond Aerator w/ Deluxe LED - 30M Cable | 1/2 HP

Ideal for ponds up to approximately 3000 m2

SKU: PND-ACES61004

Otterbine

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Freight applies

*This item is bullky so freight applies.

Calculate shipping

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

The Otterbine Fractional Aerator Deluxe LED is a versatile 1/2HP pond aerator and fountain system designed to combine effective water circulation, aeration, decorative fountain displays and LED illumination in one compact package. Ideal for small ponds, dams and water features, the Fractional Series gives property owners and professional installers multiple ways to improve water movement and presentation.

Its key advantage is the flexible 5-in-1 configuration. The unit can be configured with four interchangeable fountain patterns - Gemini, High Volume, Phoenix and Rocket - or converted into a Horizontal Mixer. This makes the system suitable for applications where decorative surface aeration, water circulation or a combination of both is required. Units are supplied in the Gemini configuration as standard.

For Australian 230V / 50Hz applications, performance varies according to the selected pattern. The Gemini configuration delivers up to 115m3/hr water flow with a spray approximately 1.2m high and 1.8m in diameter, while the High Volume pattern delivers up to 99m3/hr. Phoenix and Rocket provide taller, more concentrated displays, with the Rocket reaching approximately 3m in height.

The Deluxe package incorporates two 6.5W LED pond lights with clear lenses, producing a total lamp wattage of 13W. The lighting system operates at 12VDC and is complemented by a dedicated Mini Power Control Center with timer, transformer and photocell for convenient automatic operation.

The aerator also includes its own Mini Power Control Center with GFCI and timer, along with a debris screen to help protect the system during operation. This product variant is listed with a 30m cable, making it suitable for installations requiring additional distance between the pond system and its electrical connection point.

With multiple fountain patterns, horizontal mixing capability, LED illumination and proven Otterbine engineering, the Otterbine Fractional Aerator Deluxe LED 30m provides a flexible solution for pond aeration, circulation and decorative water displays.

Features

1/2HP Aerator: Compact Fractional Series system designed for small ponds and water features.
5-in-1 Configuration: Four interchangeable fountain patterns plus Horizontal Mixer operation.
Four Fountain Patterns: Includes Gemini, High Volume, Phoenix and Rocket.
Horizontal Mixer Mode: Allows the unit to be configured for horizontal water circulation.
Gemini Standard Setup: The aerator is supplied in Gemini configuration as standard.
High Water Circulation: Gemini configuration delivers up to 115m3/hr at 230V / 50Hz.
Dual LED Lighting: Includes two 6.5W LED lights with clear lenses.
12VDC Lighting: LED system has a combined lamp output of 13W.
Automatic Light Control: Lighting control centre incorporates a timer, transformer and photocell.
Aerator Control Centre: Includes Mini Power Control Center with GFCI and timer.
Debris Screen: Helps protect the aerator during pond operation.
30m Cable Configuration: Designed for installations requiring a longer cable run.
Two Year Warranty: Supported by a two year manufacturer warranty.

Specifications

Specification	Gemini	High Volume	Phoenix	Rocket	Mixer
Spray Height - 50Hz	1.2m	1m	Upper: 2.8m Lower: 1m	3m	N/A
Spray Diameter - 50Hz	1.8m	1.4m	Upper: 30cm Lower: 3m	40cm	N/A
Water Flow - 50Hz	115m3/hr	99m3/hr	44m3/hr	41m3/hr	N/A
Oxygen Transfer	1kg/HP/hr	0.91kg/HP/hr	0.36kg/HP/hr	0.36kg/HP/hr	N/A
Voltage / Phase / Amp	230V / 1 / 2.8A	230V / 1 / 2.8A	230V / 1 / 2.6A	230V / 1 / 2.6A	230V / 1 / 2.8A
Motor Speed	2750rpm	2750rpm	2750rpm	2750rpm	2750rpm

In The Box

[1] x Otterbine Fractional Series All-in-One Small Pond Aerator w/ Deluxe LED - 30M Cable | 1/2 HP

Installation: All electrical work must be performed by a qualified licensed electrician conforming to applicable electrical safety codes; arrange installation of a suitable GFCI and timer (timer and plug not included).
Power Cable: Bury or trench the power cable in conduit to the pond edge, then connect the plug to the unit using the quick disconnect.
Floating and Mooring: Float the unit in the water and anchor or moor into position - spray pattern configurations require two mooring points, while the Mixer/Circulator configuration requires three points; use of a boat may be required depending on pond size.
Pattern Conversion: To change spray patterns, follow the instructions in the owner's manual; all five configurations can be swapped in minutes by one person.
Minimum Operating Depth: Ensure the pond depth at the installation point is at least 41cm before operating the unit.
Maintenance: No preventative or annual maintenance is required; if the intake screen becomes blocked, turn the unit off, unplug it from the power source, and remove debris by hand or with a wire brush.
