Otterbine Fractional Series All-in-One Small Pond Aerator w/ Deluxe LED - 25M Cable | 1/2 HP

Ideal for ponds up to approximately 3000 m²

SKU: PND-ACES61003

Otterbine Fractional Series All-in-One Small Pond Aerator w/ Deluxe LED - 25M Cable | 1/2 HP

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Freight applies

*This item is bullky so freight applies.

Calculate shipping

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

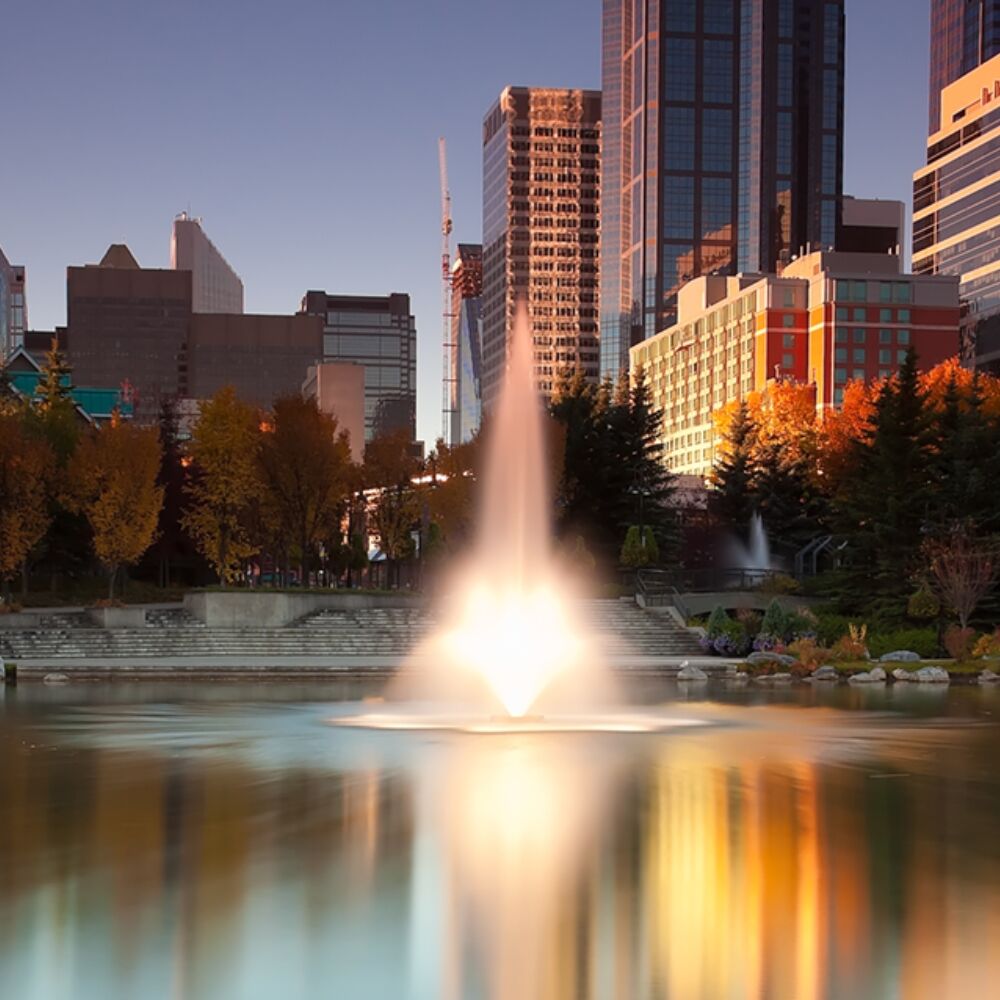

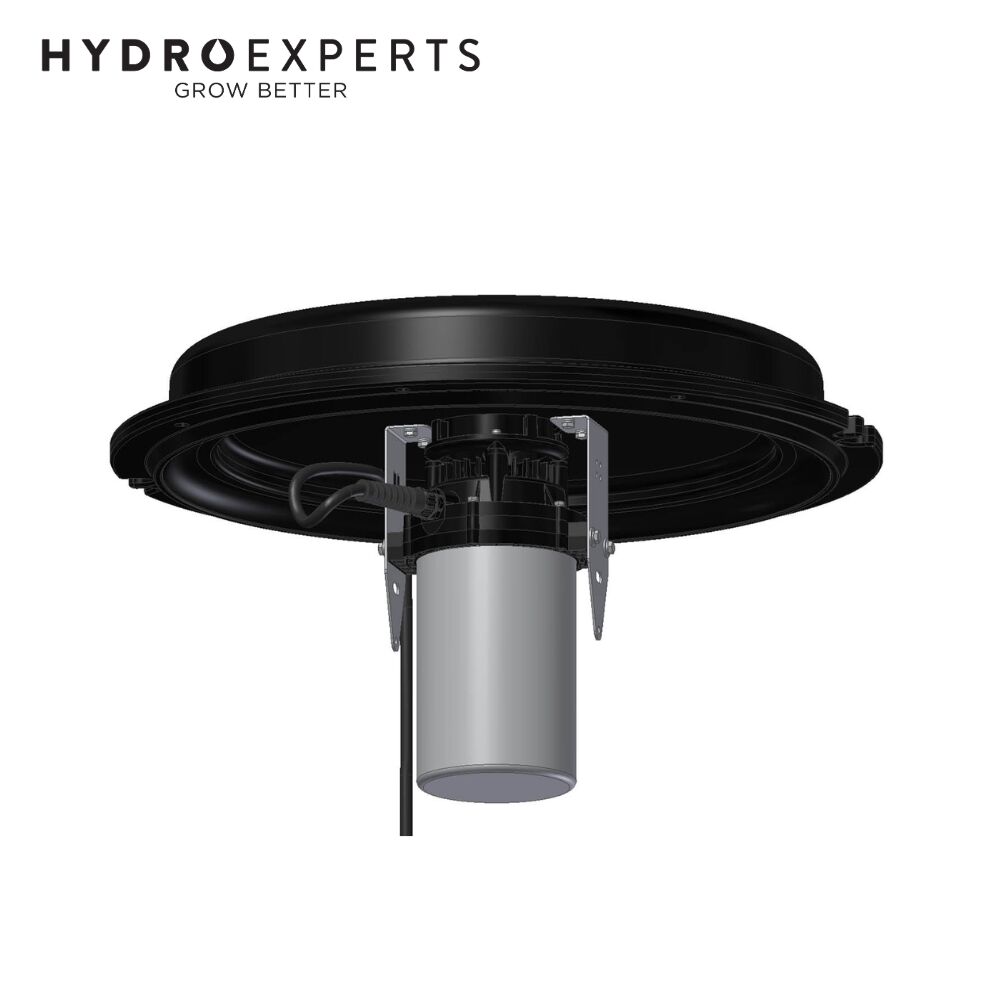

The Otterbine Fractional Aerator Deluxe LED is a versatile 1/2HP aeration and fountain system designed for small ponds, dams and decorative water features. Combining effective pond aeration, water circulation, attractive fountain displays and LED illumination, this Deluxe package provides multiple water management and display options from a single compact system.

A major advantage of the Otterbine Fractional Series Deluxe is its 5-in-1 interchangeable configuration. It includes four fountain spray patterns - High Volume, Gemini, Phoenix and Rocket - plus a Horizontal Mixer configuration. This allows the system to operate as either a surface spray fountain or horizontal water mixer depending on the requirements of the pond. Units are supplied in the Gemini configuration as standard.

The Deluxe package also includes a two light 6.5W LED set with clear lenses, providing attractive illumination of the fountain display after dark. A dedicated Mini Power Control Center for the lighting system includes a timer, transformer and photocell, allowing convenient control of the LED lights.

For system management, the aerator includes a Mini Power Control Center with GFCI and timer. A debris screen is also included to help protect the unit during operation. The 1/2HP system is designed to provide an effective balance between aeration, circulation and visual appeal for smaller water bodies.

This Hydro Experts configuration is supplied with a 25m cable. The original manufacturer package specifies that cable is normally ordered separately and that separate cable runs are required for the aerator and lighting system. When purchasing this 25m cable configuration, confirm the supplied cable quantities and installation requirements for both the aerator and LED lighting before installation.

With four decorative spray patterns, horizontal mixing capability and integrated LED pond fountain lighting, the Otterbine Fractional Aerator Deluxe LED is an excellent choice for users looking to improve pond circulation and presentation with one adaptable system.

Features

1/2HP Fractional Aerator: Compact aeration and fountain system designed for smaller ponds and water features.
5-in-1 System: Includes four interchangeable fountain patterns plus a Horizontal Mixer configuration.
Four Spray Patterns: Select from High Volume, Gemini, Phoenix and Rocket fountain displays.
Horizontal Mixer: Converts from a surface spray system to a horizontal mixer for water circulation applications.
Gemini Standard Configuration: All units are shipped configured with the Gemini spray pattern.
Deluxe LED Lighting: Includes two 6.5W LED lights with clear lenses for illuminated fountain displays.
Lighting Control Centre: Includes an additional Mini Power Control Center with timer, transformer and photocell.
Aerator Control Centre: Mini Power Control Center includes GFCI protection and timer functionality.
Debris Screen: Helps protect the aerator from larger debris during operation.
25m Cable Configuration: This Hydro Experts product configuration is listed with 25m cable.
115V or 230V Options: Fractional Series systems are available in different voltage configurations.
Two Year Warranty: Backed by a two year manufacturer warranty.
Quick Disconnect Option: Quick disconnect configuration may be available at an additional charge.

Specifications

Specification	Details
Brand	Otterbine
Series	Fractional Series Deluxe
Product Type	Pond Aerator, Fountain and Horizontal Mixer
Motor Power	1/2HP
Configurations	5
Fountain Patterns	High Volume, Gemini, Phoenix and Rocket
Mixer Configuration	Horizontal Mixer
Standard Shipped Configuration	Gemini
LED Lights	2
LED Power	6.5W Each
LED Lens	Clear
Aerator Control	Mini Power Control Center with GFCI and Timer
Lighting Control	Mini Power Control Center with Timer, Transformer and Photocell
Debris Screen	Included
Available Voltage	115V or 230V
Listed Cable Length	25m
Warranty	2 Years
Quick Disconnect	Optional at Additional Charge

In The Box

[1] x Otterbine Fractional Series All-in-One Small Pond Aerator w/ Deluxe LED - 25M Cable | 1/2 HP

1) Install Electrical Supply

A qualified electrician is required to prepare a suitable power connection for the motor with a suitable GFCI and timer (if required).

2) Lay Power Cable

Bury/trench power in conduit to the pond edge; connect plug to unit.

3) Float System in Water & Anchor/Moor into Place

Depending on the method selected, the use of a boat may be required. The Mixer/Circulator should be installed at three points, while all spray patterns will only require two.
