Lumatek Digital Control Panel PLUS 2.0 - HID + LED | Dual Signal Lighting Controller

SKU: CTRL75903



Free Shipping

Click & Collect Free

Free pick up at store


If cart total is less than $499*

Freight applies

If cart total is $499* & above


*excluding bulky items

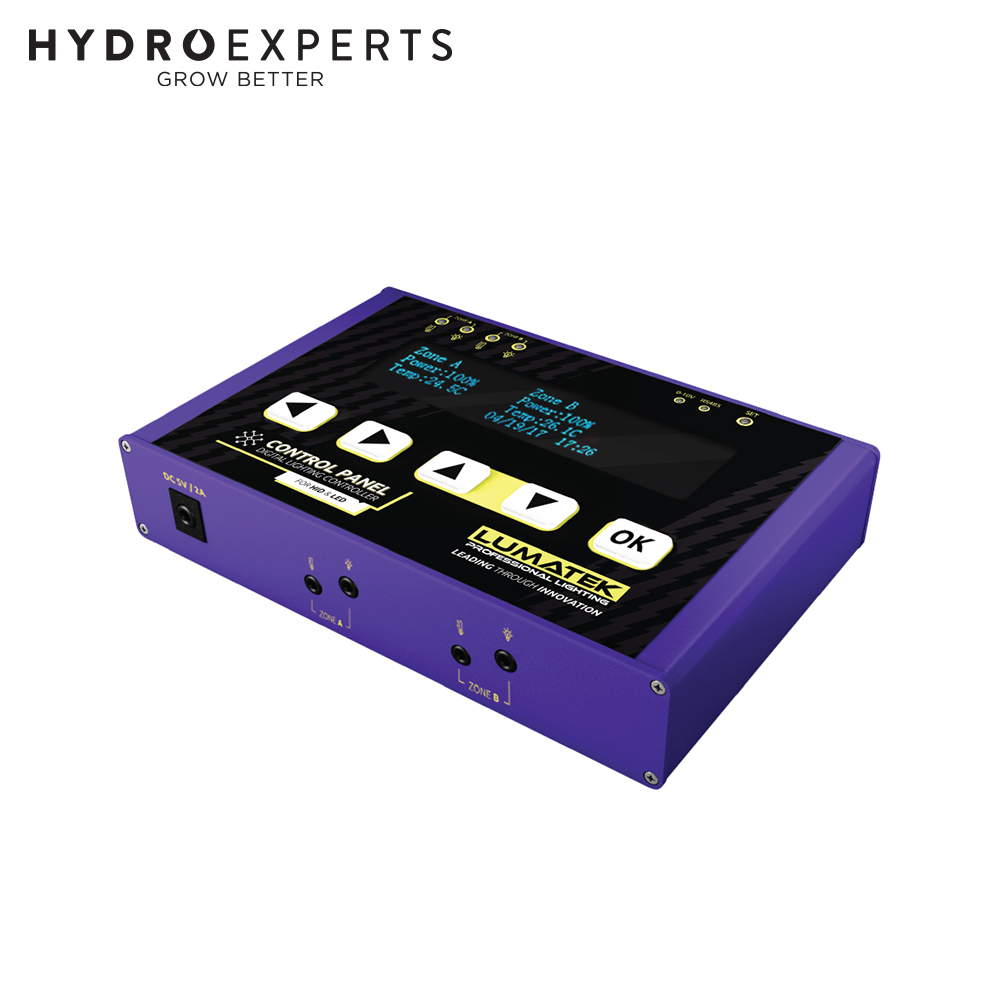

The LUMATEK Control Panel PLUS 2.0 (HID+LED) is a dual signal digital lighting controller that offers precise external control of your Lumatek lighting fixtures, drivers and ballasts. Using innovative technology, this controller smartly monitors your grow room temperatures, light timing & intensity automation, safety-controlled dimming and switching On/Off. Simply connect it to your Lumatek Controllable Fixtures, Drivers or Ballasts and easily regulate your grow room environment.

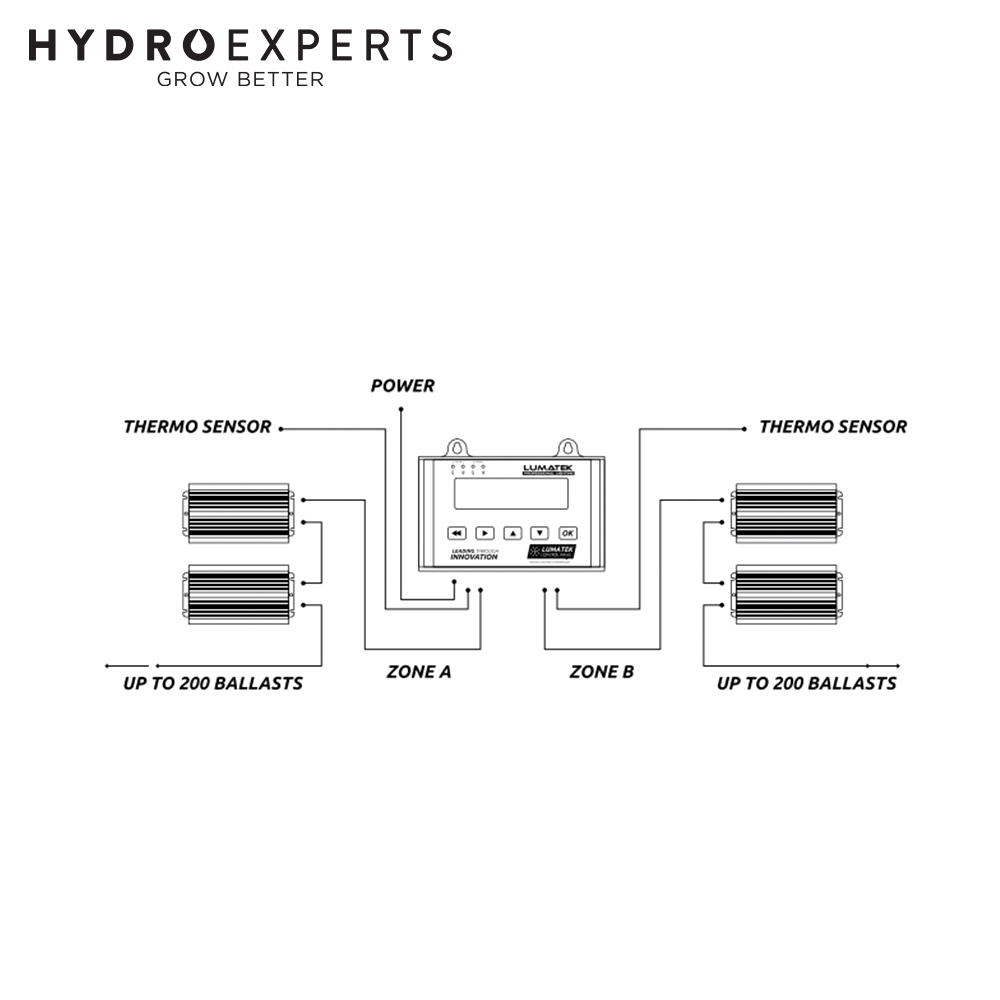

The Lumatek Control Panel Plus 2.0 is a dual signal twin channel digital lighting controller with each of the two channels (Zones) capable of controlling up to 200 Lumatek controllable HID fixtures or ballasts with a digital RS485 signal or up to 50 LED drivers with the analog 0-10V signal. It is possible to use each Zone to control fixtures in two independent separate rooms or to control up to 400 fixtures in one room with two different light source types.

Each Channel (Zone) can control same-powered ballasts/drivers; Zone A can control the same-powered ballasts/drivers as Zone B or Zone B can be set to control different powered ballasts/drivers eg: Zone A can be set to control 600W LED fixtures and Zone B set to control 600W or 315W HID ballasts.


  • Product Code: LUMM0002
  • Power: Adaptor 100 - 240V AC 50/60Hz – DC 5V/2A
  • Match HID Ballast: 315W, 600W, 630W, 1000W
  • Match LED Driver: 90W, 465W, 600W, 1000W
  • Power Dimming Range: 10% - 115%
  • Power Regulation Accuracy: 1%
  • Temperature-controlled Safety Dimming range: 0ºC-40ºC
  • Temperature-controlled Safety Switching range: 10ºC-50ºC
  • Sunrise and Sunset Duration: 0-30 min
  • Dimensions: 125mm x 80mm x 25mm
  • Control panel for up to 400 HID ballasts or 100 LED drivers
  • Two channels (Zone A & Zone B)
  • Max number of ballasts/drivers per Zone: 200 (RS485) HID or 50 (0-10V) LED
  • Total number of ballast/drivers per controller: 400 (RS485) HID or 100 (0-10V) LED
  • 24 Hr Light timing & switching
  • Temperature sensor monitoring and control
  • Dimming control (1% increments)
  • Safety and temperature control automation
  • Simulate sunrise and sunset to lessen plant stress
  • Light intensity automation

In The Box

  • [​1] x Lumatek Control Panel Plus 2.0
  • [1] x Power adaptor and cable
  • [2] x Temperature sensor 5m cable
  • [2] x HID control link cable 5m
  • [2] x LED control link cable
  • Innovation
    • Connectable with Lumatek Controllable HID ballasts & fixtures; 315W, 600W, 630W & 1000W
    • Connectable with Lumatek Controllable LED drivers & fixtures; 90W, 465W, 600W & 1000W.
    • Dual signal RS485 digital for HID and 0-10V analog protocol for LED.
  • Intelligence
    • Automate switching, timing, dimming and simulate sunrise and sunset periods.
    • Temperature-control dimming & switching for safety control
    • Automate light intensity and PPFD
  • Horticulture Solutions
    • Control up to 400 HID ballasts or fixtures (200 ballasts per channel – Zone A & B)
    • Control up to 100 LED drivers or fixtures (50 drivers per channel – Zone A & B)
