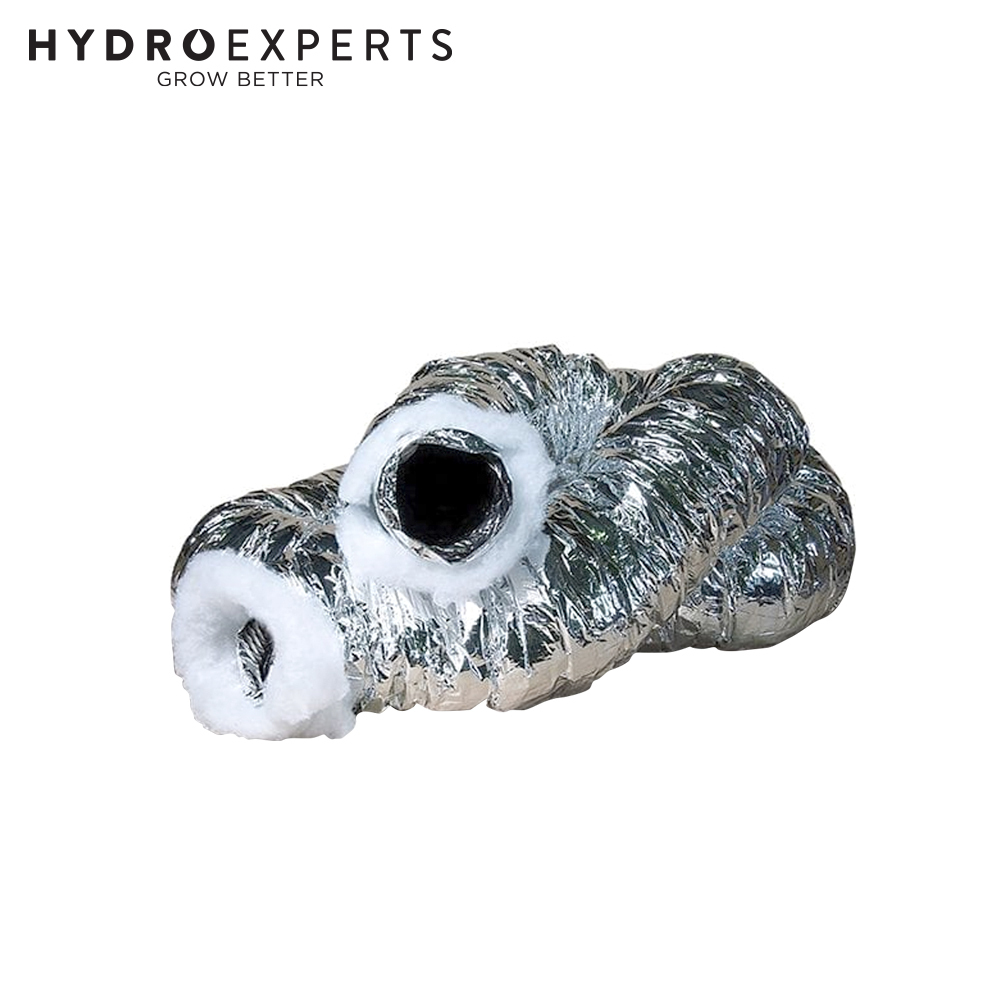

Insulated Flexible Acoustic Duct - 305MM (12" Inch ) x 6M | R1.0 | 50MM Insulation

#SKU: DUCT25105
Brand:
$109.95


Calculate Shipping


Description



The layers are bonded with a fire retardant adhesive to ensure long life in all ambient conditions. The insulation is a polyester thermal blanket manufactured to rigid standards.



Features



  • Metalized Inner Core
  • Polyester Insulation
  • Metalized Outer Fire Jacket
  • Operating Temperature: -20°C to +80°C
  • Operation Pressure: -190pa to +1200pa
  • General Use: Heating and cooling
  • Domestic and commercial systems





Specifications



  • PRODUCT: R0.6 Metalised Sleeve, Polyester Flexible Duct (3-Zero).
  • CONSTRUCTION: Black Inner Core with Metalised Outer surface multi-layered construction containing high level grade Flame Retardant Water based adhesive with high tensile wire helix encapsulated.
  • METALISED OUTER SLEEVE: Multi-layered construction (Metalised Outer Layer) containing high quality grade flame retardant adhesive.
  • INSULATION TYPE: Polyester Insulation Blanket to achieve thermal rating of R0.6
  • LENGTH: 6 Metre lengths
  • OPERATING PRESSURE RANGE: 1000 Pa positive, 200 Pa negative
  • OPERATING TEMPERATURE RANGE: -10C TO +80C





  • Metalized Inner Core
  • Polyester Insulation
  • Metalized Outer Fire Jacket
  • Operating Temperature: -20°C to +80°C
  • Operation Pressure: -190pa to +1200pa
  • General Use: Heating and cooling
  • Domestic and commercial systems
  • [1] x Insulated Flexible Acoustic Duct - 305MM (12" Inch ) x 6M | R1.0 | 50MM Insulation/li>
  • PRODUCT: R0.6 Metalised Sleeve, Polyester Flexible Duct (3-Zero).
  • CONSTRUCTION: Black Inner Core with Metalised Outer surface multi-layered construction containing high level grade Flame Retardant Water based adhesive with high tensile wire helix encapsulated.
  • METALISED OUTER SLEEVE: Multi-layered construction (Metalised Outer Layer) containing high quality grade flame retardant adhesive.
  • INSULATION TYPE: Polyester Insulation Blanket to achieve thermal rating of R0.6
  • LENGTH: 6 Metre lengths
  • OPERATING PRESSURE RANGE: 1000 Pa positive, 200 Pa negative
  • OPERATING TEMPERATURE RANGE: -10C TO +80C
SKU DUCT25105
Barcode # Does not apply
Brand Generic
Shipping Weight 3.5800kg
Shipping Width 0.700m
Shipping Height 0.400m
Shipping Length 0.400m
Shipping Cubic 0.112000000m3
Unit Of Measure ea
