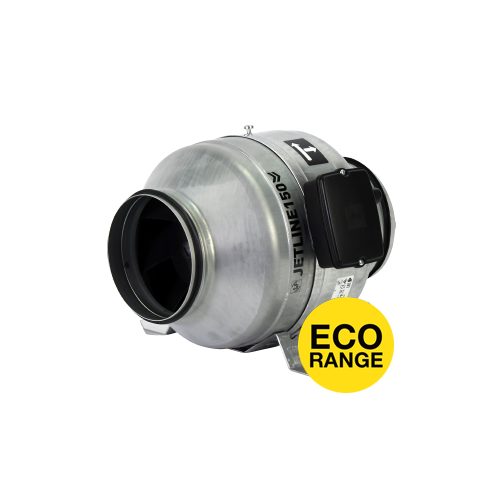

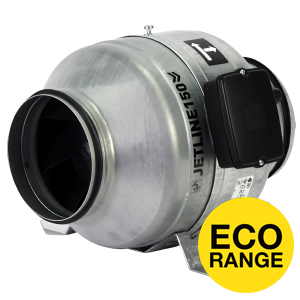

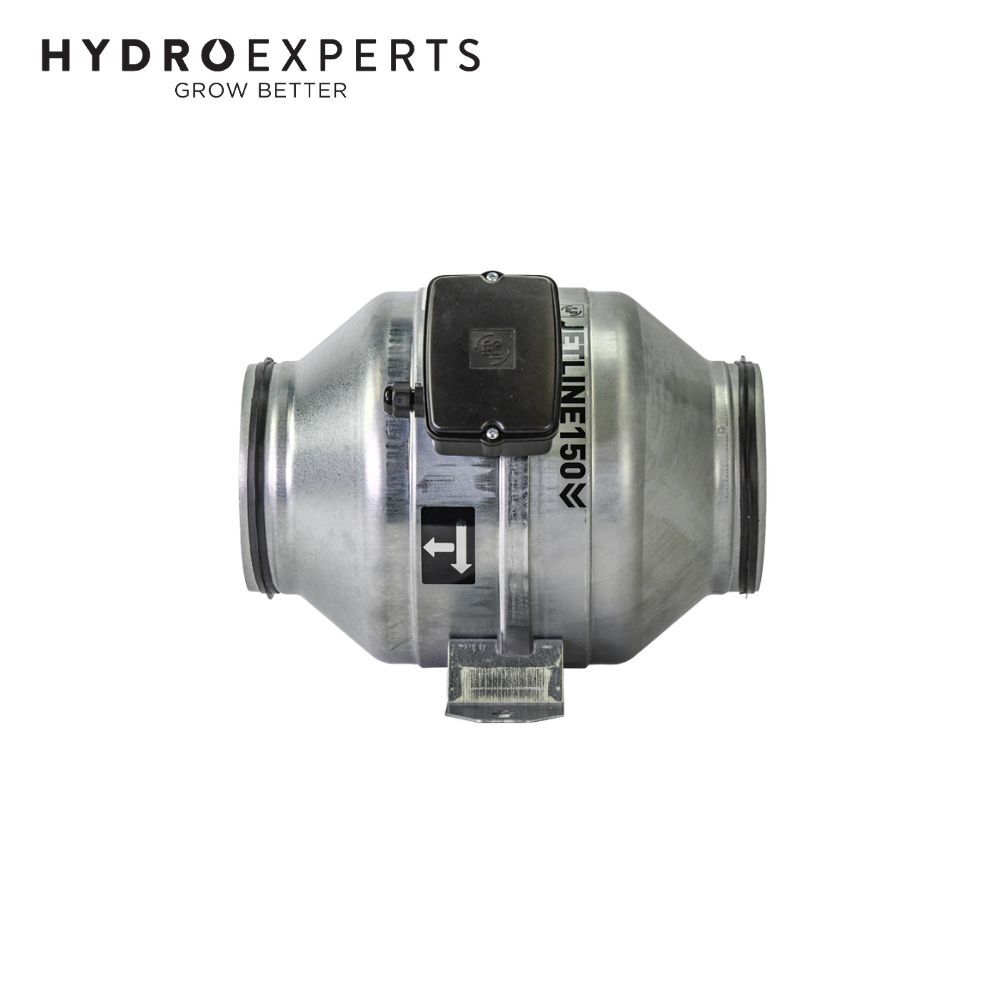

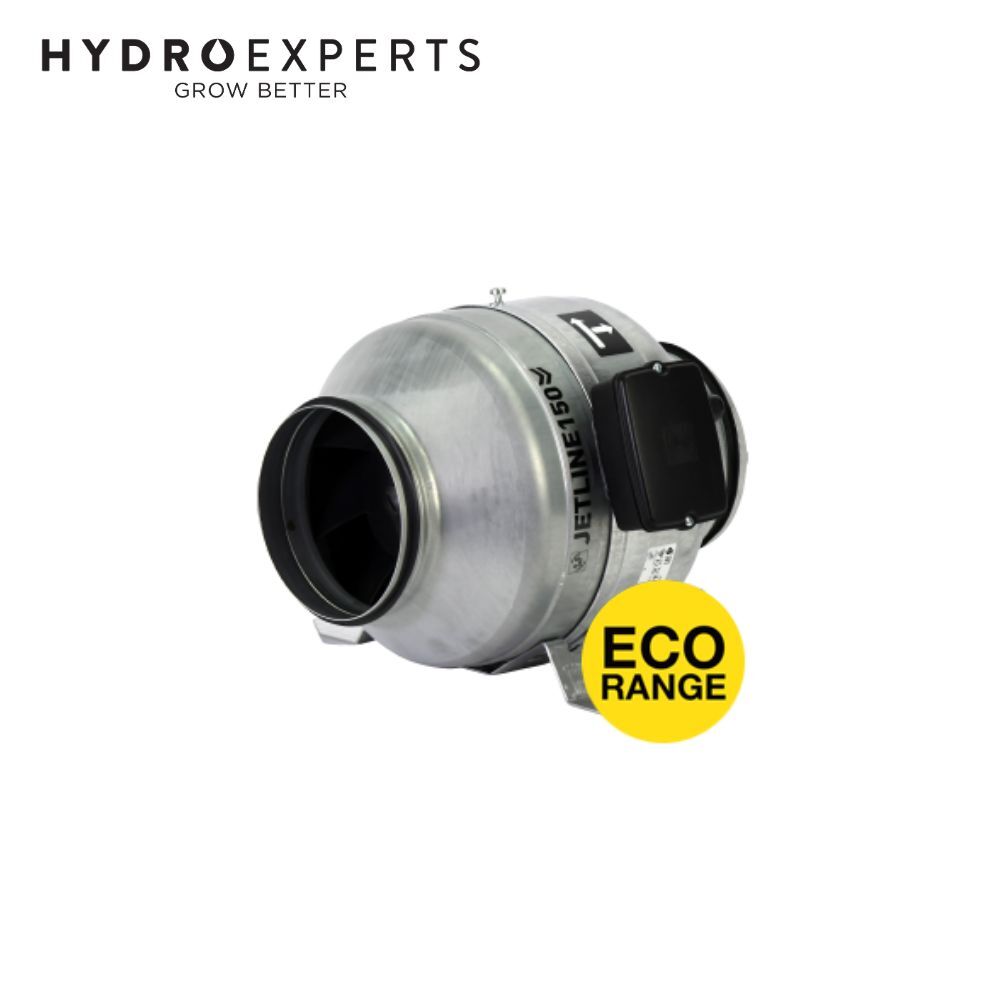

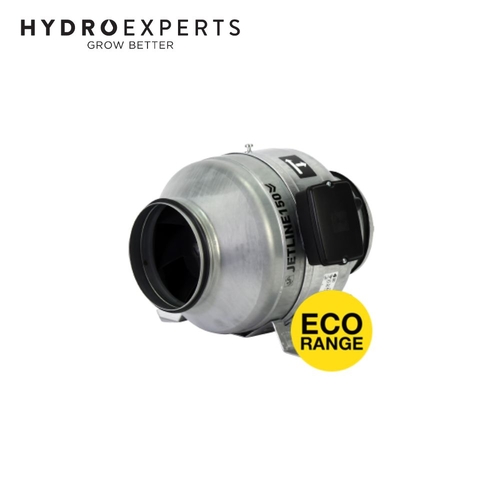

Fantech Jetline Eco In-line Duct Mounted EC Exhuast Fan - 250MM (10" Inch) | 160W | 1270 M³/H | IP44

SKU: XFANS52505
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Not Available

In-store pickup not available.

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Jetline Eco 250MM In-line Duct Mounted EC Exhaust Fan is built for powerful, efficient ventilation across residential, commercial, and industrial applications. Delivering an impressive 1270 M³/H airflow, this model uses advanced EC motor technology to reduce energy consumption without compromising performance.

Its galvanised steel casing offers durability, while the silent-block motor mounting significantly reduces vibration and operational noise. The patented centrifugal impeller ensures consistent, high performance airflow even in high resistance duct systems.

Equipped with 0-10V analogue speed control and an on-board potentiometer, the Jetline Eco provides full flexibility for customised airflow. Installation is simple with quick fit galvanised steel brackets and rubber gaskets for secure, airtight duct connections. Designed for versatility, it can be mounted in any orientation.

Note: Hard wire installation by a licensed electrician is required.

Features

  • High Capacity Airflow - 1270 M³/H for demanding ventilation needs
  • Energy Efficient EC Motor - Maximises airflow with reduced power draw
  • Speed Controllable - 0-10V analogue input with on-board potentiometer
  • Noise Reduction - Silent-block motor mounting minimises vibration and sound
  • Durable Galvanised Steel Casing - Built for long service life
  • Patented Centrifugal Impeller - Maintains consistent airflow efficiency
  • Quick Installation - Supplied with galvanised steel mounting brackets
  • Improved Sealing - Rubber gaskets for airtight duct connections
  • Flexible Mounting - Can be installed in any orientation

Specifications

  • Model No: JETLINE-250ECO
  • Air Flow: 1270 M³/H
  • L/Sec: 353
  • Fan Speed: 45 Rev/Sec
  • Noise Level: 53 dB(A) @ 3M
  • Power Consumption: 160W
  • Amps: 0.7
  • Voltage: 220-240V
  • IP Rating: IP44
  • Flange Size: 250MM (10" Inch)
  • Weight: 5.8 KG

In The Box

  • [1] x Fantech Jetline Eco In-line Duct Mounted Fan - 250MM (10" Inch) | 160W | 1270 M³/H
