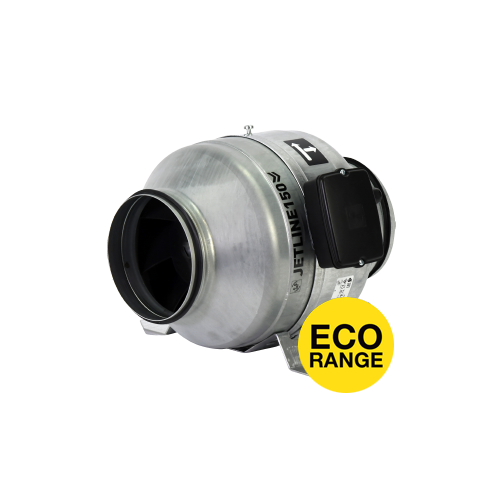

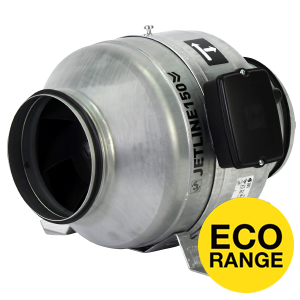

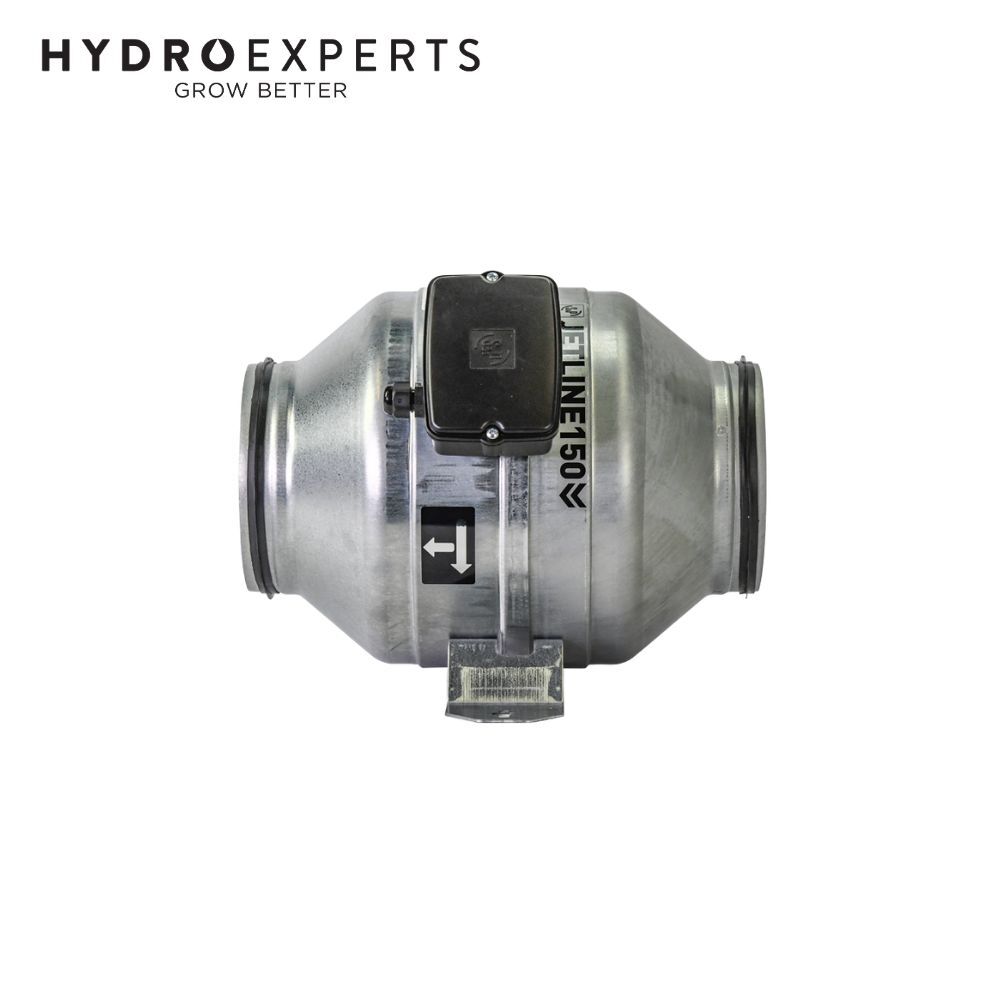

Fantech Jetline Eco In-line Duct Mounted EC Exhuast Fan - 200MM (8" Inch) | 125W | 1050 M³/H | IP44

SKU: XFANS52504
|

IN STOCK

FREE SHIPPING

Qty:

Pick up at store Not Available

In-store pickup not available.

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Jetline Eco 200MM In-line Duct Mounted EC Exhaust Fan is a high-capacity ventilation solution designed for residential, commercial and industrial applications. Featuring advanced EC motor technology, it delivers an impressive 1050 M³/H airflow while minimising energy consumption.

Built with a galvanised steel outer casing, the Jetline Eco provides exceptional durability and long service life. The silent-block motor mounting reduces vibration and noise, ensuring quiet performance even in demanding environments. Its patented centrifugal impeller ensures maximum efficiency and consistent airflow through ducted systems.

Speed control is simple with the 0-10V analogue input and on-board potentiometer, giving installers and users full flexibility. The fan includes quick fit galvanised steel brackets and rubber gaskets for secure, airtight duct connections. Mountable in any orientation, this model is ideal for high-performance ventilation requirements.

Note: Hard wire installation by a licensed electrician is required.

Features

  • Powerful Airflow - 1050 M³/H for medium to large areas
  • Energy Efficient EC Motor - Delivers high output with reduced power consumption
  • Speed Controllable - 0-10V analogue input and on-board potentiometer
  • Quiet Performance - Silent-block motor mounting minimises vibration and noise
  • Durable Galvanised Steel Casing - Long-lasting construction for tough conditions
  • Patented Centrifugal Impeller - Ensures consistent airflow performance
  • Quick Installation - Supplied with galvanised steel mounting brackets
  • Improved Duct Seal - Rubber gaskets ensure airtight connection
  • Flexible Mounting - Can be installed in any position

Specifications

  • Model No: JETLINE-200ECO
  • Air Flow: 1050 M³/H
  • L/Sec: 292
  • Fan Speed: 44 Rev/Sec
  • Noise Level: 51 dB(A) @ 3M
  • Power Consumption: 125W
  • Amps: 0.5
  • Voltage: 220-240V
  • IP Rating: IP44
  • Flange Size: 200MM (8" Inch)
  • Weight: 4.7 KG

In The Box

  • [1] x Fantech Jetline Eco In-line Duct Mounted EC Fan - 200MM (8" Inch) | 125W | 1050 M³/H | IP44
