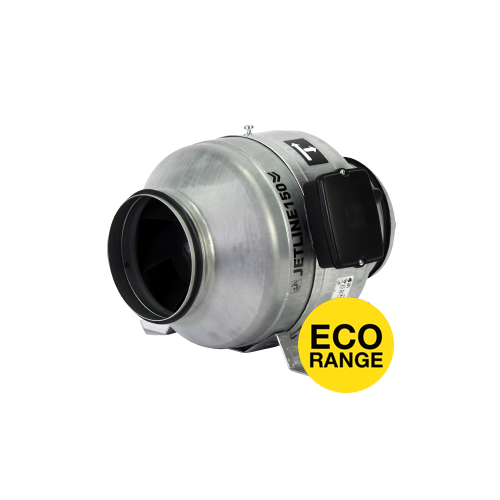

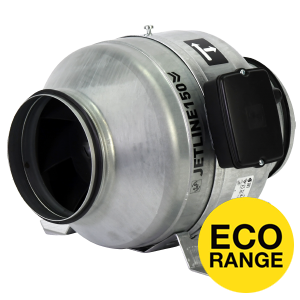

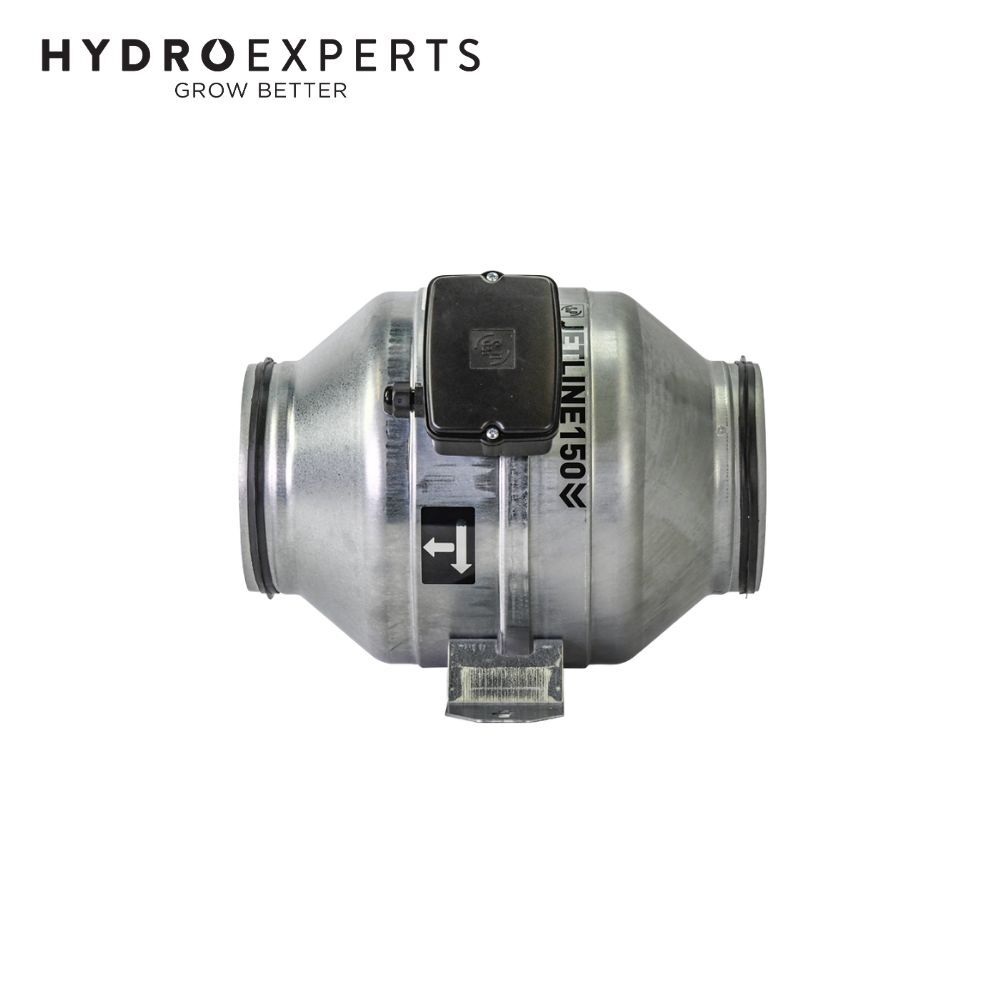

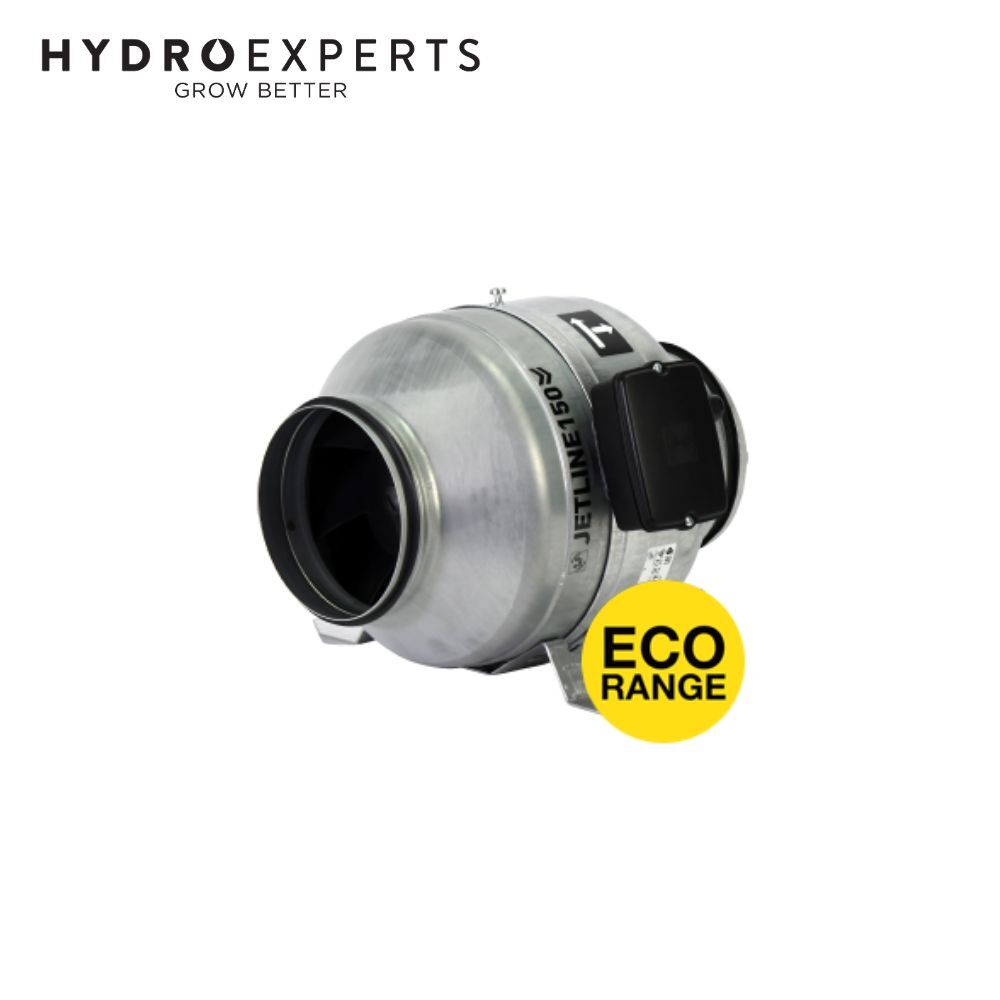

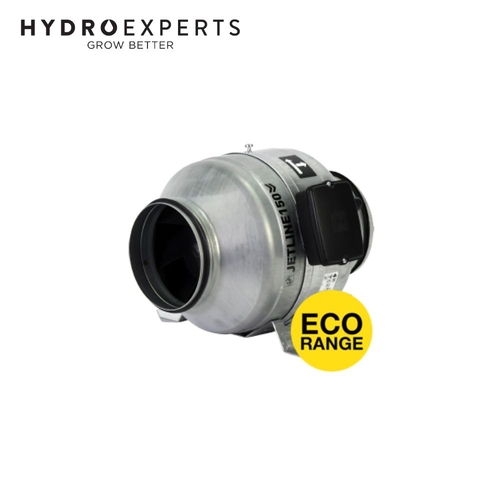

Fantech Jetline Eco In-line Duct Mounted EC Exhaust Fan - 315MM (12" Inch) | 215W | 1570 M³/H | IP44

SKU: XFANS52506
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Not Available

In-store pickup not available.

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Jetline Eco 315MM In-line Duct Mounted EC Exhaust Fan is the largest in the Jetline Eco range, designed to deliver powerful ventilation for large residential areas, commercial buildings, and industrial projects. With an impressive 1570 M³/H airflow, this fan uses advanced EC motor technology to ensure energy efficiency while maintaining high capacity performance.

Built with a robust galvanised steel outer casing, the Jetline Eco 315MM is made for durability in demanding environments. Its silent-block motor mounting significantly reduces vibration and noise, while the patented centrifugal impeller ensures consistent, efficient airflow even through long duct runs.

Featuring 0-10V analogue speed control and an on-board potentiometer, the fan allows full flexibility to match varying ventilation needs. Quick fit mounting brackets and rubber gaskets make installation simple, secure, and airtight. Suitable for mounting in any orientation, this unit is the ideal solution for large-scale ventilation.

Note: Hard wire installation by a licensed electrician is required.

Features

  • High Airflow Output - 1570 M³/H for large scale ventilation
  • Energy Efficient EC Motor - Reduces running costs with reliable power
  • Speed Controllable - 0-10V analogue input with on-board potentiometer
  • Low Noise Design - Silent-block motor mounting minimises sound and vibration
  • Durable Casing - Manufactured from galvanised steel for long service life
  • Patented Centrifugal Impeller - Ensures consistent and efficient airflow
  • Quick Fit Mounting Brackets - Easy installation with galvanised steel hardware
  • Improved Seal - Rubber gaskets for airtight duct connections
  • Flexible Orientation - Can be mounted in any position

Specifications

  • Model No: JETLINE-315ECO
  • Air Flow: 1570 M³/H
  • L/Sec: 436
  • Fan Speed: 43 Rev/Sec
  • Noise Level: 52 dB(A) @ 3M
  • Power Consumption: 215W
  • Amps: 0.9
  • Voltage: 220-240V
  • IP Rating: IP44
  • Flange Size: 315MM (12" Inch)
  • Weight: 9.6 KG

In The Box

  • [1] x Fantech Jetline Eco In-line Duct Mounted EC Fan - 315MM (12" Inch) | 215W | 1570 M³/H | IP44
