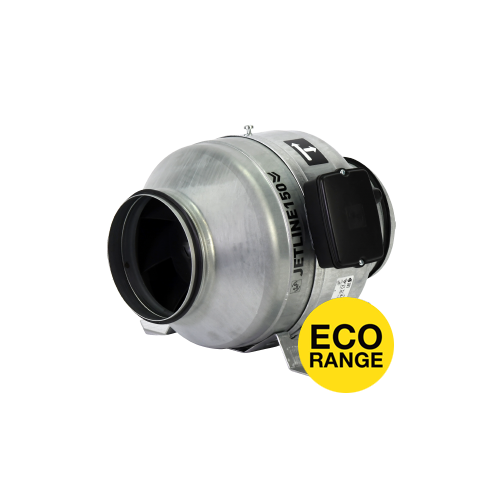

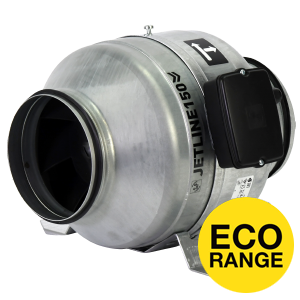

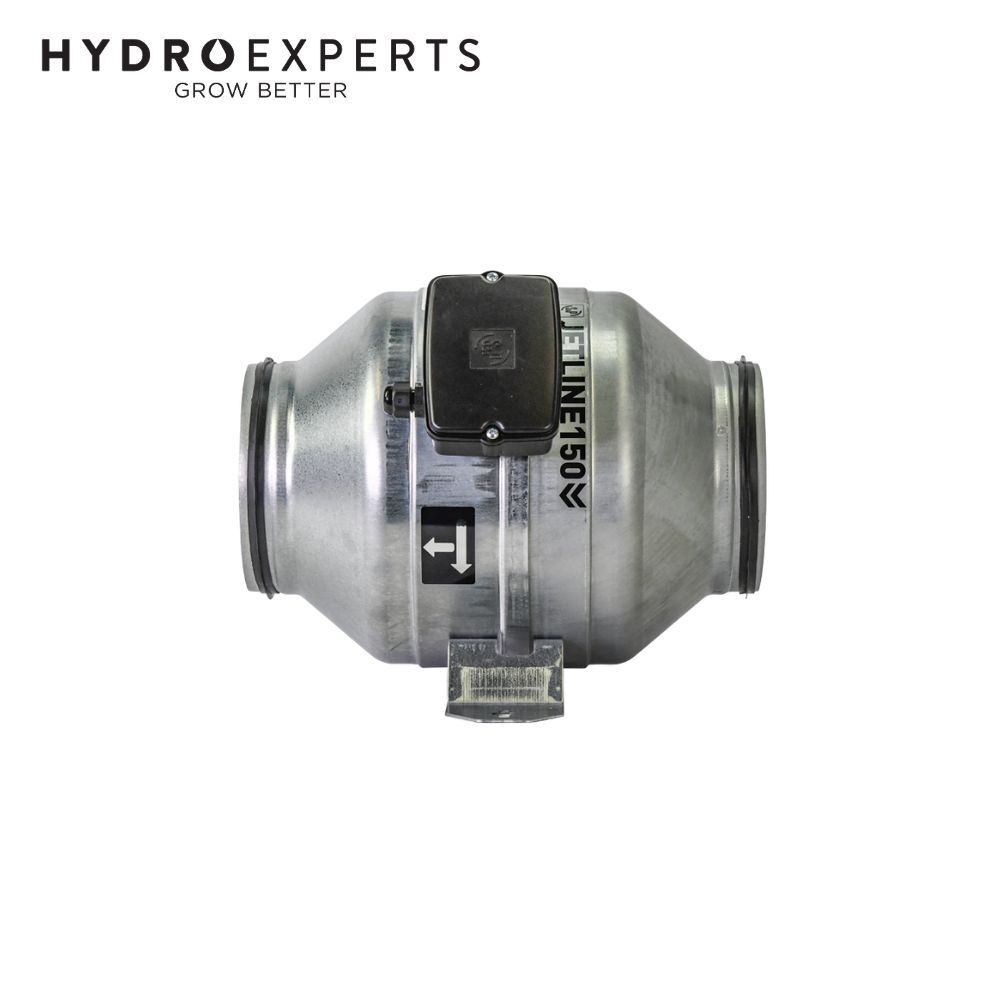

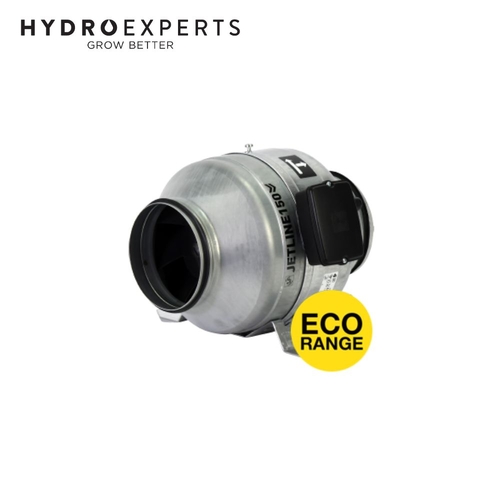

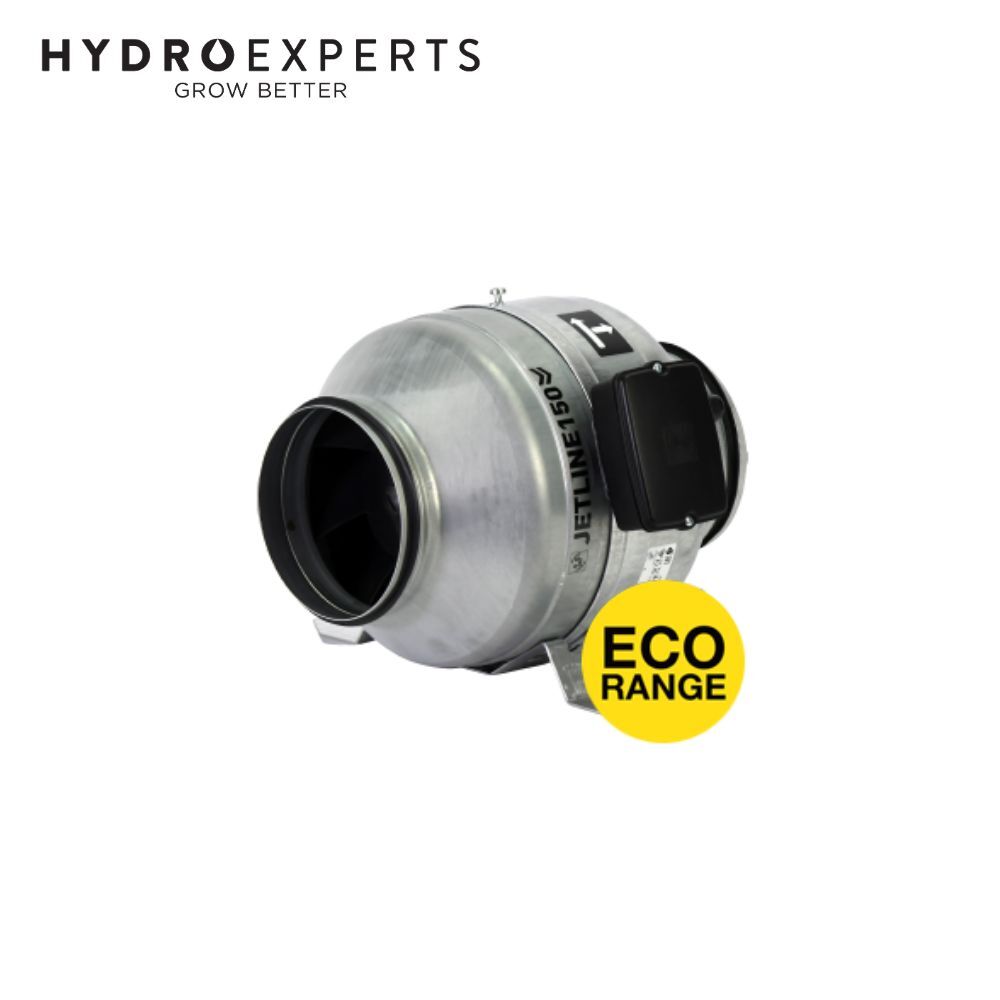

Fantech Jetline Eco In-line Duct Mounted EC Exhaust Fan - 150MM (6" Inch) | 83W | 680 M³/H | IP44

SKU: XFANS52503
|

IN STOCK

FREE SHIPPING

Qty:

Pick up at store Not Available

In-store pickup not available.

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Jetline Eco 150MM In-line Duct Mounted EC Exhaust Fan is designed for high performance ventilation in both residential and commercial applications. With a powerful 680 M³/H airflow and advanced EC motor technology, it provides exceptional air movement while maintaining energy efficiency.

Its patented centrifugal impeller ensures reliable performance across a wide range of ducted installations, while the silent-block motor mounting reduces vibration and noise for quiet operation. The galvanised steel outer casing adds durability, making it suitable for long-term use in demanding environments.

Featuring 0-10V analogue speed control with on-board potentiometer, this fan gives installers maximum control over ventilation needs. Quick fit mounting brackets and rubber gaskets ensure a secure and easy installation, with the flexibility to mount the fan in any orientation.

Note: Hard wire installation by a licensed electrician is required.

Features

  • High Performance Airflow - 680 M³/H capacity for large rooms or commercial spaces
  • EC Motor Technology - Delivers energy efficiency and long service life
  • Quiet Running - Silent-block motor mounting reduces vibration and noise
  • Durable Construction - Made with galvanised steel casing
  • Speed Controllable - 0-10V analogue input with on-board potentiometer
  • Patented Centrifugal Impeller - Ensures powerful, consistent airflow
  • Quick Installation - Galvanised steel mounting brackets included
  • Secure Seal - Rubber gasket on spigots for improved duct connection
  • Flexible Mounting - Can be installed in any orientation

Specifications

  • Model No: JETLINE-150ECO
  • Air Flow: 680 M³/H
  • L/Sec: 189
  • Fan Speed: 46 Rev/Sec
  • Noise Level: 46 dB(A) @ 3M
  • Power Consumption: 83W
  • Amps: 0.4
  • Voltage: 220-240V
  • IP Rating: IP44
  • Flange Size: 150MM (6" Inch)
  • Weight: 3.6 KG

In The Box

  • [1] x Fantech Jetline Eco In-line Duct Mounted EC Exhaust Fan - 150MM (6" Inch)
