Fantech High Volume Galvanised Steel Wall Fan - HVD080 | 800MM | 3 Phase | w/ Backdraft Dampers

Airflow 16000 M³/H | Power Consumption 0.37 KW | IP55

SKU: FANS51806
|

OUT OF STOCK

POSTAGE APPLIES

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Freight applies

*This item is bullky so freight applies.

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

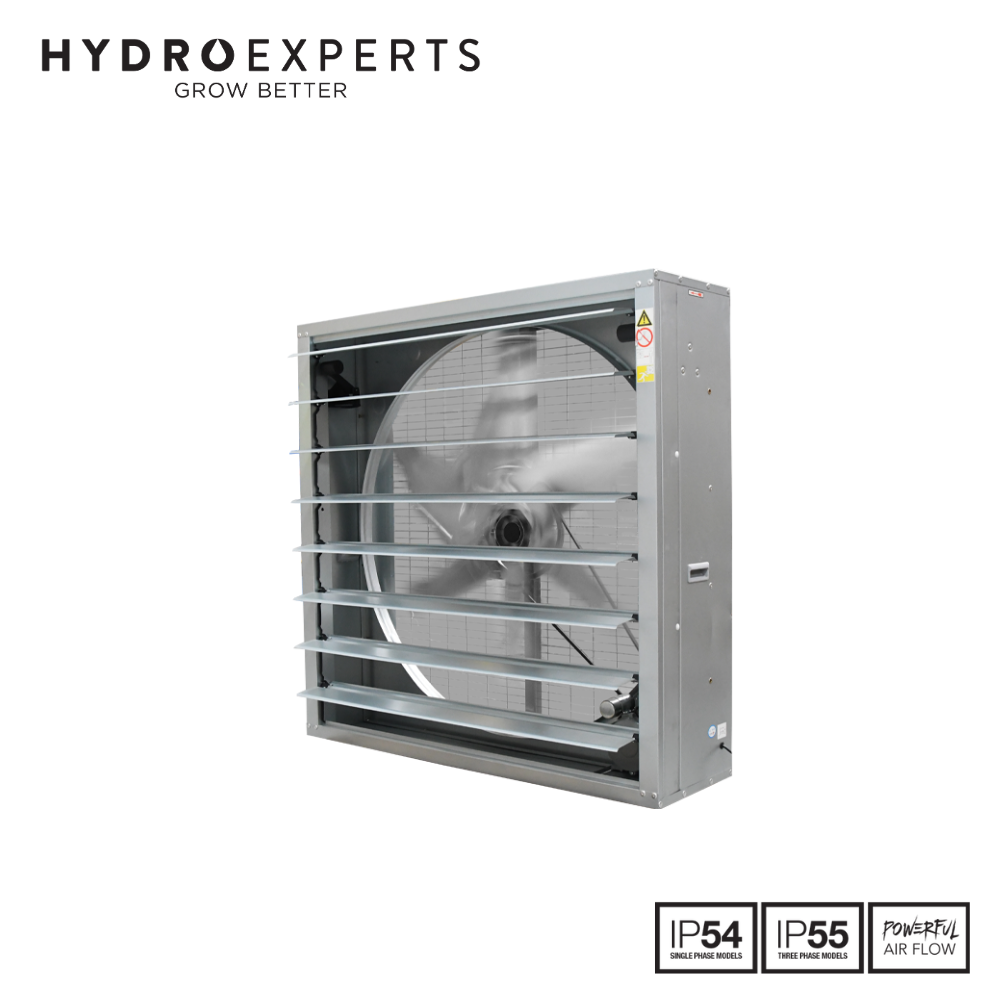

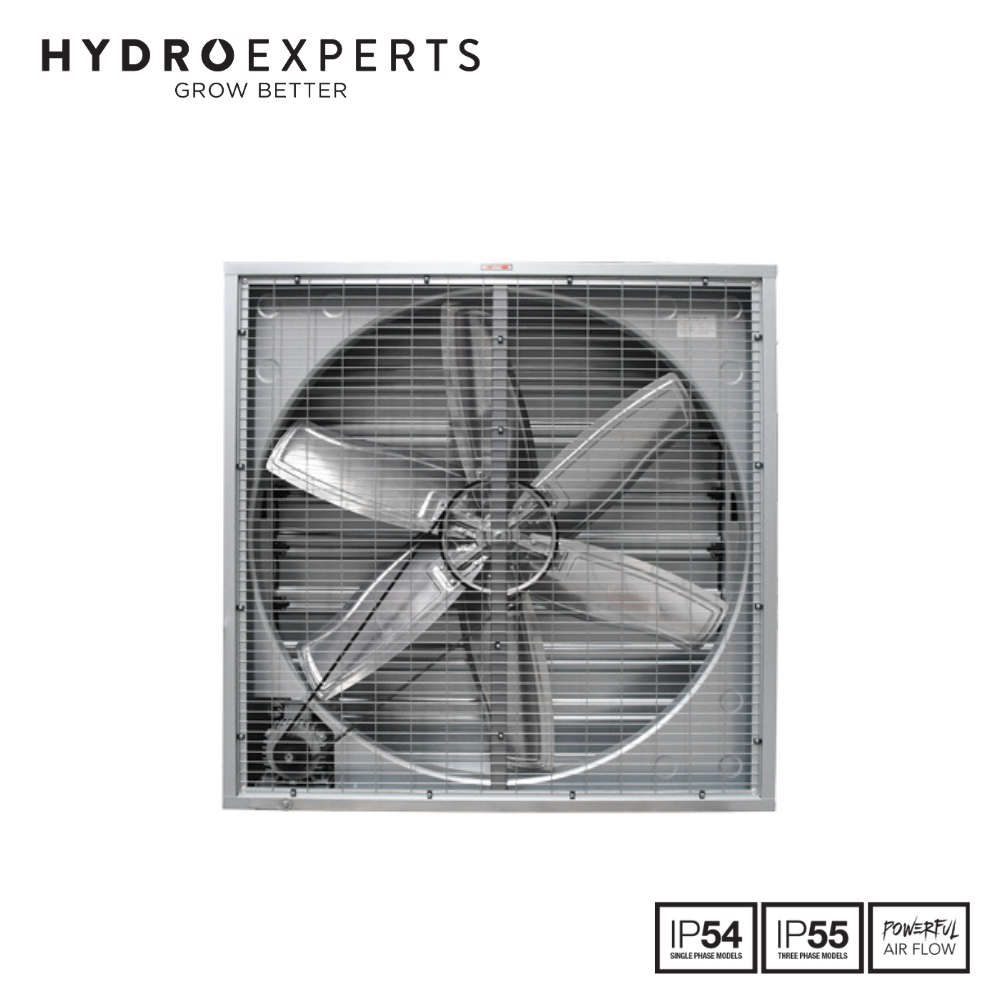

The Fantech HVD080 High Volume Wall Fan is a powerful industrial ventilation solution designed to move large volumes of air efficiently in commercial and agricultural environments. Featuring an 800mm fan diameter, 16,000m³/hr airflow capacity, and a reliable 0.37kW three-phase motor, this fan is ideal for warehouses, workshops, poultry sheds, factories, recreation halls, and other large buildings requiring effective air exchange.

Built with a durable galvanised steel construction, the HVD080 is engineered for long-term performance in demanding environments. The fan incorporates heavy-duty self-closing backdraft dampers that prevent weather ingress when the unit is not operating, helping maintain building protection and energy efficiency.

Designed for ease of installation and maintenance, the fan features integrated grab handles, nutserts, safety guards, and an adjustable motor plate that simplifies belt adjustments. Its low operating noise of just 49dB(A) at 3 metres makes it an effective ventilation solution without excessive noise disruption.

Whether used for temperature control, fresh air exchange, humidity management, or livestock ventilation, the Fantech HVD080 High Volume Wall Fan delivers reliable airflow performance and durability for Australian industrial and agricultural applications.

Features

  • High Airflow Performance - Delivers up to 16,000m³/hr airflow for large-scale ventilation applications.
  • Industrial Grade Construction - Manufactured from durable galvanised steel for long service life.

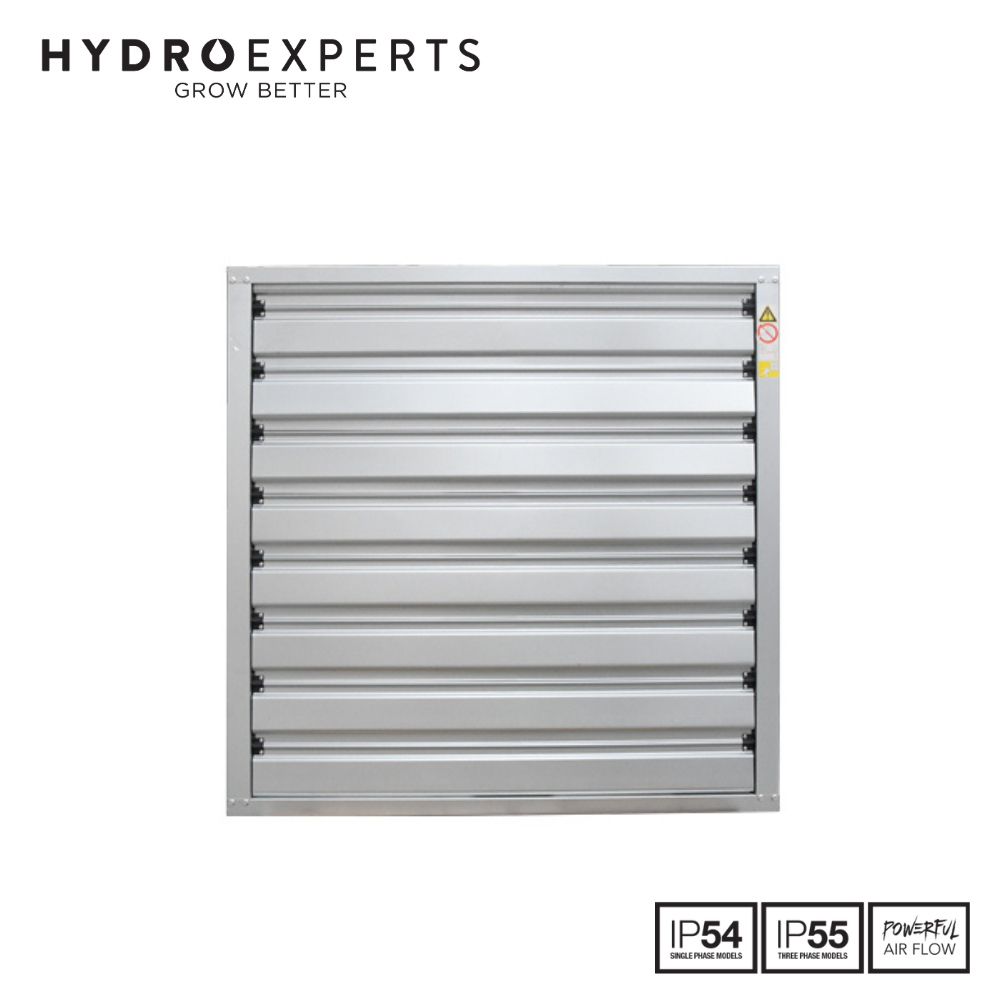

  • Heavy Duty Backdraft Dampers - Self-closing shutters prevent weather ingress when the fan is switched off.
  • Three Phase Motor - Efficient 415V motor designed for continuous commercial operation.
  • Low Noise Operation - Operates at just 49dB(A) measured at 3 metres.
  • Safety Guards Included - Factory fitted safety guards provide additional operator protection.
  • Easy Installation - Integrated nutserts and grab handles simplify mounting and positioning.
  • Adjustable Motor Plate - Allows convenient belt tension adjustment and maintenance.
  • IP55 Protection Rating - Suitable for demanding industrial environments.
  • Versatile Applications - Ideal for warehouses, workshops, poultry sheds, factories, and recreation halls.

Specifications

Specification HVD080
Model HVD080
Fan Size 800 mm
Voltage 415 V
Phase Three Phase
Frequency 50 Hz
Motor Power 0.37 kW
Airflow 16,000 m³/hr
Noise Level 49 dB(A) @ 3m
Fan Speed 450 RPM
Weight 42 kg
IP Rating IP55
Construction Galvanised Steel
Backdraft Dampers Self-Closing Mechanical Shutters
Safety Guards Included

In The Box

  • [1] x Fantech High Volume Galvanised Steel Wall Fan - HVD080 | 800MM | 3 Phase | w/ Backdraft Dampers
