Ergovent Rondo 125 - 125MM (5" Inch) | White | Round | Frameless Diffuser

Paintable | 125MM Frame Pipe | 90 M³/H per diffuser

SKU: DIFS10064
|

OUT OF STOCK

FREE SHIPPING OVER $499*

REG. PRICE: $229.00
$209.95
Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

Ergovent Rondo 125 is a premium round frameless ceiling diffuser for 125MM duct systems, designed to sit flush with plasterboard ceilings and walls for a clean, minimalist look. Made from solid gypsum with an integrated 125MM frame pipe, it can be finished with the same paint as the ceiling so the vent almost disappears in the room.

The ring shaped outlet and convex face deliver smooth, low noise airflow, making it ideal for HRV systems, bathrooms, laundries and living areas in Australian homes and small commercial projects. Adjustable PU dampers allow you to balance up to 90 M³/H per diffuser, helping tradies fine tune supply or exhaust volumes on site.

Installers will appreciate the simple mounting system, compatibility with single or double layer plasterboard, and strong magnetic cover that makes cleaning and inspection fast. Choose Ergovent Rondo 125 when you need an architectural quality ventilation diffuser on your next build or renovation. Add it to your cart today.

Features

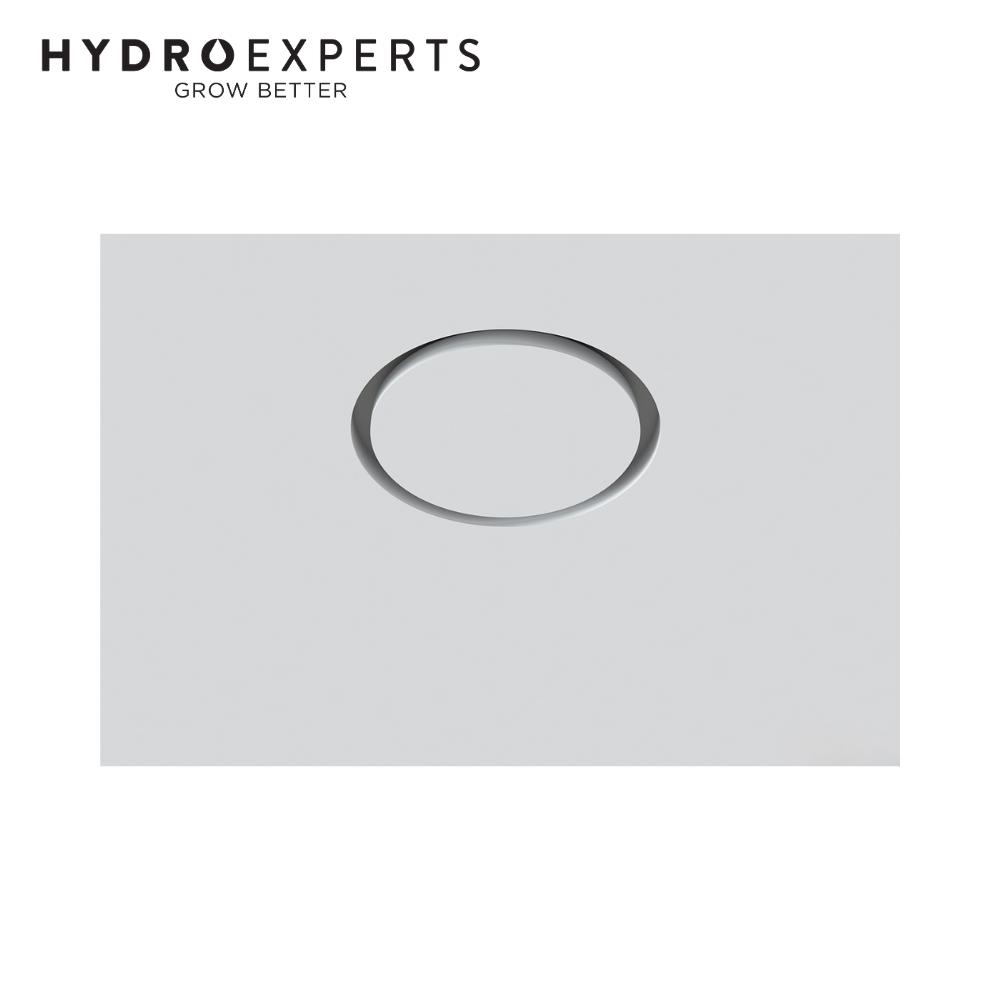

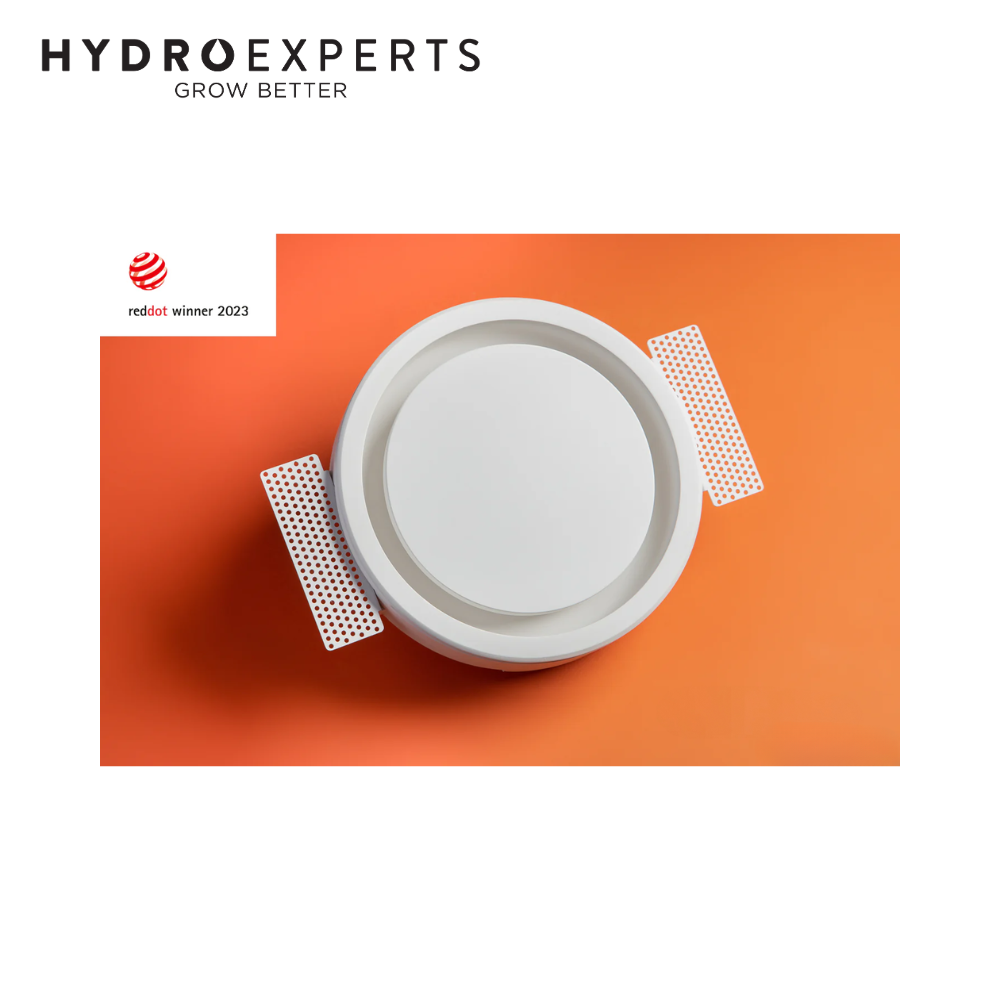

  • Frameless round design: gypsum diffuser for a flush, minimalist finish in plasterboard ceilings and walls.

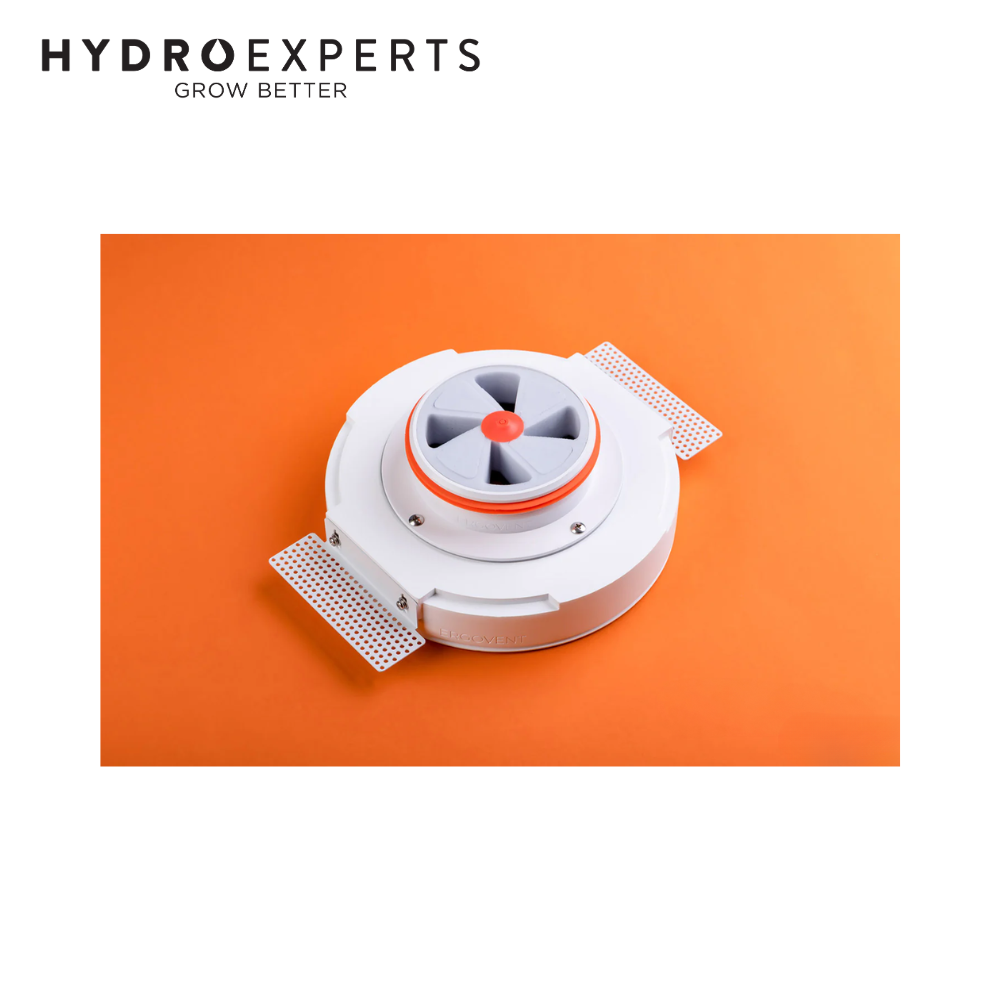

  • 125MM duct connection: integrated frame pipe suits common 125MM flexible and rigid duct in Australian installs.

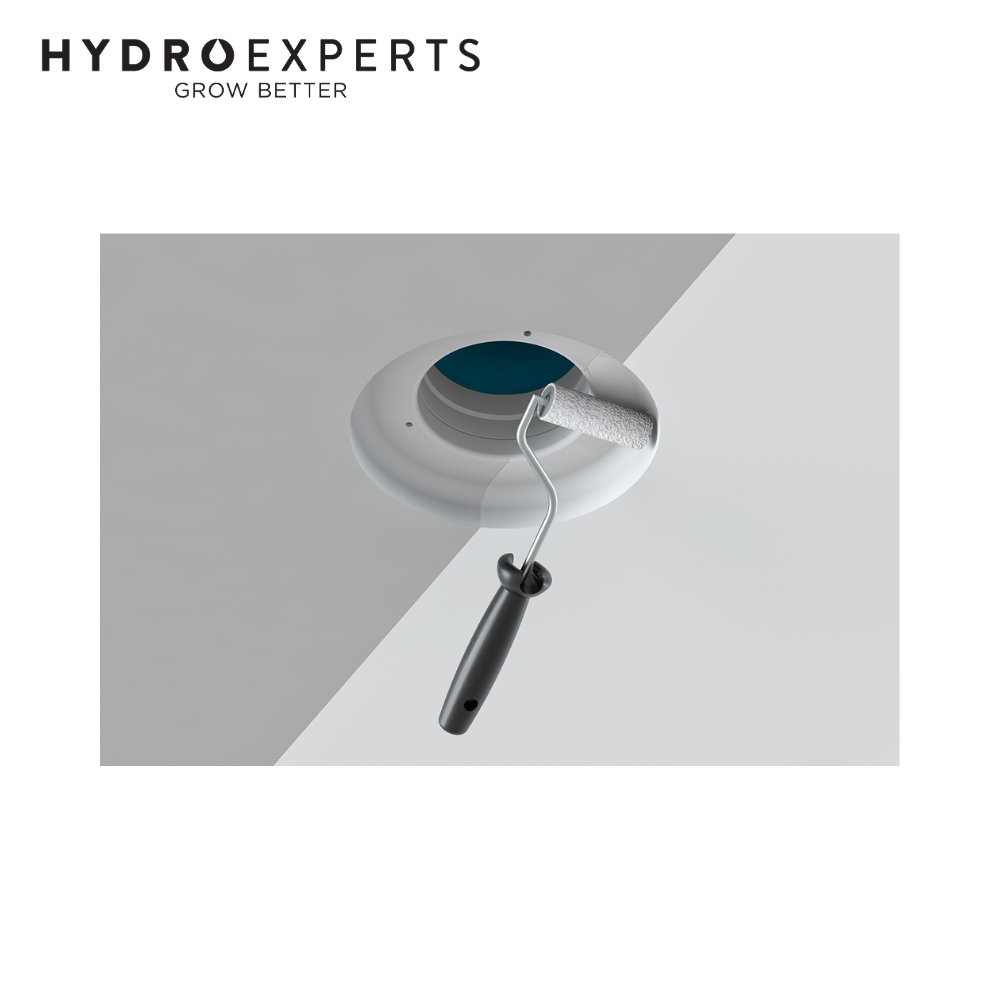

  • Paintable surface: face can be painted to match ceiling or wall colour for an almost invisible vent.
  • Optimised airflow: ring shaped outlet and convex lid provide even, low noise supply or exhaust air distribution.

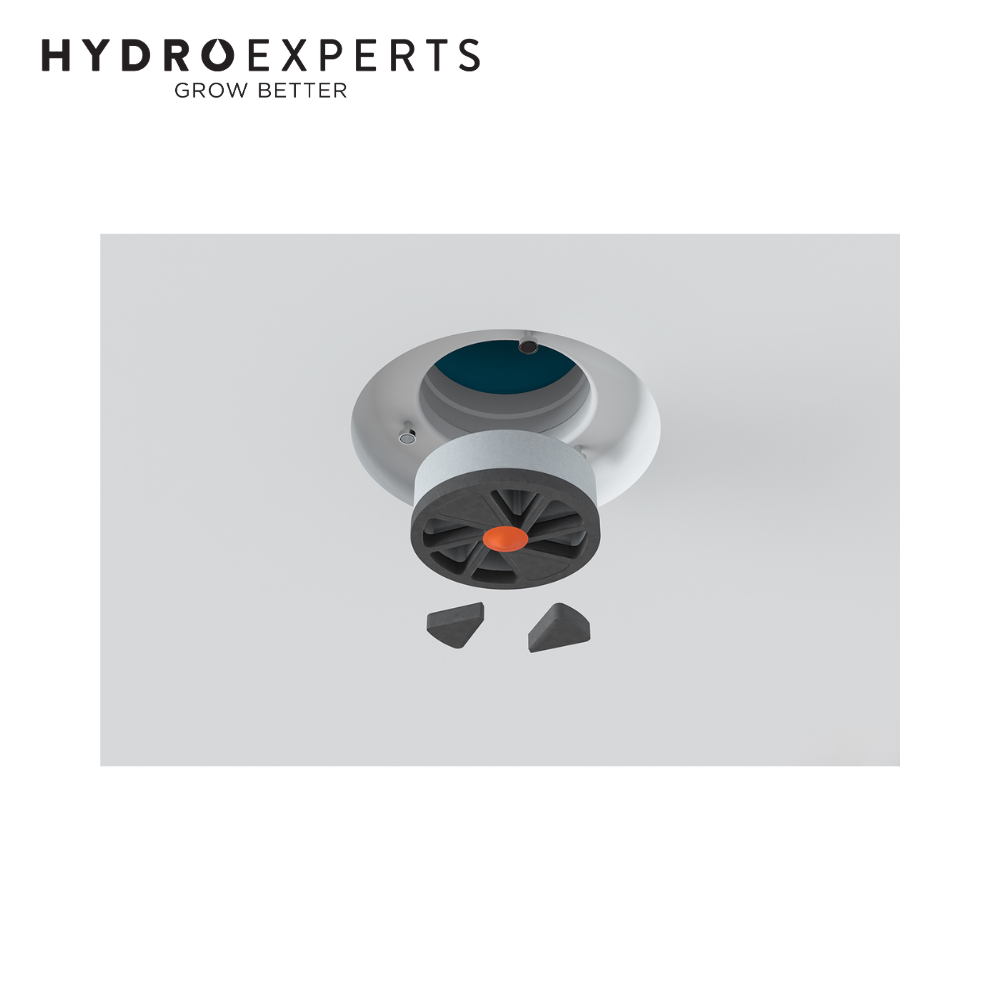

  • Balancing inserts: PU dampers supplied to set airflow per diffuser during system commissioning.

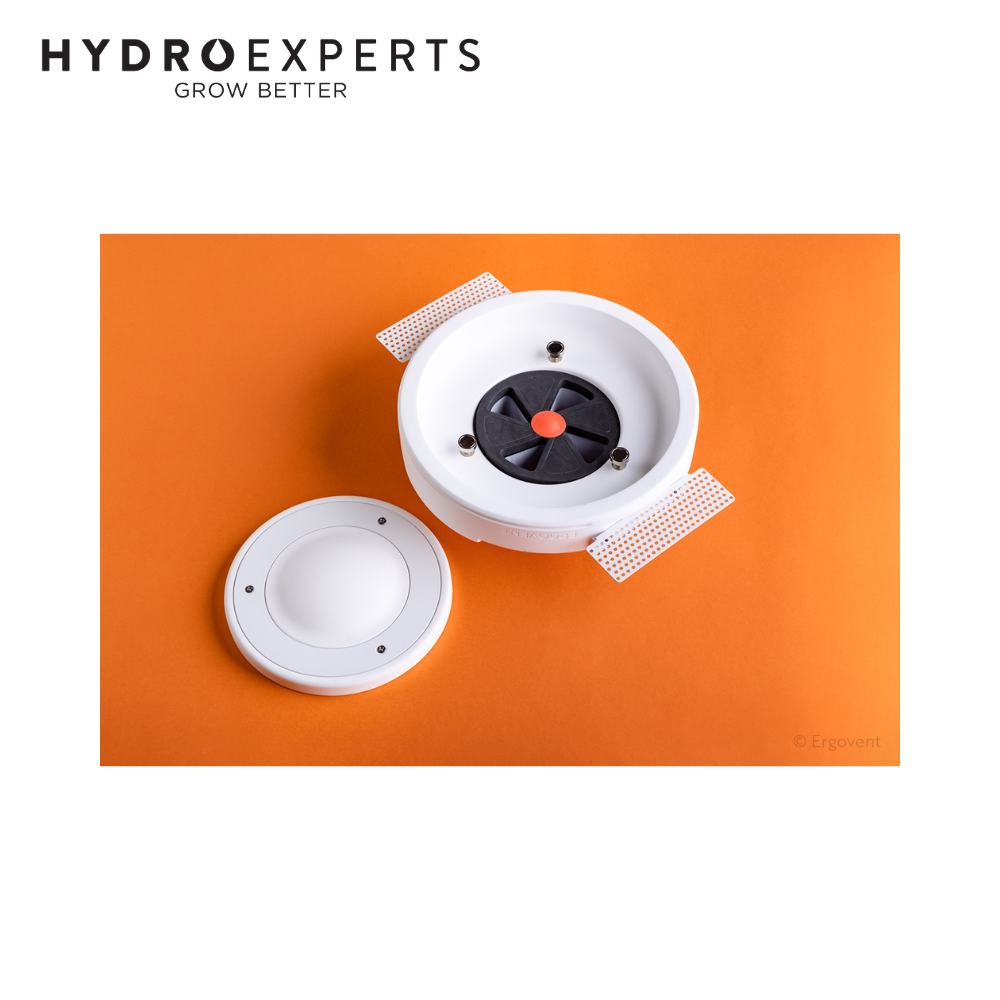

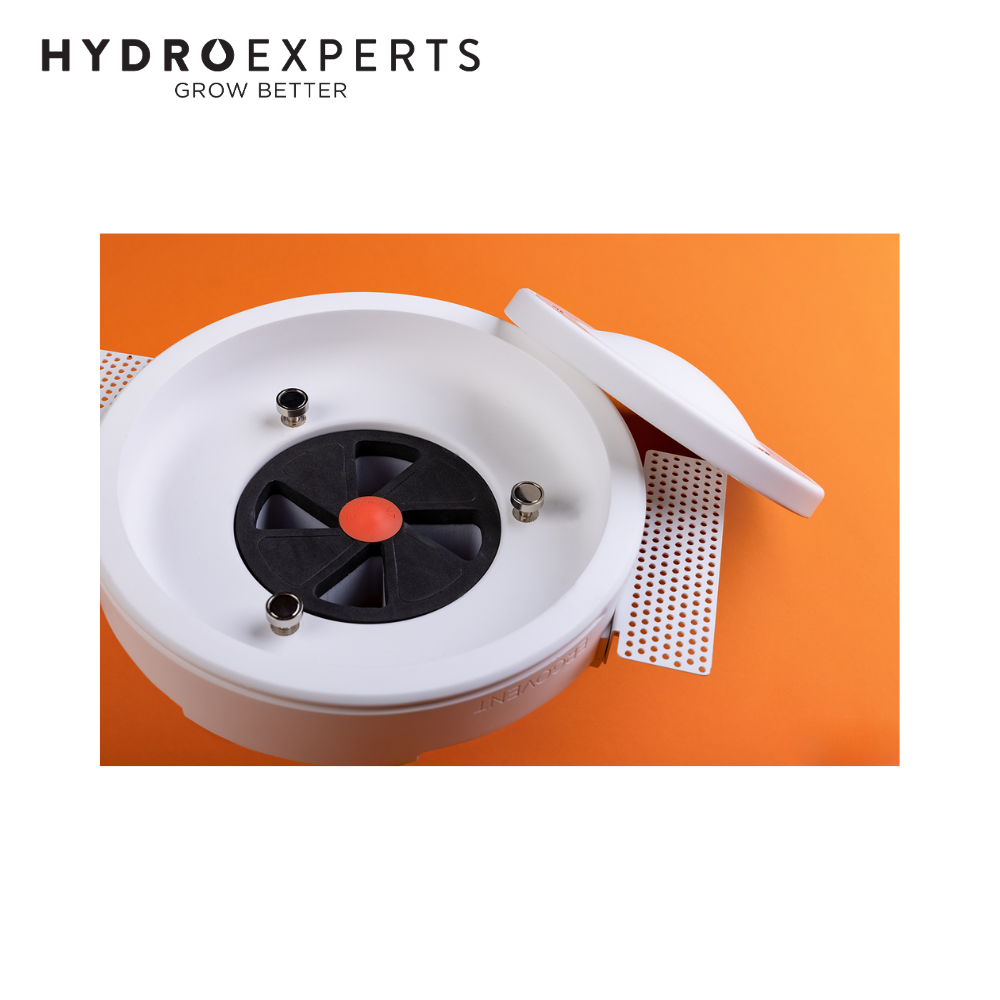

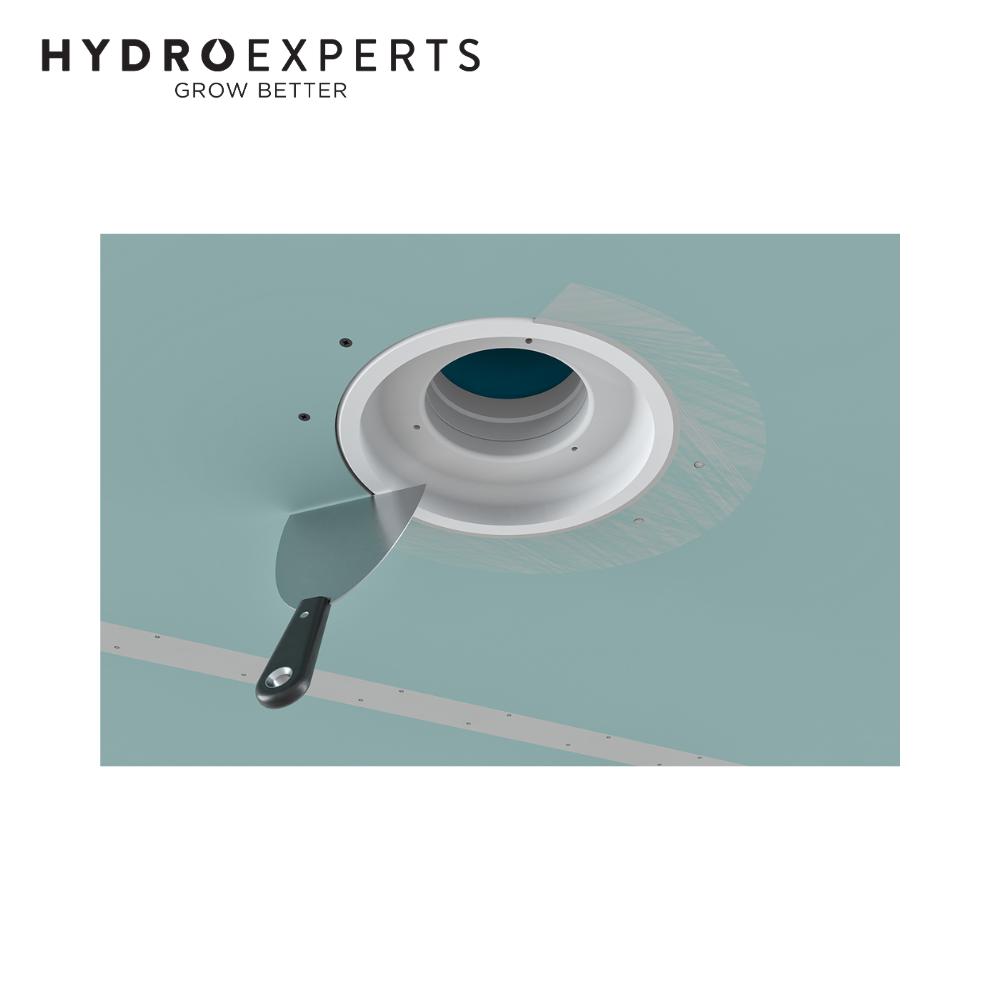

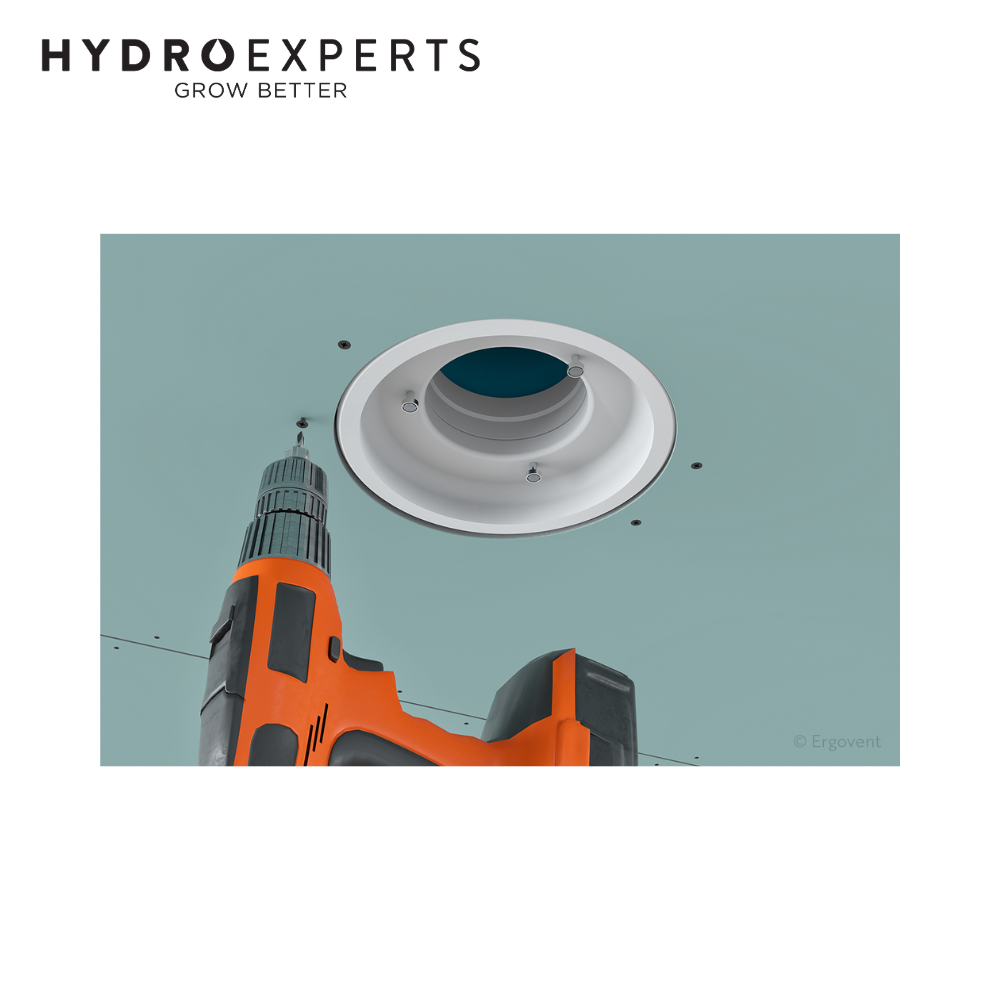

  • Installer friendly: simple mounting for single or double layer plasterboard with a magnetic cover for fast cleaning and inspection.

Specifications

  • Brand: Ergovent
  • Model: Rondo 125
  • Diffuser Type: Round frameless flush mounted ceiling or wall diffuser
  • Duct Connection Size: 125MM (5" Inch)
  • Recommended Airflow: up to 90 M³/H per diffuser
  • Material: Gypsum diffuser body with integrated plastic frame pipe
  • Colour: White, paintable
  • Application: Suitable for both supply and exhaust ventilation
  • Installation Location: Plasterboard ceilings and walls in residential and light commercial projects

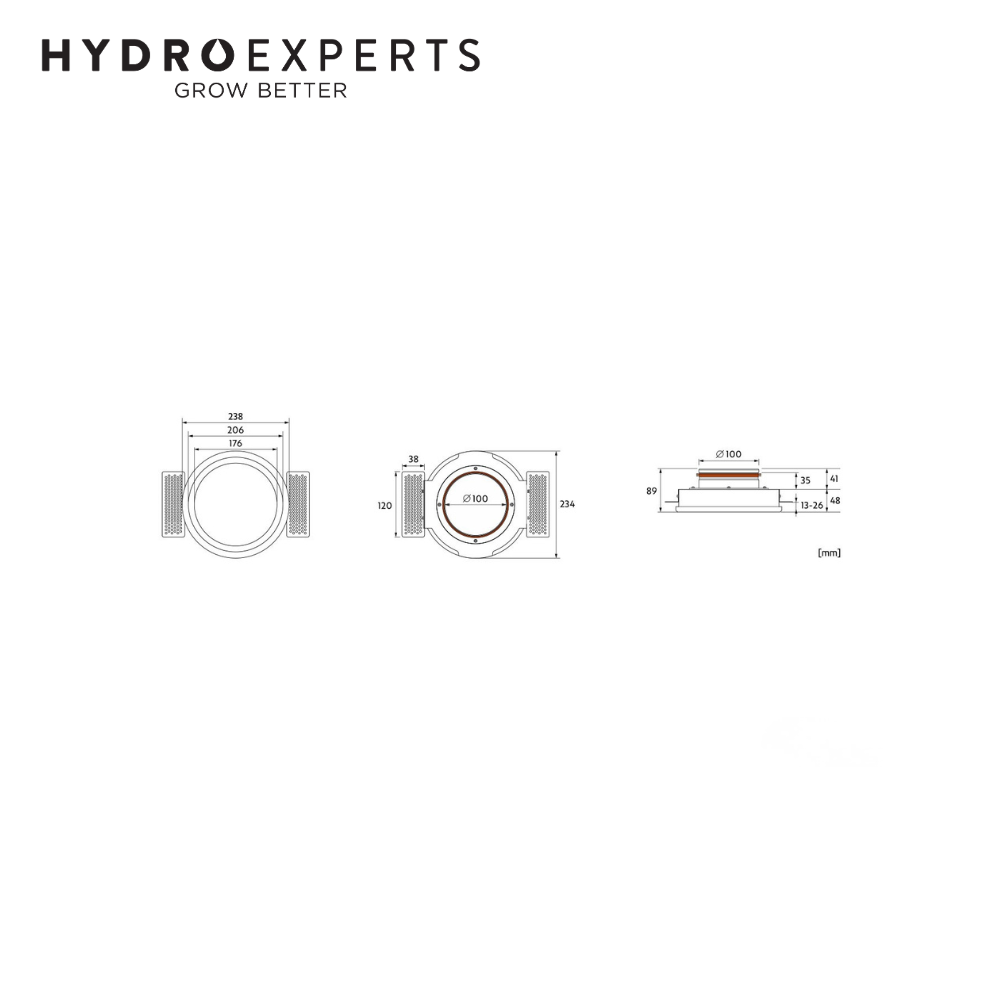

  • Ceiling Cutout Diameter: approx 17.6CM (176MM)
  • Visible Diffuser Diameter: approx 20.6CM (206MM)
  • Overall Width Including Wings: approx 23.8CM (238MM)
  • Overall Depth Above Plasterboard: approx 8.9CM (89MM)
  • Suitable Plasterboard Thickness: approx 1.3 to 2.6CM (13 to 26MM) single or double layer
  • Approximate Weight: around 3KG gypsum body

In The Box

  • [1] x Ergovent Rondo 125 - 125MM (5" Inch) | White | Round | Frameless Diffuser
