Ergovent Rondo 150 - 150MM (6" Inch) | White | Round | Frameless Diffuser

Paintable | 125MM Frame Pipe | 130 M³/H per diffuser

SKU: DIFS10065

Ergovent

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

Calculate shipping

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

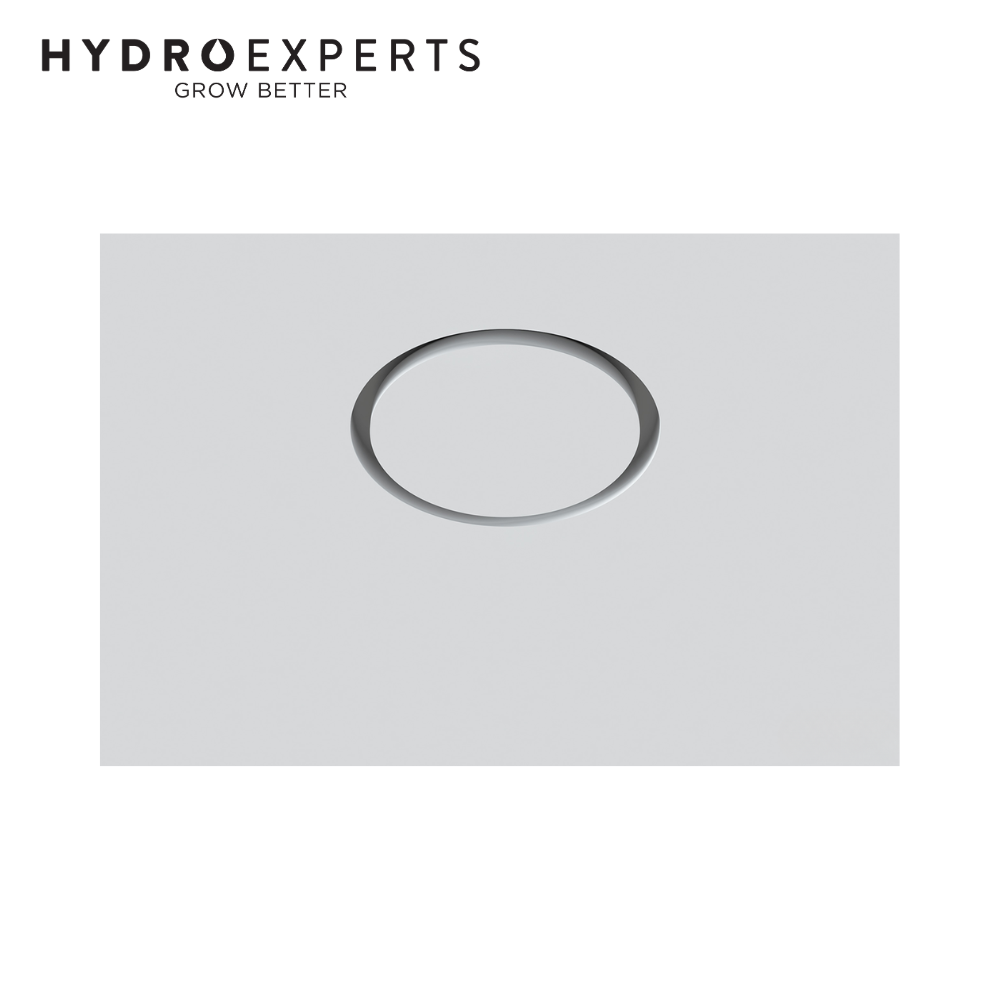

Ergovent Rondo 150 is a round frameless ceiling diffuser for 150MM duct systems, designed to sit flush in plasterboard ceilings and walls for a clean, minimalist finish. Made from high quality gypsum with an integrated 150MM frame pipe, it can be painted with the same product as the ceiling so the vent visually disappears in modern interiors.

The ring shaped slot and aerodynamic convex lid provide smooth, low noise airflow and help prevent dirty rings forming around the diffuser face. Recommended airflow is up to 130 M³/H per diffuser, making it ideal for HRV, bathroom, laundry and living area supply or exhaust applications.

PU balancing inserts in the connection sleeve allow tradies to fine tune each outlet during commissioning. The diffuser is installer friendly, with simple mounting in single or double layer plasterboard and robust packaging that arrives site ready. Choose Ergovent Rondo 150 for an architectural grade ventilation diffuser on your next Australian project and add it to your cart today.

Features

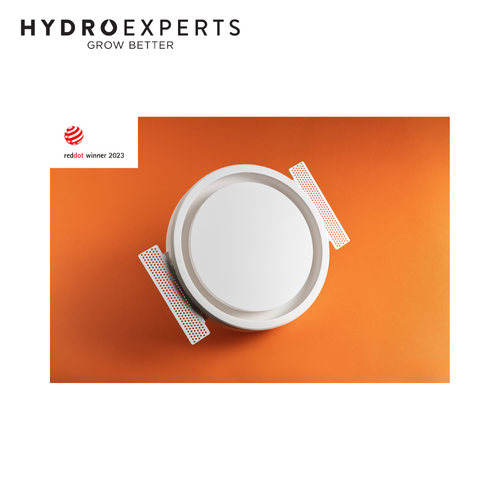

Frameless round design: gypsum diffuser for a flush, minimalist appearance in plasterboard ceilings and walls.
150MM duct connection: integrated frame pipe suits standard 150MM flexible and rigid duct used in Australian ventilation installs.

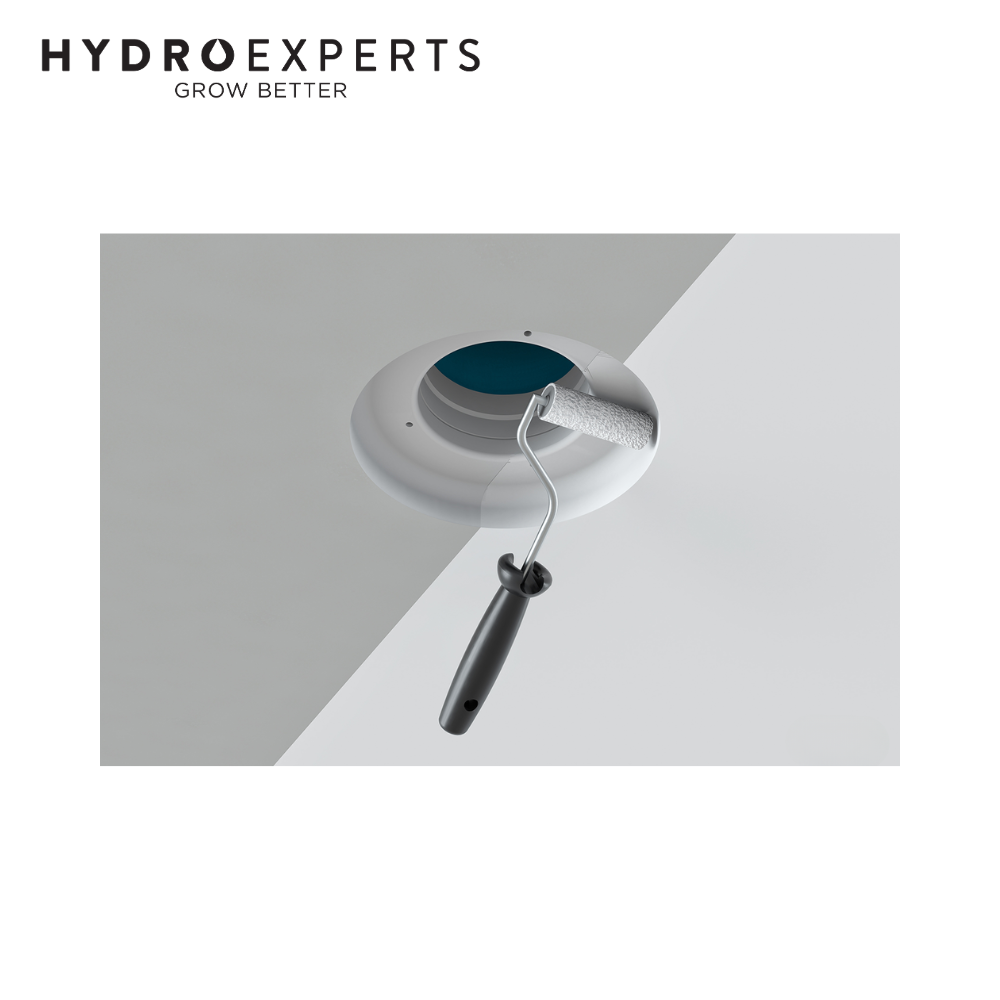

Paintable surface: face can be coated with the same paint as ceilings or walls for an almost invisible vent.
Optimised airflow: ring shaped outlet and convex lid provide even, low noise supply or exhaust air distribution while reducing dirt rings.

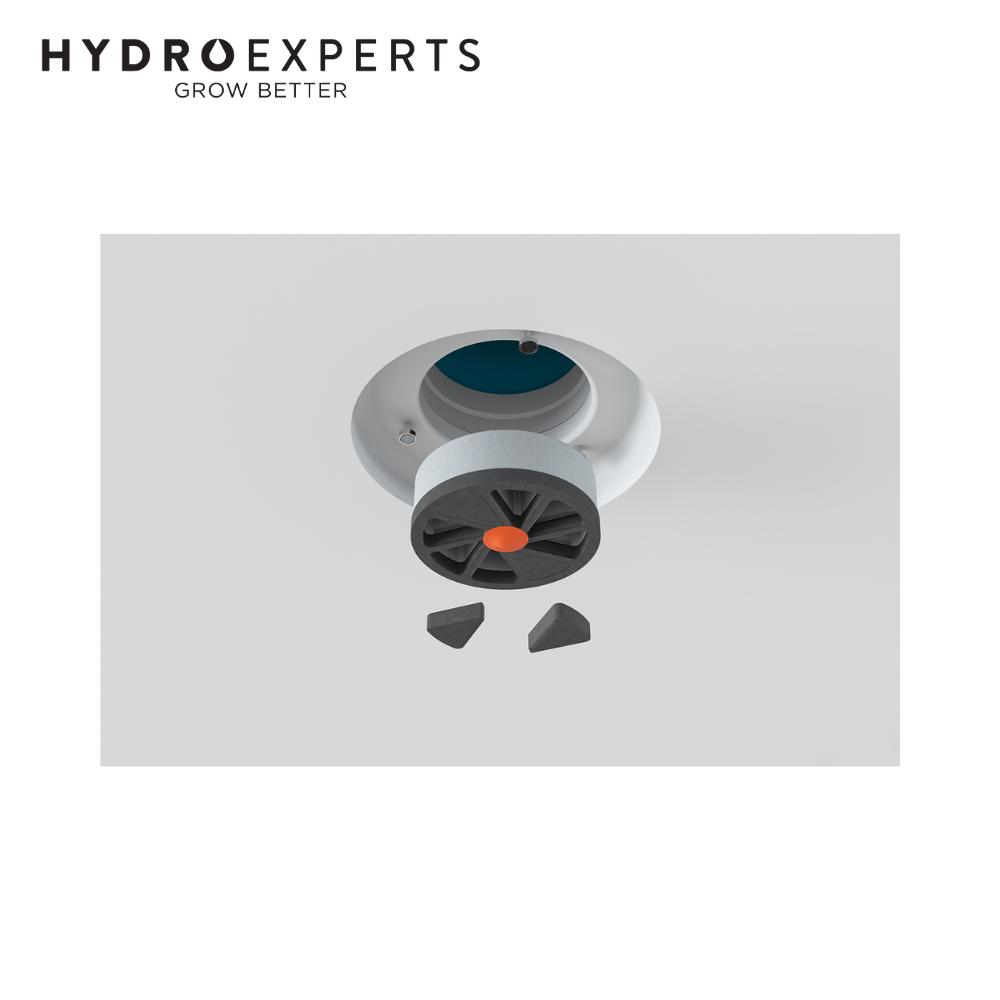

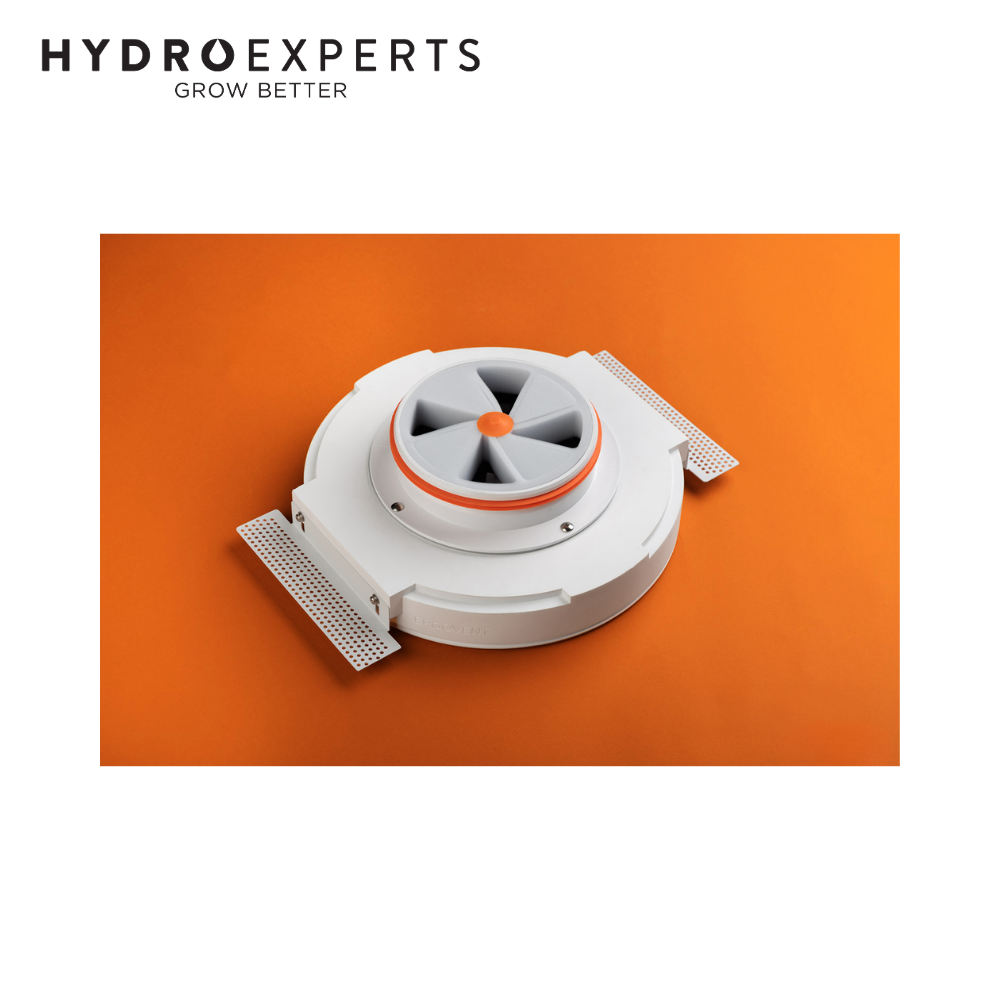

Balancing inserts: PU dampers included so tradies can set airflow per diffuser during commissioning.

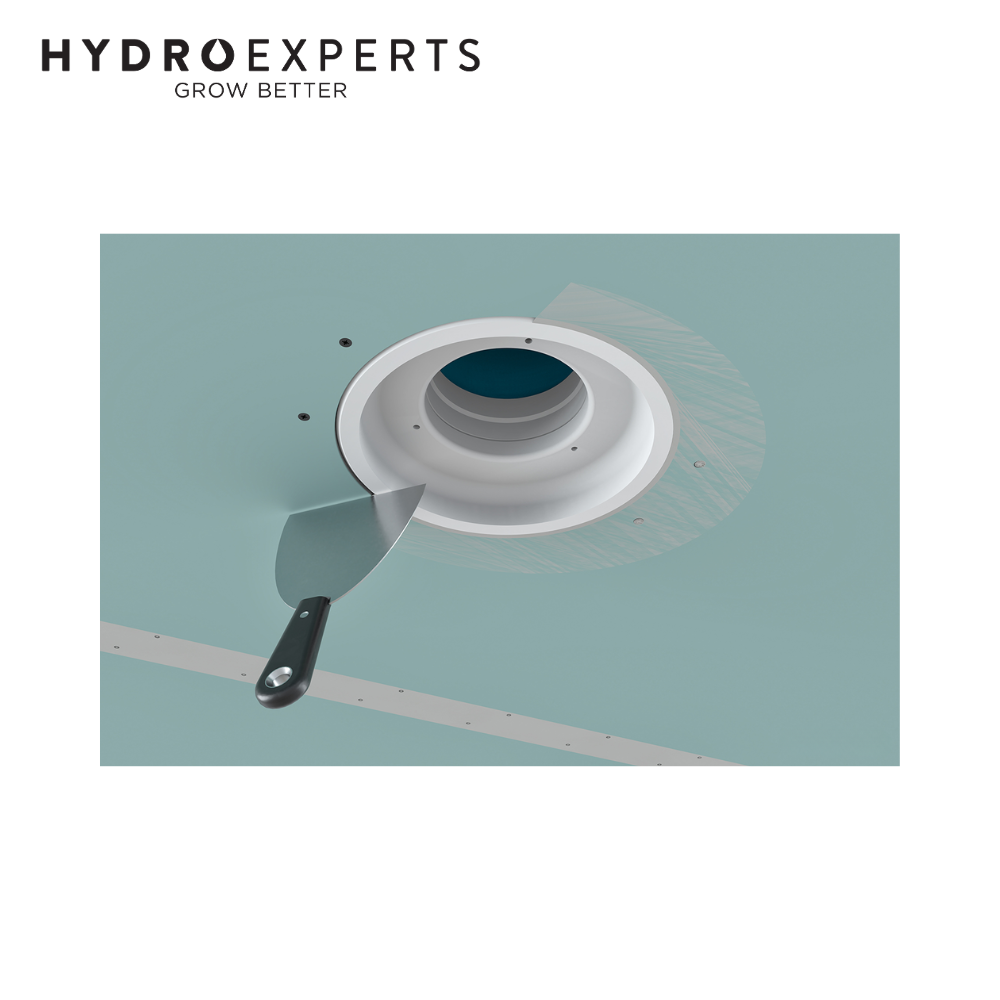

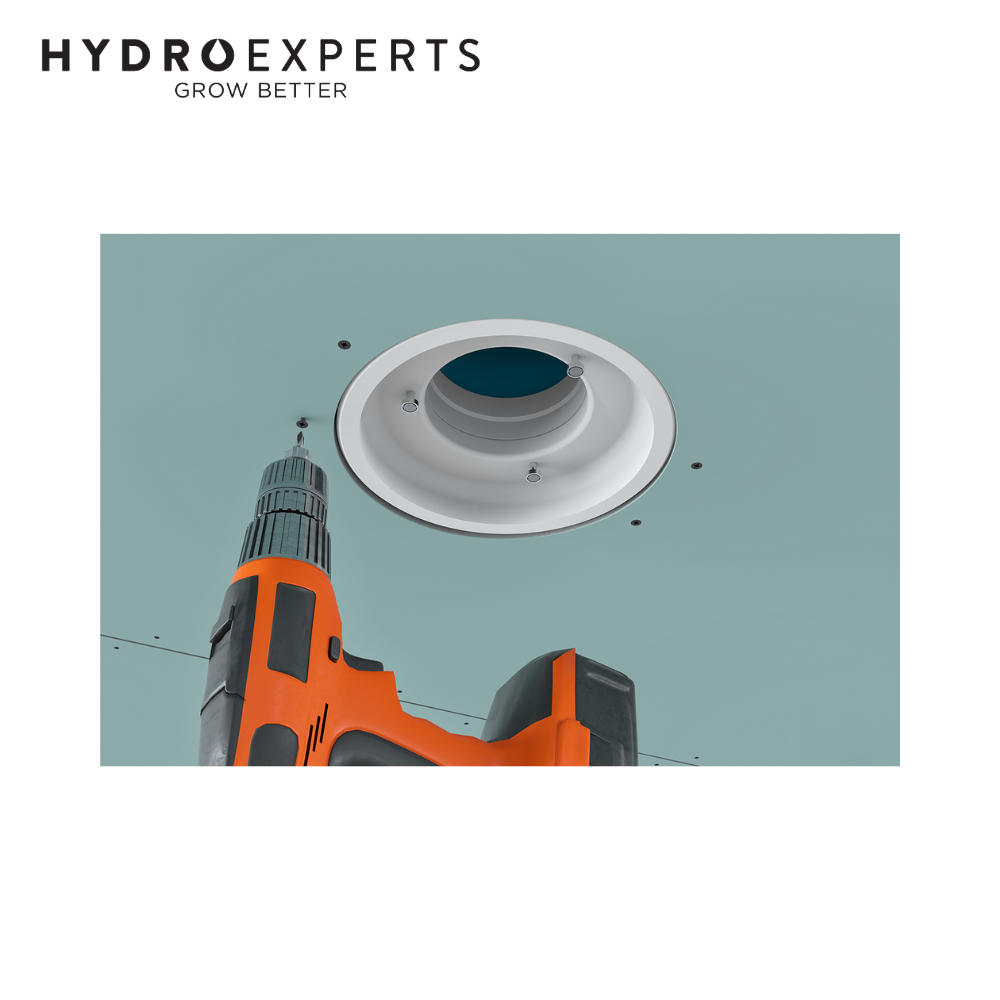

Installer friendly: simple mounting for single or double layer plasterboard with a strong magnetic cover for easy access and cleaning.

Specifications

Brand: Ergovent
Model: Rondo 150
Diffuser Type: Round frameless flush mounted ceiling or wall diffuser
Duct Connection Size: 150MM (6" Inch)
Recommended Airflow: up to 130 M³/H per diffuser
Material: Gypsum diffuser body with integrated plastic frame pipe
Colour: White, fully paintable
Application: Suitable for both supply and exhaust ventilation
Installation Location: Plasterboard ceilings and walls in residential and light commercial projects

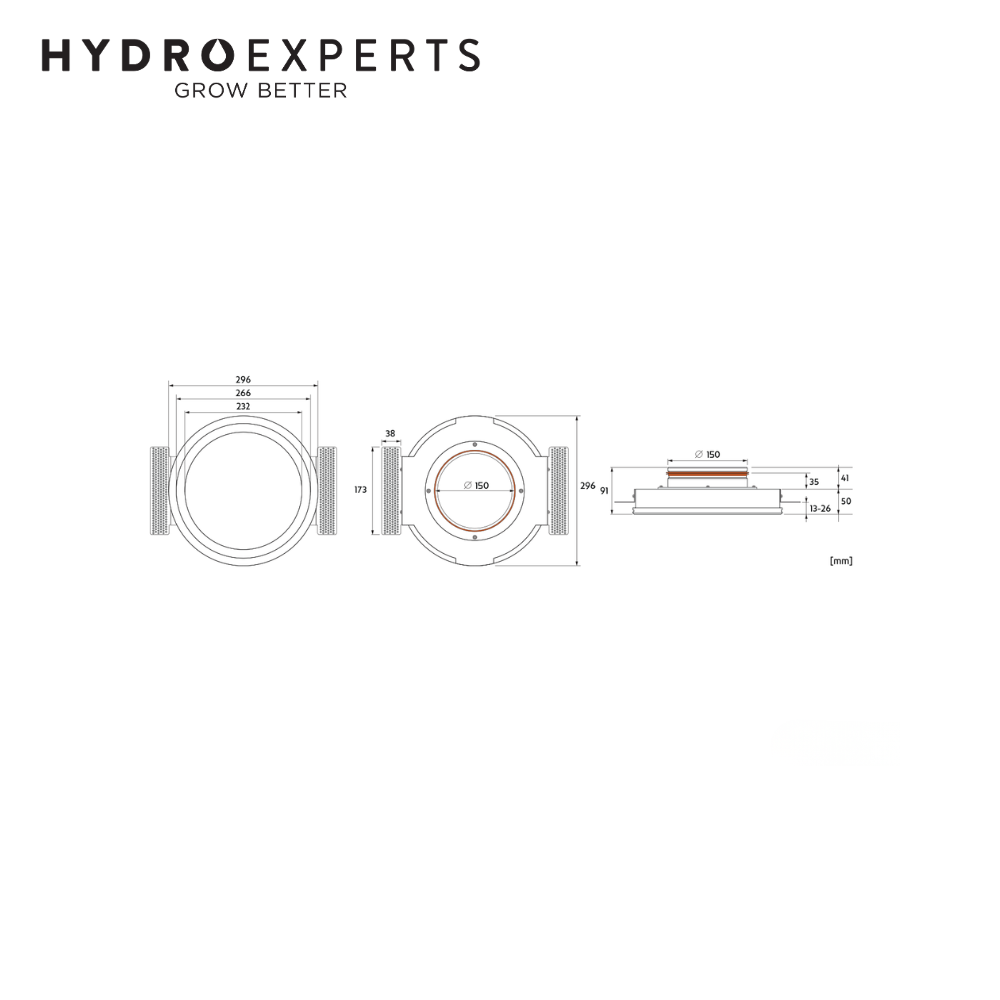

Ceiling Cutout Diameter: approx 23.2CM (232MM)
Visible Diffuser Diameter: approx 29.6CM (296MM)
Overall Width Including Wings: approx 29.6CM (296MM)
Overall Depth Above Plasterboard: approx 9.1CM (91MM)
Suitable Plasterboard Thickness: approx 1.3 to 2.6CM (13 to 26MM), single or double layer
Minimum Space Above Ceiling: approx 5.0CM (50MM) clearance recommended
