Ergovent Rondo 100 - 100MM (4" Inch) | White | Round | Frameless Diffuser

Paintable | 100MM Frame Pipe | 90 M³/H per diffuser

SKU: DIFS10063
|

OUT OF STOCK

FREE SHIPPING OVER $499*

REG. PRICE: $219.00
$199.95
Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

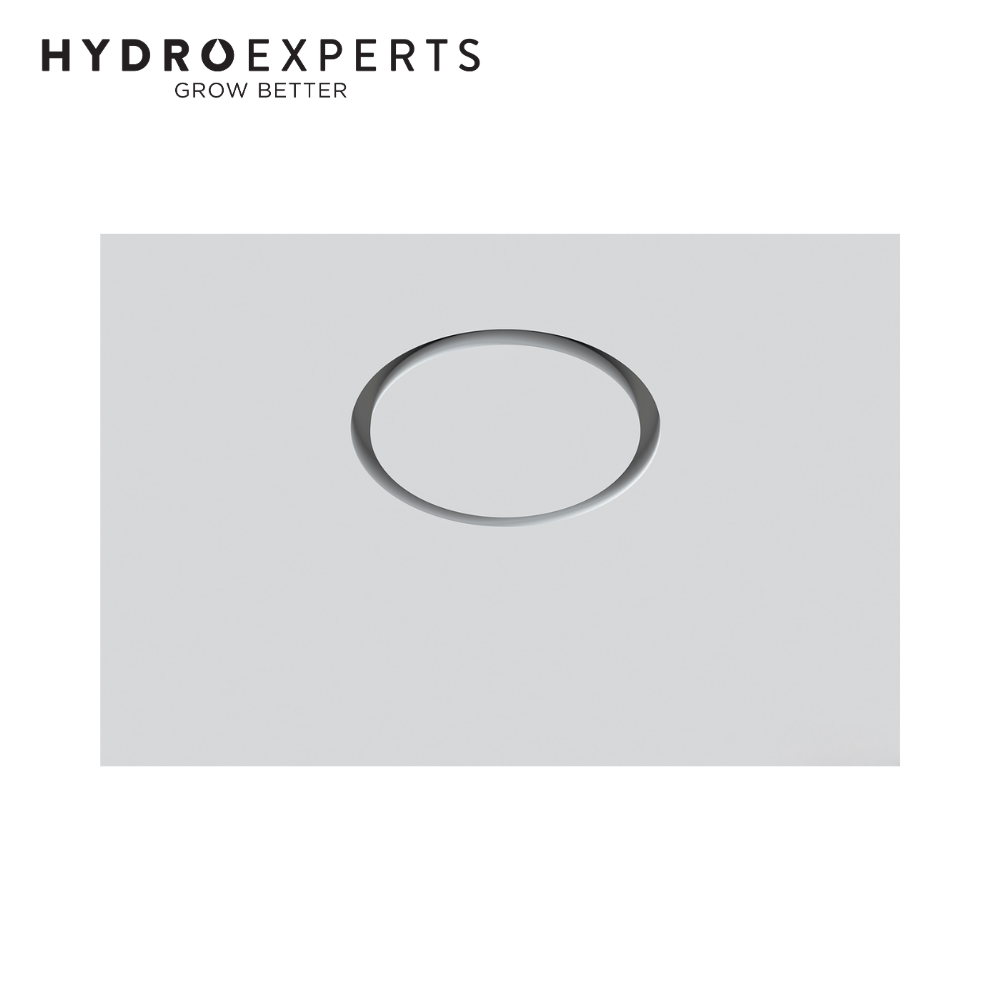

Ergovent Rondo 100 is a round frameless ceiling diffuser for 100MM duct systems, designed to disappear into modern plasterboard ceilings and walls. Manufactured from solid gypsum with an integrated 100MM frame pipe, it can be painted with the same ceiling paint for a perfectly flush, minimalist finish.

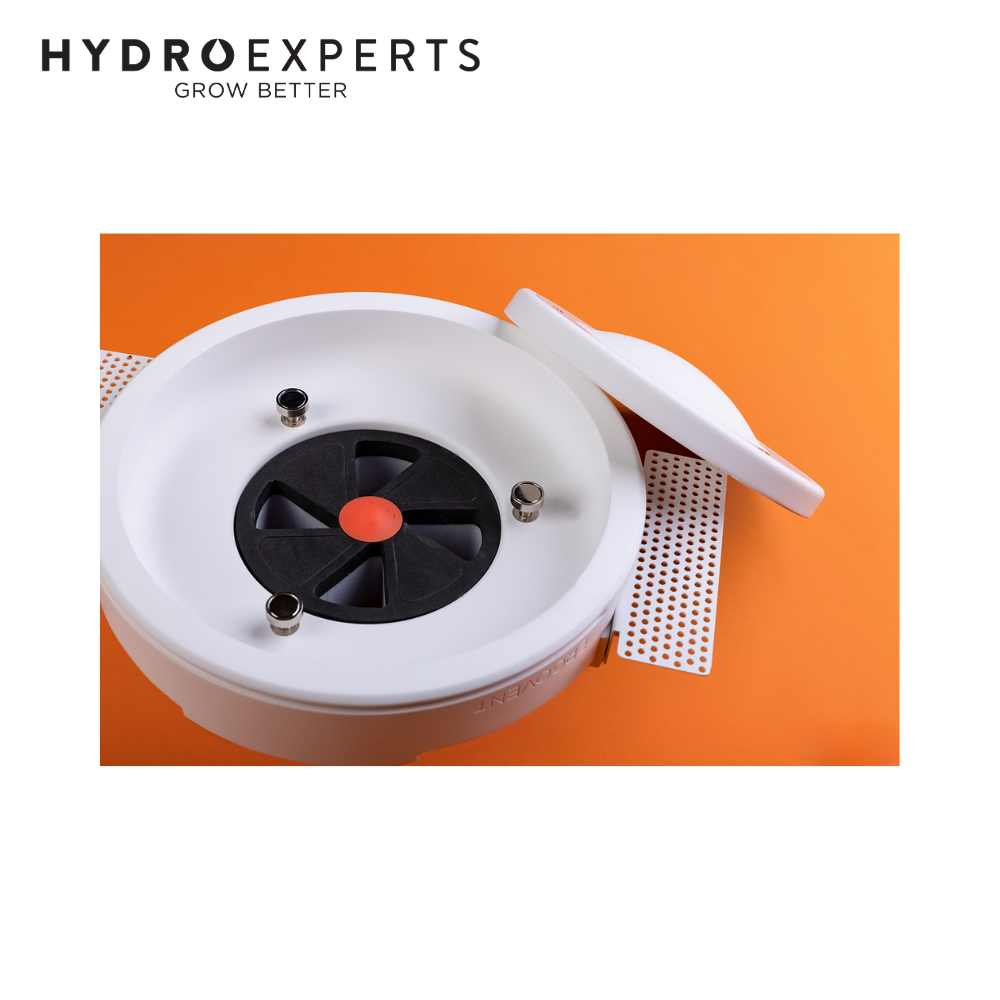

The aerodynamic convex lid and ring shaped outlet deliver even air distribution with low noise, making it ideal for bedrooms, living areas and premium commercial fitouts. Supplied ready for both supply and exhaust, Rondo 100 includes balancing inserts to fine tune airflow up to 90 M³/H per diffuser.

Installers will appreciate the simple mounting concept and generous space above the ceiling, suitable for single or double layer plasterboard. Choose Ergovent Rondo 100 when you want architectural quality ventilation diffusers on your next Australian project. Add it to your cart today.

Features

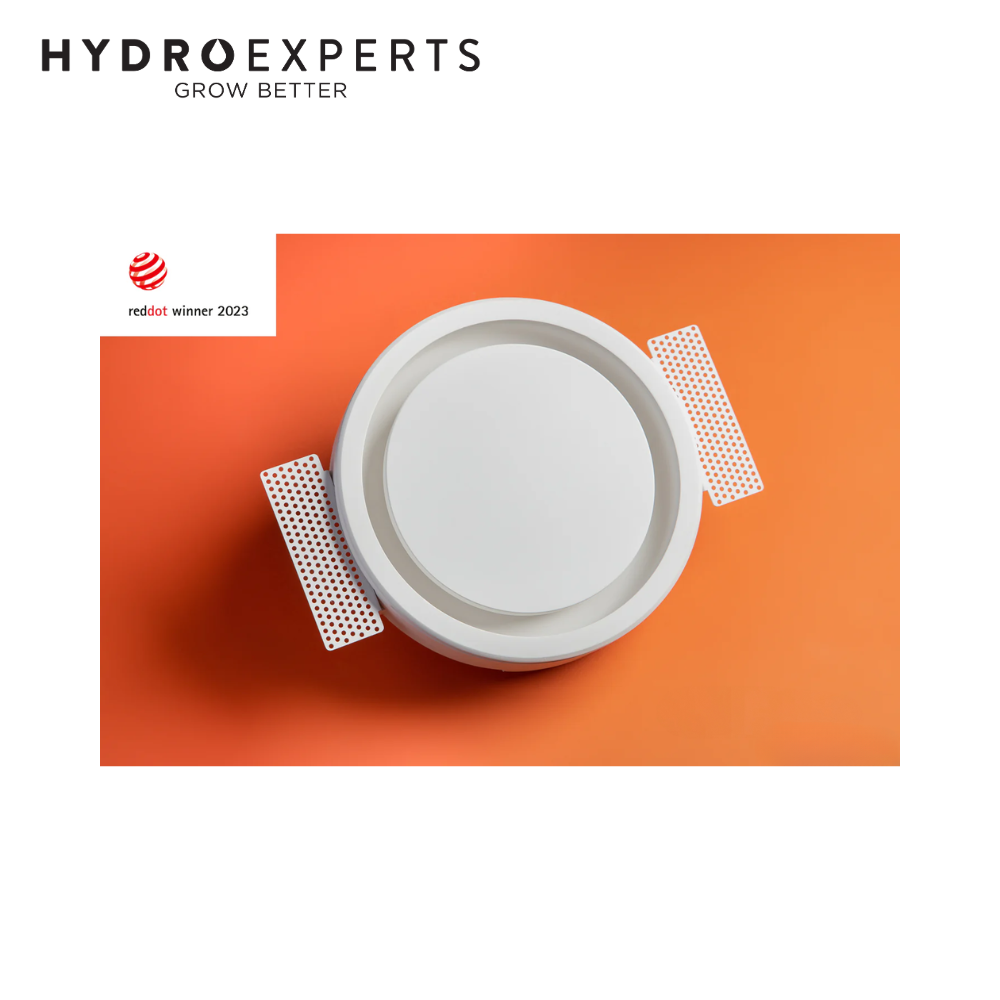

  • Frameless round design: gypsum diffuser for a minimalist flush finish in plasterboard ceilings and walls.
  • 100MM duct connection: integrated frame pipe suits standard flexible and rigid duct used in Australian installations.
  • Paintable surface: face can be finished with the same paint and texture as the ceiling or wall for an almost invisible vent.
  • Aerodynamic airflow: convex lid and ring slot outlet provide even air distribution with low noise.

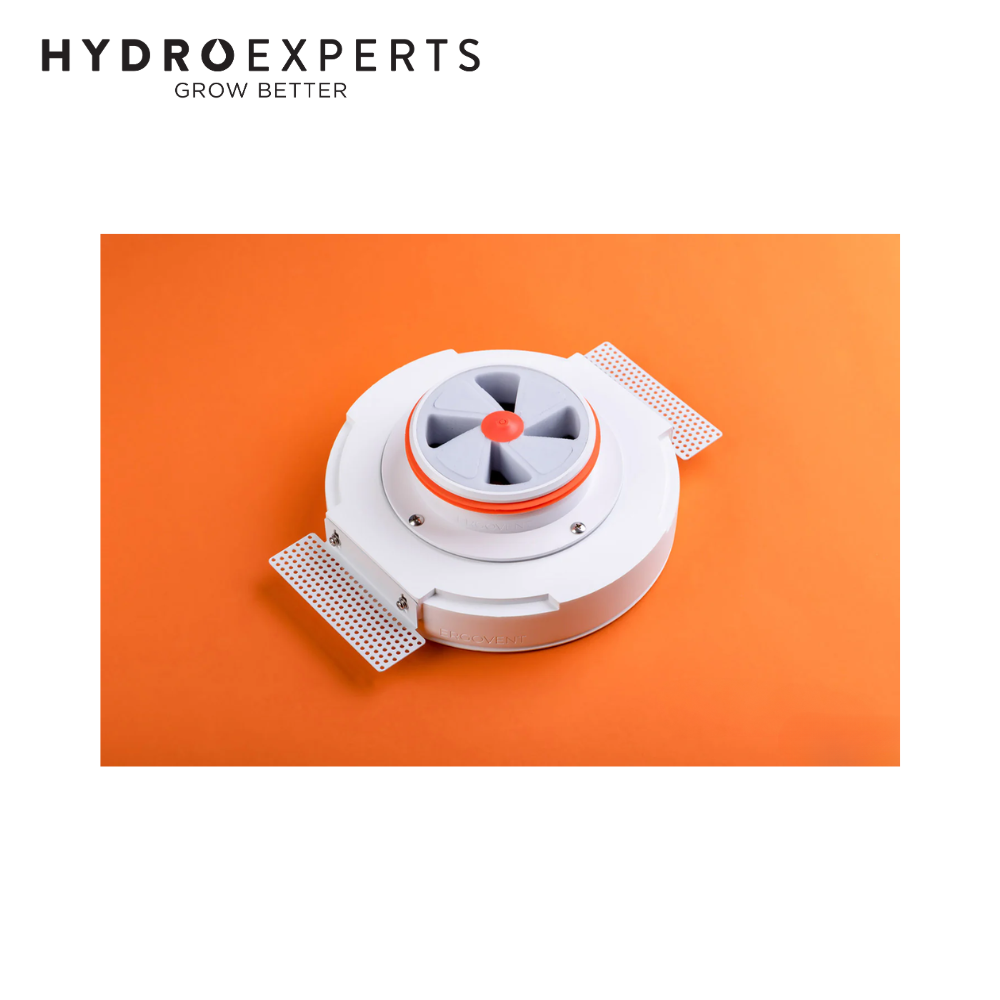

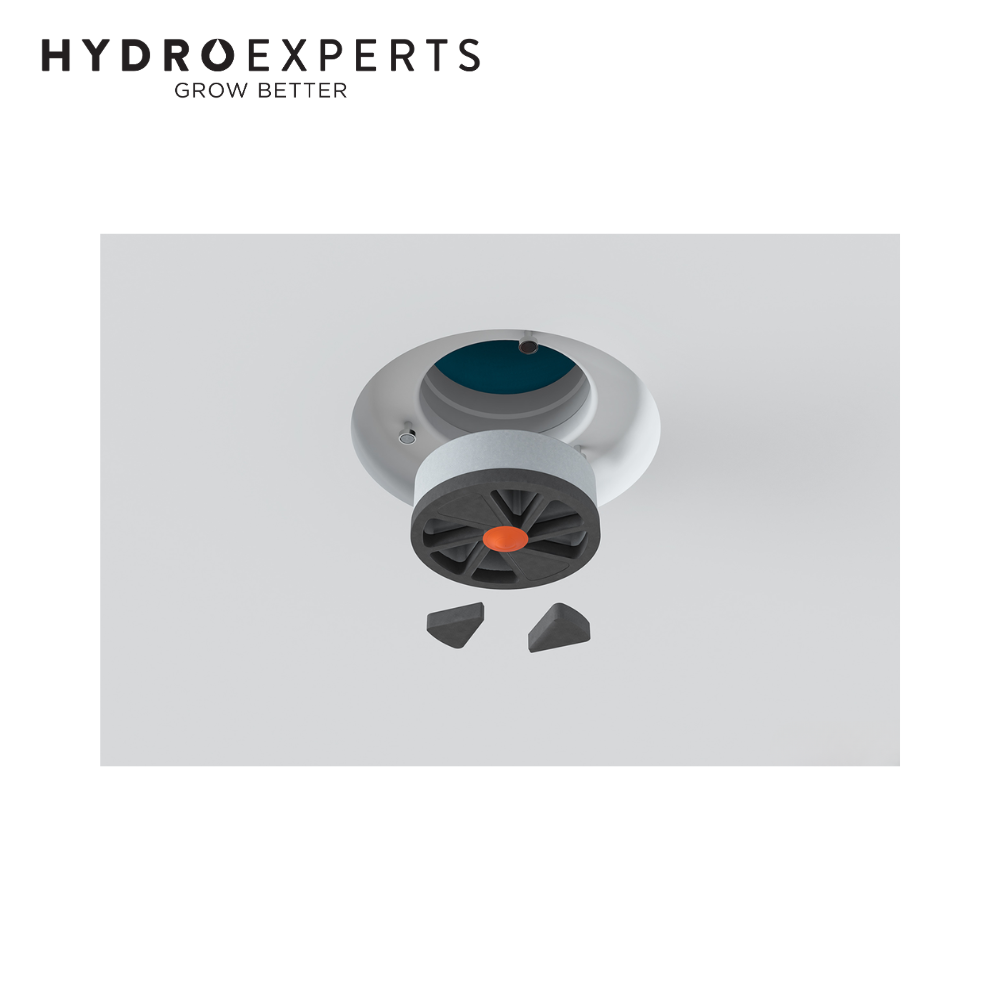

  • Balancing inserts included: PU valves allow simple fine tuning of airflow at each diffuser.

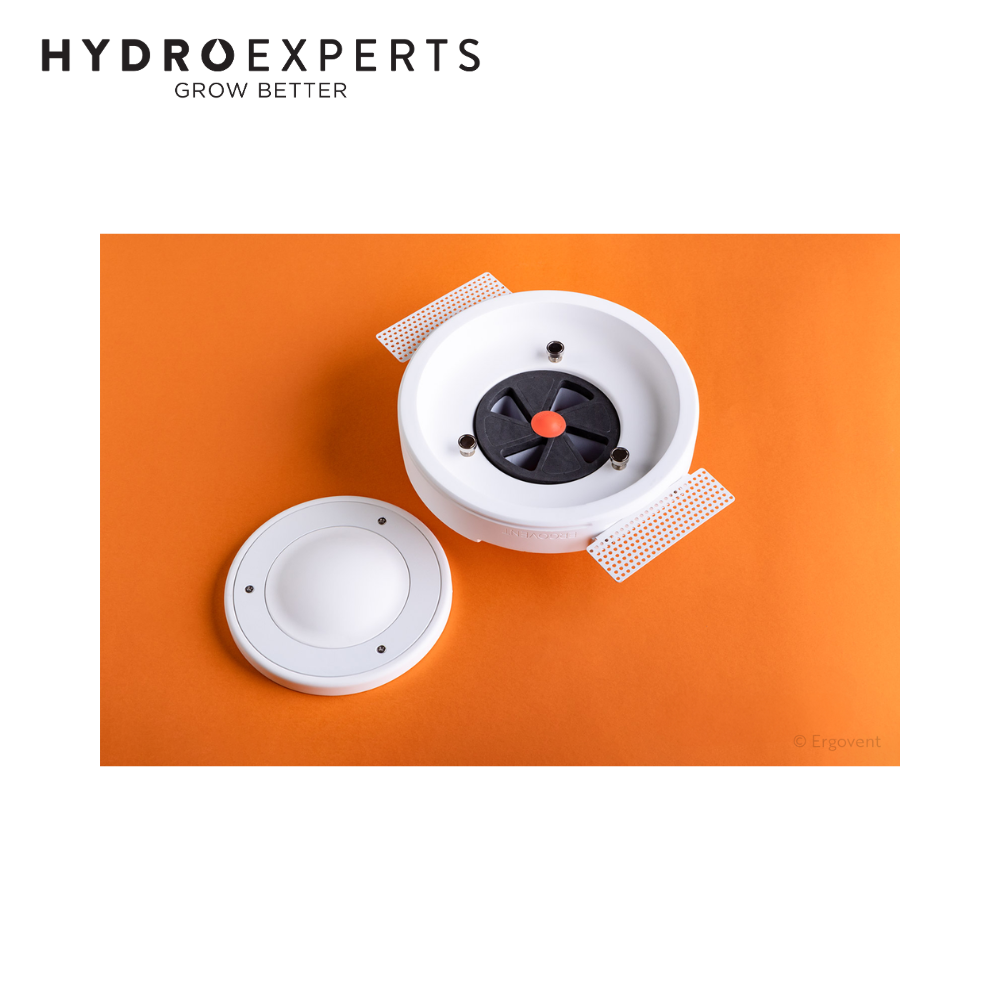

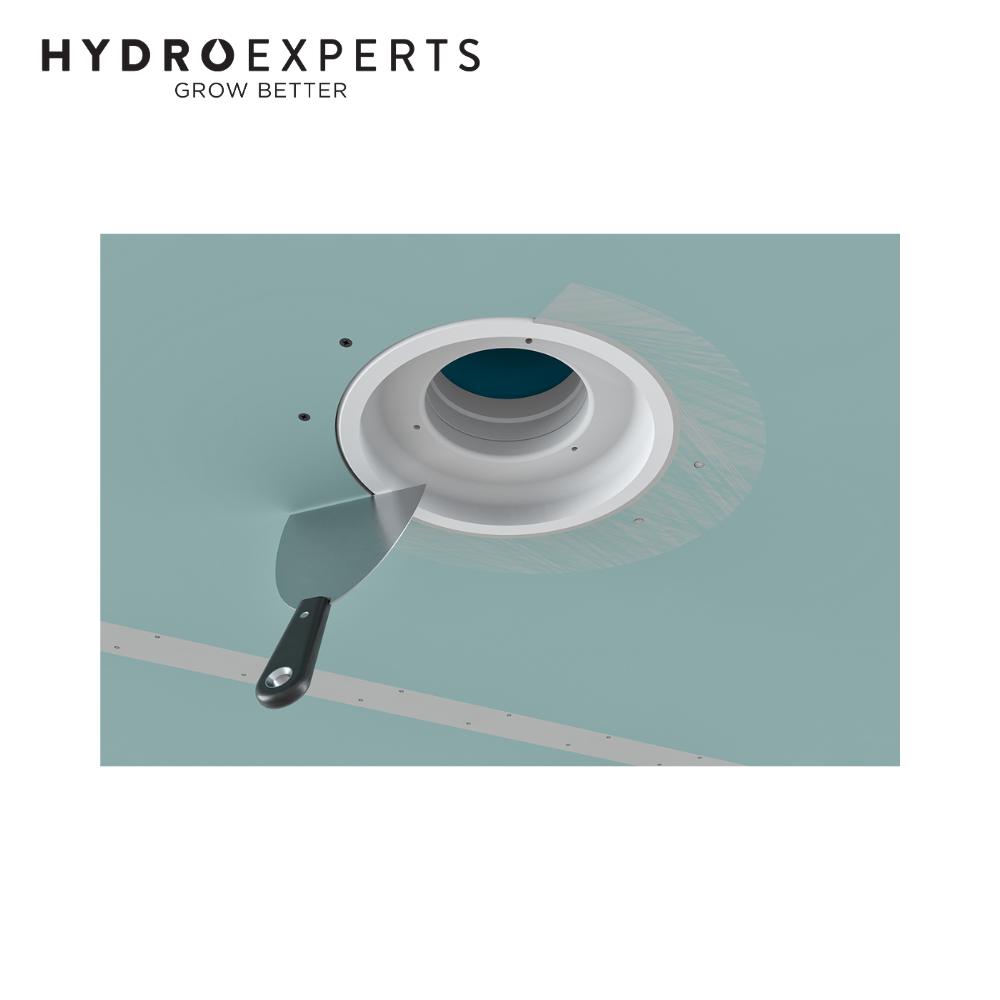

  • Installer friendly: quick mounting system for single or double layer plasterboard, with strong magnetic face for easy removal and cleaning.

Specifications

  • Brand: Ergovent
  • Model: Rondo 100
  • Diffuser Type: Round frameless flush mounted ceiling or wall diffuser
  • Duct Connection Size: 100MM (4" Inch) round
  • Recommended Airflow: up to 90 M³/H per diffuser
  • Material: Gypsum diffuser body with integrated plastic frame pipe
  • Colour: White, fully paintable to match ceiling or wall
  • Installation Location: Plasterboard ceilings and walls, residential and light commercial
  • Application: Suitable for both supply and exhaust ventilation
  • Ceiling Cutout Diameter: approx 17.6CM (176MM)
  • Visible Diffuser Diameter: approx 20.6CM (206MM)
  • Overall Width Including Mounting Wings: approx 23.8CM (238MM)
  • Overall Depth Above Plasterboard: approx 8.9CM (89MM)
  • Suitable Plasterboard Thickness: approx 1.3 to 2.6CM (13 to 26MM), single or double layer

In The Box

  • [1] x Ergovent Rondo 100 - 100MM (4" Inch) | White | Round | Frameless Diffuser
