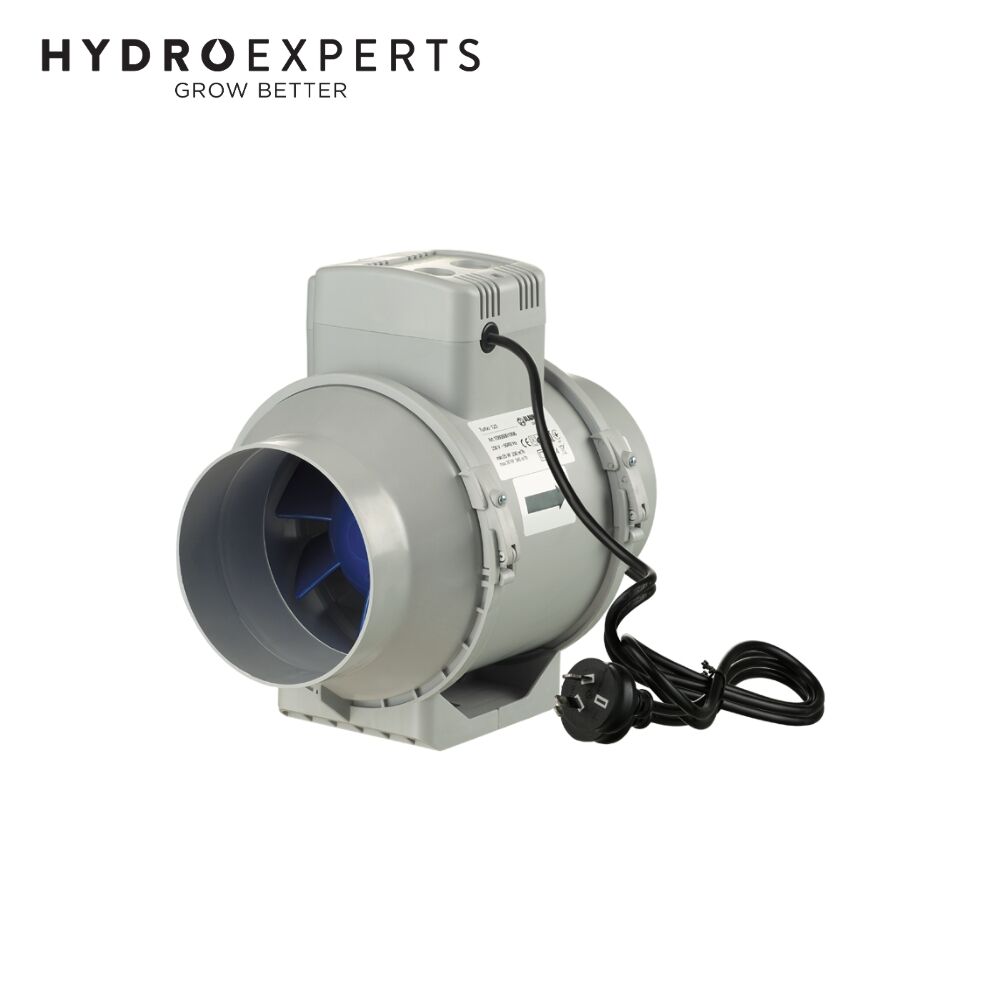

Blauberg Turbo Mixed Flow AC Fan - 125MM (5" Inch) | 130CFM | 2 Speed

SKU: FANS35106

Blauberg

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

Calculate shipping

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

The Blauberg Turbo Mixed Flow AC Fan 125MM is a high-performance mixed-flow inline duct fan engineered to deliver powerful airflow while maintaining low operating noise. Designed for 125mm (5 inch) round ducting, it is ideal for supply and exhaust ventilation systems in residential, commercial and light industrial applications where higher pressure performance is required.

Featuring a two-speed single-phase AC motor, the Turbo 125 allows users to select between two airflow settings of up to 240 m3/h and 350 m3/h. Built with high-quality ball bearings and thermal overload protection, the motor provides reliable long-term performance while supporting installation in any position.

The durable low-flammable polypropylene housing incorporates a removable motor and impeller assembly, allowing maintenance and servicing without dismantling the ductwork. The compact design makes it ideal for installation in confined spaces, including ceiling cavities, bathrooms, kitchens, laundries and other humid environments.

With IPX4 protection, quiet operation from 29 dB(A) and compatibility with external speed controllers, the Blauberg Turbo Mixed Flow AC Fan is an excellent solution for ventilation systems requiring strong airflow, high pressure capability and dependable performance.

Features

Mixed-Flow Impeller - Combines high airflow with increased pressure performance.
Two-Speed AC Motor - Select between low and high speed operation.
High Airflow - Delivers up to 350 m3/h.
Low Noise Operation - Sound levels from only 29 dB(A).
Ball Bearing Motor - Long service life with thermal overload protection.
IPX4 Rated - Suitable for humid environments including bathrooms and laundries.
Service-Friendly Design - Motor and impeller can be removed without dismantling ductwork.
Flexible Installation - Suitable for wall, ceiling or inline mounting in any position.
Speed Controller Compatible - Supports compatible external or integrated speed controllers.
Durable Polypropylene Housing - Manufactured from low-flammable polypropylene.

Specifications

Specification	Speed 1	Speed 2
Model	Turbo 125
Duct Size	125mm (5 Inch)
Power Supply	230V AC, 50/60Hz, Single Phase
Rated Power	25W	29W
Current	0.11A	0.13A
Maximum Airflow	240 m3/h	350 m3/h
Fan Speed	1630 RPM	2300 RPM
Noise Level @ 3m	29 dB(A)	34 dB(A)
Maximum Air Temperature	60°C
Impeller Material	Plastic Mixed-Flow
Casing Material	Low-Flammable Polypropylene
Protection Rating	IPX4
Weight	2.15kg
Control	Integrated 2-Speed Switch
Installation	Wall, Ceiling or Inline (Any Position)

In The Box

[1] x Blauberg Turbo Mixed Flow Fan - 125MM (5" Inch) | 130CFM | 2 Speed

Mounting

Due to compact design, the fan is the ideal solution for mounting in limited spaces, including space behind a false ceiling.
The fan can be installed in any section of the ventilation system from intake to the end of the ductworks.
Wall or ceiling mounting with a mounting plate.
