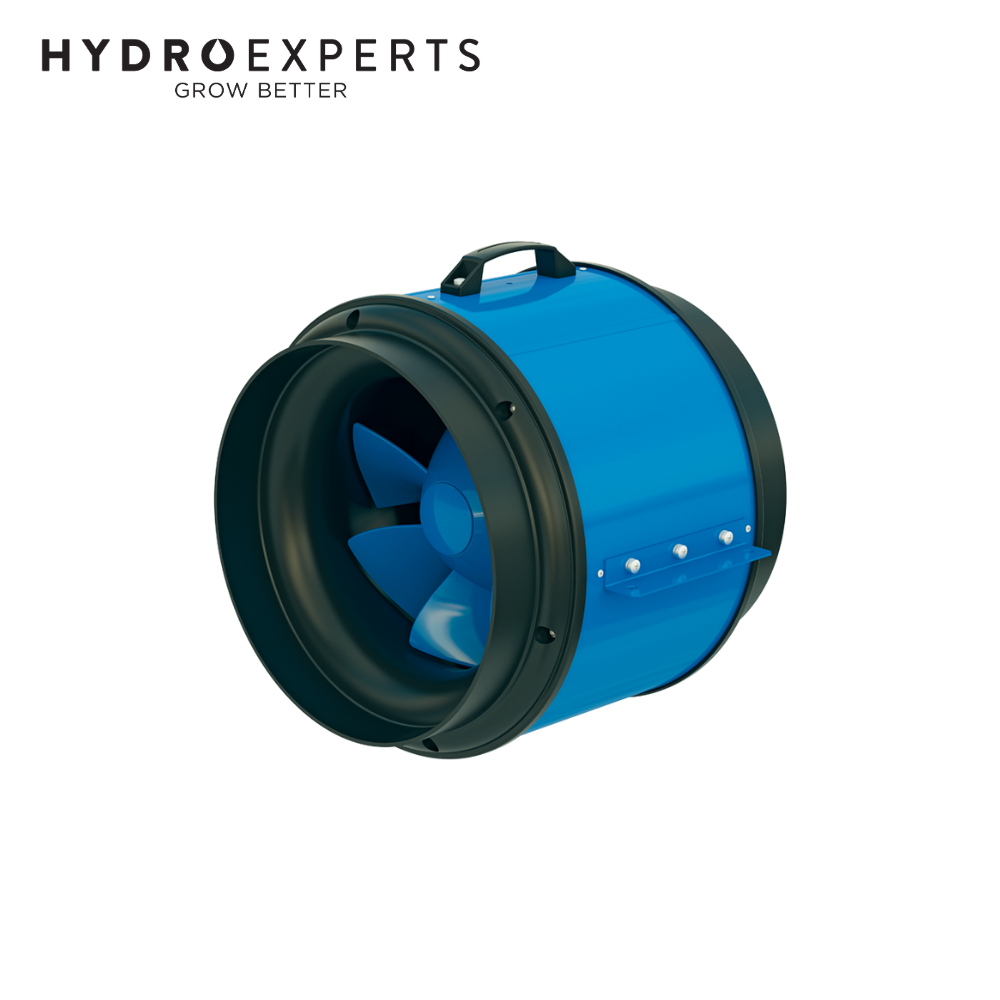

Blauberg Primo 400 Mixed Flow Inline EC Fan - 400MM (16" Inch) | 5700 M³/H | IPX4

SKU: FANS35114
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Blauberg Primo 400 mixed flow inline EC fan is a high-performance solution for commercial and industrial supply and exhaust ventilation. Delivering up to 5700 M3/H through a 400MM (16" Inch) duct, it is ideal for long duct runs, high resistance systems and plant rooms in Australian projects. The high efficiency EC motor provides lower running costs, soft start and smooth speed control compared with conventional AC fans.

A robust plastic casing, IPX4 protection and an operating range from -25°C to +55°C make this fan suitable for demanding commercial environments. With 230V single phase supply, 726W rated power and up to 2580 RPM, it offers strong airflow with sound levels from 33 to 66 dB(A) at 3M. The Primo 400 can be mounted in any position in the duct run, giving HVAC contractors, builders and maintenance teams a reliable inline duct fan for Australian ventilation installations.

Note: This fan is supplied without a power cable. Installation must be carried out by a qualified electrician.

Features

  • High efficiency EC motor for reduced power usage and smooth speed control
  • Mixed flow impeller delivering up to 5700 M3/H through 400MM duct
  • Durable plastic casing with IPX4 protection for commercial and industrial applications
  • 230V single phase supply suitable for typical Australian electrical setups
  • Flexible installation with mounting in any orientation in the duct run

Specifications

  • Model: Blauberg Primo EC 400
  • Fan type: Inline mixed flow EC fan
  • Maximum airflow: 5700 M3/H (approx. 1580 L/s)
  • Duct connection size: 400MM (16" Inch) round
  • Duct diameter: 400MM (40CM) nominal
  • Supply voltage: 230V, single phase, 50Hz
  • Rated power: 726W
  • Unit current: 3.23A
  • Motor type: EC motor, external rotor
  • Impeller type: Mixed flow
  • Maximum fan speed: 2580 RPM
  • Sound pressure level at 3M: 33 to 66 dB(A)
  • Transported air temperature: -25°C to +55°C
  • Ingress protection: IPX4 housing, IP44 motor
  • Casing material: Plastic
  • Installation: Inline duct mounting in any position
  • Application: Commercial and industrial supply and exhaust ventilation

In The Box

  • [1] x Blauberg Primo 400 Mixed Flow Inline EC Fan - 400MM (16" Inch) | 5700 M³/H | IPX4
