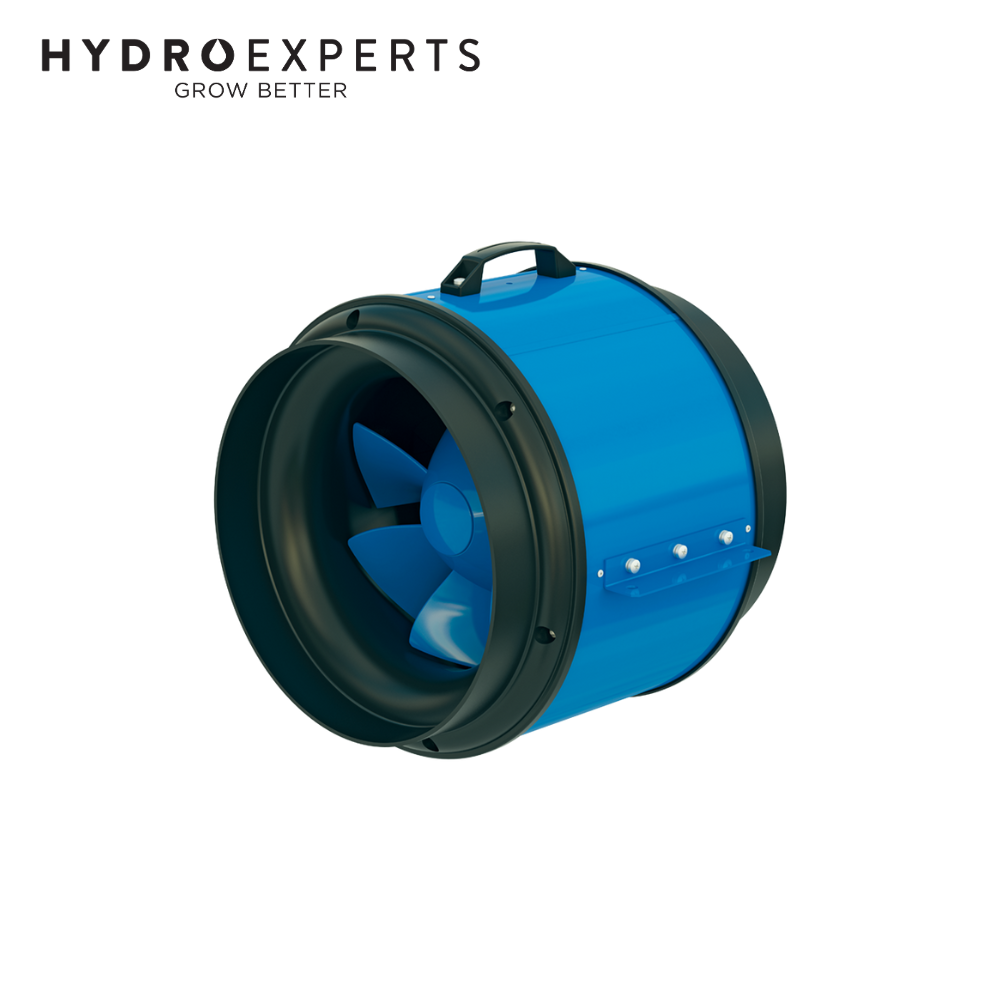

Blauberg Primo 355 Mixed Flow Inline EC Fan - 355MM (14" Inch) | 3685 M³/H | IPX4

SKU: FANS35113
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Blauberg Primo EC 355 mixed flow inline fan is a compact high performance solution for commercial and industrial supply and exhaust ventilation. Delivering up to 3685 M3/H through a 355MM (14" Inch) duct, it is ideal for medium-length duct runs, risers and plant rooms where reliable airflow and static pressure are required. The energy-efficient EC motor reduces running costs and allows smooth 0-10V speed control compared with standard AC fans.

A robust plastic casing with reinforced housing, IPX4 protection and an operating range from -25°C to +55°C makes this fan suitable for demanding Australian conditions. Running on 230V single phase with only 346W rated power, it provides strong performance up to 2470 RPM with sound levels from 33 to 63 dB(A) at 3M. The Primo EC 355 mounts in any position in the duct run, giving HVAC contractors, builders and maintenance teams a reliable inline duct fan for commercial ventilation projects across Australia.

Features

  • High efficiency EC motor for reduced energy use and smooth 0-10V speed control
  • Mixed flow impeller delivering up to 3685 M3/H through 355MM ductwork
  • Compact plastic casing with IPX4 protection for commercial and industrial environments
  • 230V single phase supply compatible with standard Australian electrical installations
  • Flexible mounting in any duct orientation for easy installation on site

Specifications

  • Model: Blauberg Primo EC 355
  • Fan type: Inline mixed flow EC fan
  • Maximum airflow: 3685 M3/H (approx. 1024 L/s)
  • Connected air duct size: 355MM (14" Inch) round
  • Duct connection diameter (D): 350MM (35.0CM)
  • Outer flange diameter (D1): 390MM (39.0CM)
  • Supply voltage: 230V, single phase, 50Hz
  • Rated power: 346W
  • Unit current: 1.54A
  • Motor type: EC motor, external rotor
  • Impeller type: Mixed flow
  • Maximum fan speed: 2470 RPM
  • Sound pressure level at 3M: 33 to 63 dB(A)
  • Transported air temperature: -25°C to +55°C
  • Ingress protection: IPX4 housing, IP44 motor
  • Casing material: Plastic with reinforced housing
  • Installation: Inline duct mounting in any position
  • Typical applications: Commercial and industrial supply and exhaust ventilation

In The Box

  • [1] x Blauberg Primo 355 Mixed Flow Inline EC Fan - 355MM (14" Inch) | 3685 M³/H | IPX4
