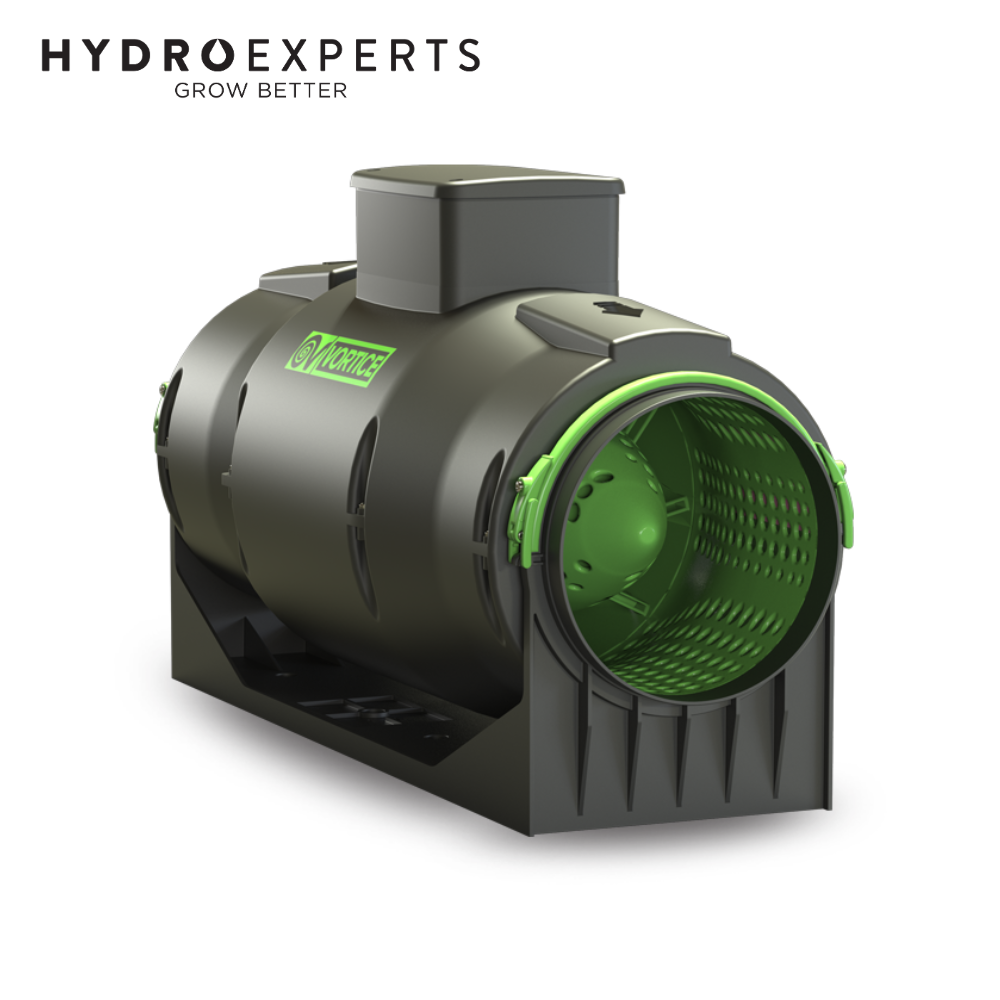

Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 100 | 100MM (4" Inch)

Air Flow 300 M³/H | Power Consumption 23W | IP45

SKU: FANS70101
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice Lineo Quiet ES 100 EC Fan is a high-performance, energy-efficient inline duct fan engineered for silent ventilation in residential and light commercial settings. Made in compliance with ISO EN 11925-2:2010, this fan features a fire-resistant plastic resin enclosure and an internal sound-absorbing coating that significantly reduces noise emission through ducts and into surrounding environments.

Designed with a brushless EC motor mounted on ball bearings, the fan delivers superior reliability and longevity. The speed can be precisely adjusted using either a 0–10V potentiometer or a preset two-speed switch—ideal for flexible air volume control.

With a maximum airflow rate of 300 m³/h, a peak power consumption of only 23W, and a water ingress protection rating of IP45 when installed in-duct, this model is ideal for energy-conscious installations in bathrooms, kitchens, apartments, and small commercial sites.

Applications:

  • Silent bathroom and toilet exhaust
  • Laundry room moisture extraction
  • Kitchen rangehood exhaust (ducted)
  • Apartment/office inline ducting
  • Air handling systems in ceiling voids

Features

  • Whisper Quiet Operation with integrated sound-absorbing casing
  • High-Efficiency EC Motor: Energy-saving and thermally protected
  • Compact 100MM (4” Inch) Size for versatile duct installation
  • Fire-Resistant Construction: E2 class enclosure material (ISO EN 11925-2:2010)
  • IP45 Rated: Water-resistant when installed in-duct
  • Variable Speed Control: Via 0–10V potentiometer or two-speed selector
  • Thermal Fuse Protection for enhanced motor safety
  • Multiple Voltage Options: Compatible with 220–240V, 50–60Hz supply
  • Fully Certified: CE, UKCA, and CB tested for assurance

Specifications

Attribute Value
Air Flow Rate 300 m³/h (83.3 L/s)
Power Consumption Max 23W
Voltage 220–240V
Frequency 50–60Hz
Motor Type EC Brushless Motor
IP Rating IP45 (duct installed)
Diameter 100MM (4" Inch)
Weight 3.8 kg
Noise Level @ 3m 30.9 dB(A) at full speed
Max Pressure 243.2 Pa
Max Temp 60°C (Continuous)
Speed Control 0–10V Potentiometer or 2-speed selector

In The Box

  • [1] x Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 100 | 100MM (4" Inch)
