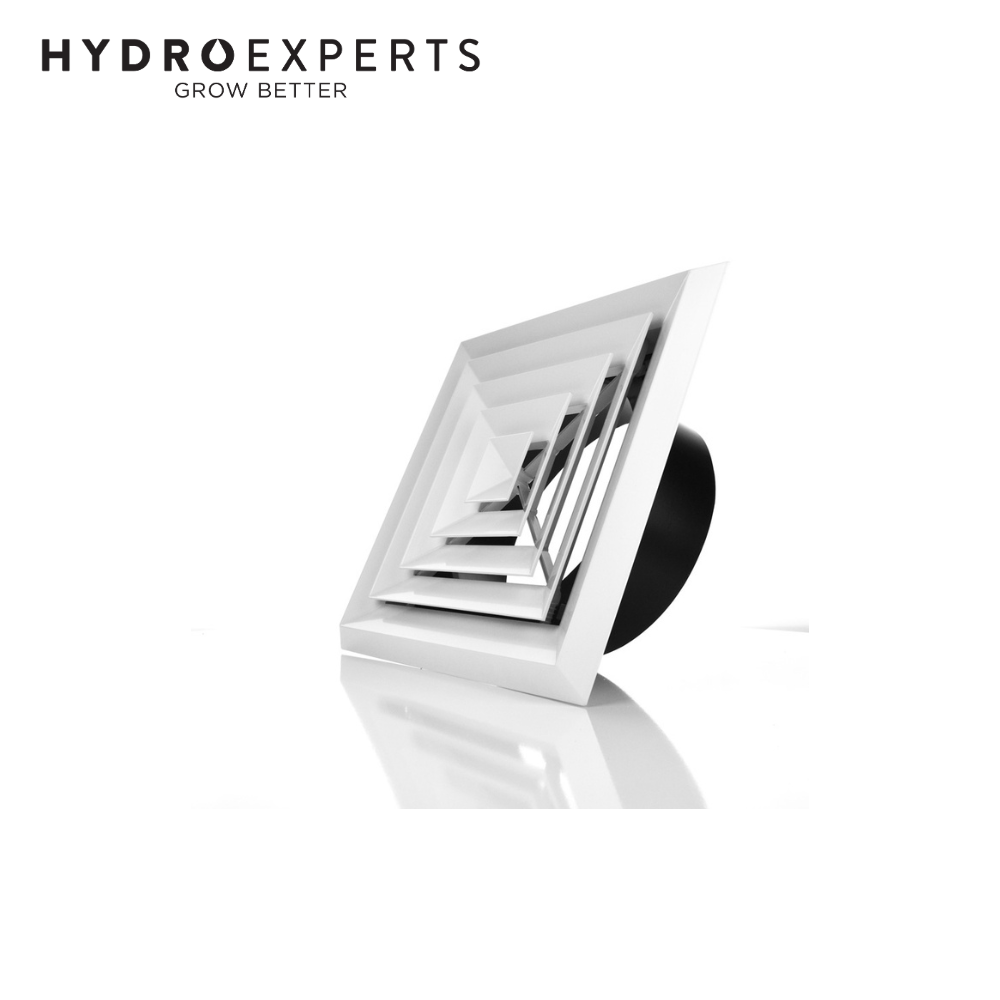

Bevelled Edge Ceiling Air Diffusers 4 Way - 300MM x 300MM

With 200MM / 250MM / 300MM duct connector

SKU: XGRIL12600
|

IN STOCK

ELIGIBLE FOR FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

Bevelled Edge Air Diffusers - 4 Way are designed for ceiling applications where clean airflow distribution, durability and easy maintenance are essential. Made from all aluminium construction, these diffusers are built for long-term use in hydroponic grow rooms, HVAC systems, commercial spaces and general ventilation setups.

Each unit features an easily removable centre, making installation, inspection and ongoing maintenance far more convenient. The 4-way discharge pattern helps distribute air evenly across the room, supporting better airflow management and improved environmental control. This makes them a practical choice for growers and installers looking to maintain balanced air circulation in indoor growing environments.

Available in a range of sizes, these bevelled-edge air diffusers include a duct adaptor and are compatible with multiple duct diameters, depending on the selected model. Their clean ceiling finish and strong aluminium construction make them suitable for both professional installations and DIY ventilation projects across Australia.

Features

  • 4 Way Air Distribution: Designed to direct airflow evenly in four directions for balanced room coverage.
  • Ceiling Application: Ideal for ceiling mounted ventilation systems in grow rooms, commercial areas and ducted air setups.
  • All Aluminium Construction: Lightweight, durable and resistant to corrosion for long service life.
  • Removable Centre Core: Easily removable centre allows simpler installation, cleaning and maintenance.
  • Duct Adaptor Included: Supplied with duct adaptor for easier connection to compatible duct sizes.
  • Multiple Size Options: Available in several panel sizes to suit different airflow and installation requirements.
  • Suitable for Grow Room Ventilation: Helps support controlled airflow in hydroponic and indoor gardening environments.

Specifications

Performance Data: Neck Velocity (m/s)
Neck Size Rating 1.5 2.0 2.5 3.0 3.5
Neck Area (m²) Total Pressure Drop (Pa) 10 15 23 33 44
150 × 150 mm

0.0225 m²
Airflow (L/s) 34 45 56 67 78
NR (dB) — — — — 20
NC (dB) — — — — 19
Min–Max Throw (m) 0.6–1.8 0.9–1.8 1.2–2.1 1.5–2.7 1.5–3.0
225 × 225 mm

0.0506 m²
Airflow (L/s) 76 101 127 152 177
NR (dB) — — — 22 27
NC (dB) — — — 21 26
Min–Max Throw (m) 1.2–2.4 1.5–3.0 1.8–3.7 2.1–4.0 2.4–4.3
300 × 300 mm

0.0900 m²
Airflow (L/s) 135 180 225 270 315
NR (dB) — — 22 28 32
NC (dB) — — 21 27 31
Min–Max Throw (m) 1.5–3.4 1.8–4.0 2.1–4.6 2.7–5.2 3.4–5.5
375 × 375 mm

0.1406 m²
Airflow (L/s) 210 260 345 421 490
NR (dB) — 21 27 31 38
NC (dB) — 20 26 30 37
Min–Max Throw (m) 1.8–4.3 2.1–4.6 2.4–5.5 3.4–6.1 4.3–6.1
450 × 450 mm

0.2025 m²
Airflow (L/s) 304 405 506 607 708
NR (dB) — 25 30 34 40
NC (dB) — 24 29 33 39
Min–Max Throw (m) 2.1–4.9 2.4–5.5 3.7–6.7 4.3–7.3 4.9–7.9

Throw measurements are at 1.5 m/s minimum and 0.65 m/s maximum terminal velocity.

Due to ongoing product development, data and dimensions are subject to change.

In The Box

  • [1] x Bevelled Edge Air Diffusers 4 Way - 300MM x 300MM | Aluminium Ceiling Diffuser
