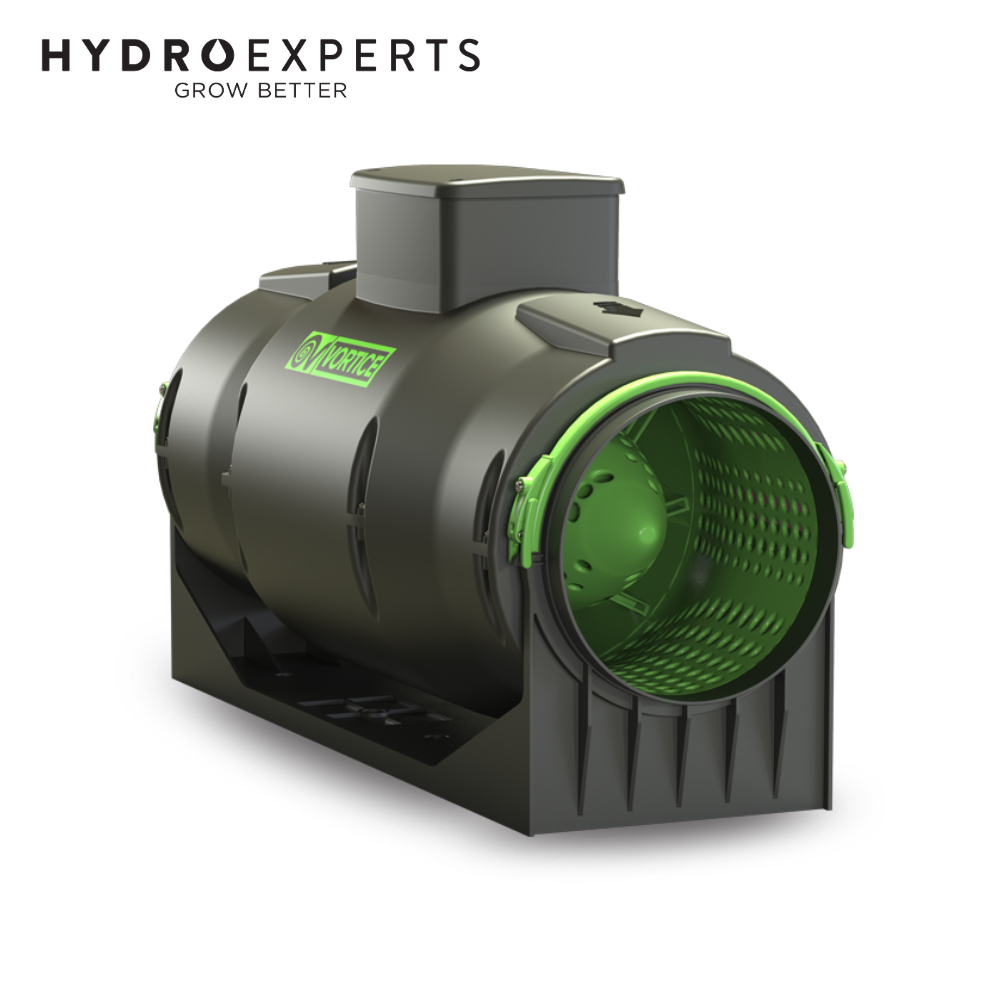

Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 250 | 250MM (10" Inch)

Air Flow 1485 M³/H | Power Consumption 125W | IP45

SKU: FANS70104
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Vortice Lineo Quiet ES 250 EC Fan is a high-capacity mixed flow inline extractor designed for large-scale ducted ventilation in commercial, industrial, or high-volume residential applications across Australia. It delivers exceptional airflow performance of up to 1485 m³/h with low noise output, thanks to its integrated acoustic casing and precision-engineered EC brushless motor.

Built with a fire-resistant E2-class housing and centrifugal impeller, the Lineo Quiet ES 250 provides not only energy-efficient operation but also enhanced safety and durability. The motor is thermally protected and supported by ball bearings for long service life, while its casing is IPX5 rated when installed within ductwork.

This unit is fully compatible with 0–10V potentiometers or two-speed switches, making it highly suitable for automation, BMS, and multi-zone air systems requiring powerful yet quiet extraction.

Applications:

  • Industrial exhaust or fresh air supply
  • Large commercial kitchens and ventilation risers
  • Gymnasiums, auditoriums, public buildings
  • Multi-level ducted ventilation systems
  • Commercial grow rooms or greenhouse ventilation

Features

  • Impressive Air Delivery: 1485 m³/h maximum flow for large spaces
  • High-Efficiency EC Motor: Thermally protected and low power usage
  • IP45 Water Resistant: Ensures safe use in ducted systems
  • Low Noise Output: 41 dB(A) breakout at full speed (3m distance)
  • Speed Adjustable: Use with 0–10V control or 2-speed switching
  • Heavy Duty Build: Fire-rated E2 class plastic casing (ISO EN 11925-2:2010)
  • High Static Pressure: Handles long duct runs (up to 367.8 Pa)
  • Australian Certified: CE, UKCA, CB for full compliance

Specifications

Attribute Value
Air Flow Rate Max 1485 m³/h (412.5 L/s)
Power Consumption Max 125W
Voltage 220–240V
Frequency 50–60Hz
Motor Type EC Brushless Motor (Thermally Protected)
IP Rating IP45
Nominal Diameter 250MM (10" Inch)
Weight 13.4 kg
Noise Level @ 3m 41 dB(A)
Max Static Pressure 367.8 Pa
Operating Temperature Max 50°C
Speed Control Options 0–10V Potentiometer or 2-Speed Switch

In The Box

  • [1] x Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 250 | 250MM (10" Inch)
