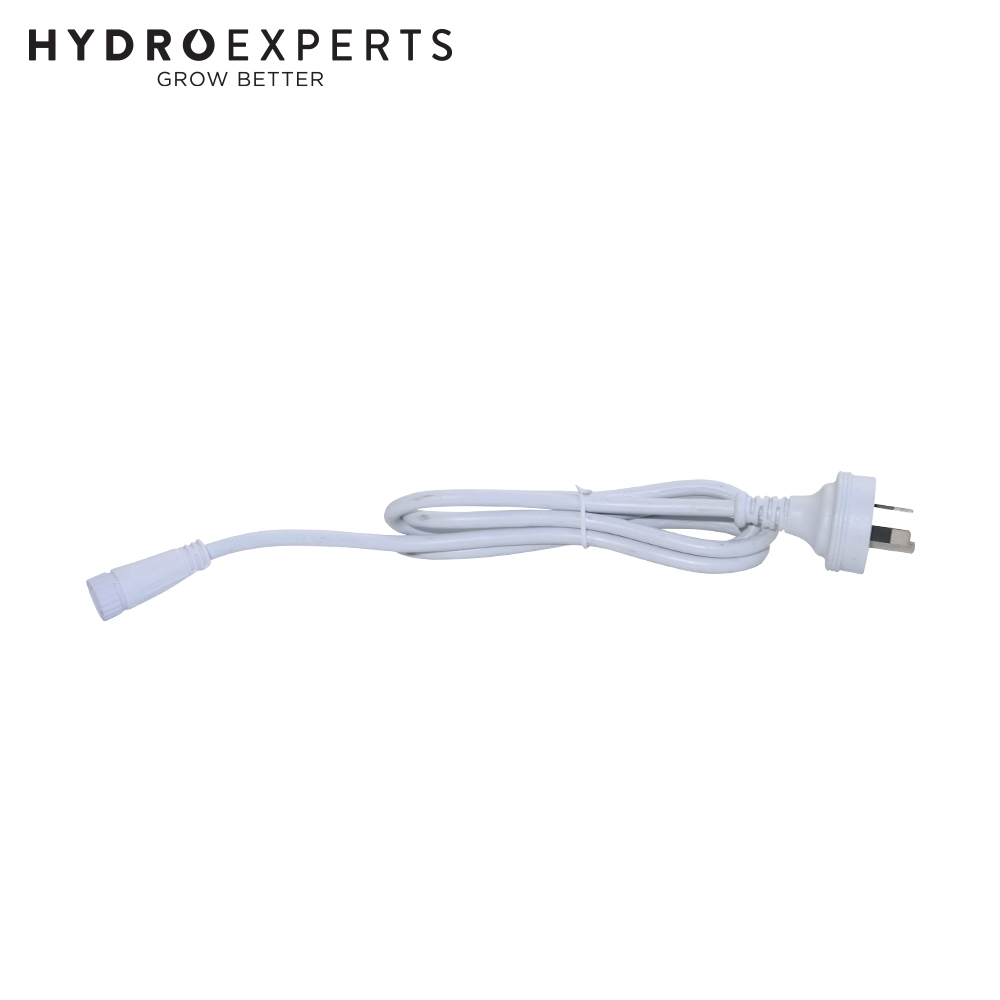

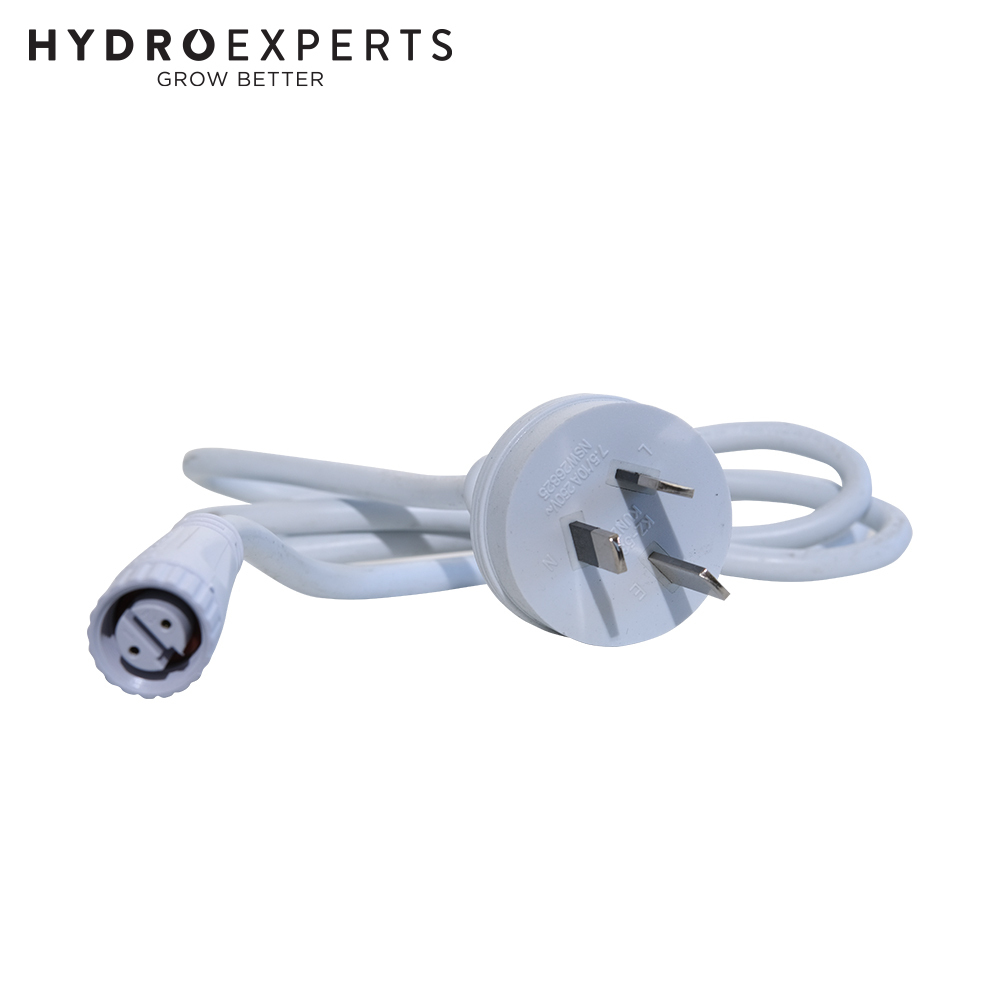

Jnicon 2Pin M15 Female Plug Connector - 1M Long W/ AU Plug | For Outdoor Lighting

High Speed Transmission | IP68 Waterproof | Outdoor Plug

SKU: ACES30421
|

IN STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

High-Speed Transmission M15 IP68 Waterproof Plug Connector For Outdoor Lighting.

  • Water Plug Connectors
  • 10A Max, IP68 protection level
  • 2-8 pins available
  • Approved by UL, CE, TUV and RoHS
  • Screw locking structure
  • Perfect for making the double Luxx Clone light into two singles.



Specifications

  • Cable specification: 0.5mm2~ 1.5mm2 /20~16 AWG
  • Diameter range: Φ4mm ~ Φ9mm
  • Contact diameter × Qty: Φ1.5×3
  • Current rating(A): 10A
  • Operating voltage(AC.V.rms): 500V
  • Withstand voltage(AC.V)1min: 2500V
  • Contact resistance: <3mΩ
  • Insulation resistance: >500MΩ
  • Durability: ≥500 mating & unmating cycles
  • Temperature rating: -40°C~80°C

In The Box

  • [1] x Jnicon 2Pin M15 Female Plug Connector - 1M Long W/ AU Plug | For Outdoor Lighting
