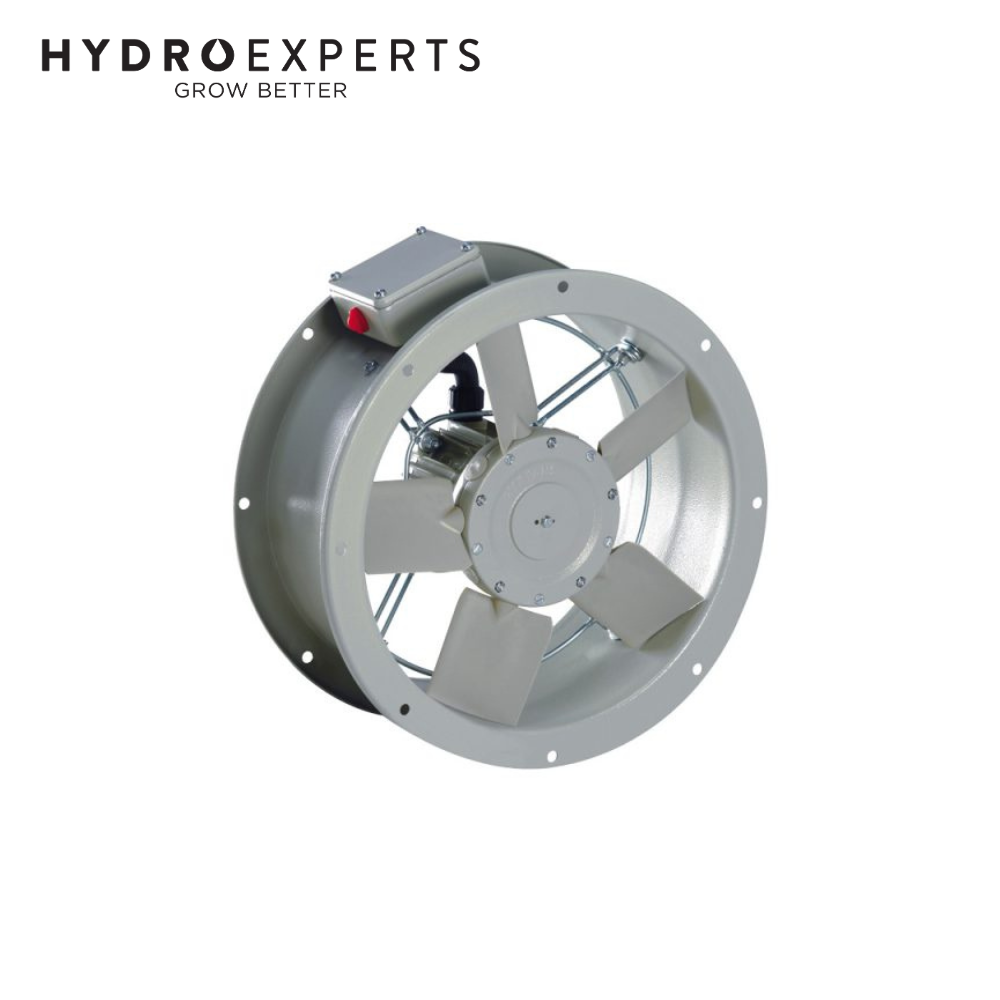

Fantech Short Case In-Line Duct Mounted Axial Fan - SCE454 | 450MM (18" Inch) | 4 Pole | 1 Phase

Air Flow 5789 M³/H | Power Consumption 250W | IP55

SKU: VEFANS86245
|

OUT OF STOCK

FREE SHIPPING

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Short Case In-Line Duct Mounted Axial Fan SCE454 is a high-performance ventilation unit designed for industrial and commercial air movement applications. With a robust galvanised steel housing and a compact short-case design, it’s ideal for ducted exhaust and supply air systems where space and durability are critical.

Delivering an impressive airflow of 5789 M³/H while consuming only 250W of power, the SCE454 axial fan combines efficiency, low noise operation (50 dB(A)), and longevity. This model operates across a wide ambient range from -20°C to +70°C and features an IP55-rated motor for protection against dust and moisture. It can be mounted in any position and is compatible with speed controllers for flexible airflow management. Perfect for factories, warehouses, commercial kitchens, and workshops across Australia, this fan ensures reliable airflow and performance in demanding environments.

Features

  • Compact Short-Case Design - Ideal for tight or space-limited ventilation installations.
  • Durable Galvanised Steel Construction - Finished with a corrosion-resistant polyester epoxy coating.
  • Mountable in Any Position - Flexible installation for supply or exhaust air systems.
  • Wide Operating Range - Performs reliably from -20°C to +70°C ambient temperature.
  • IP55 Rated Motor - Protects against dust ingress and water jets for long service life.
  • Pre-fitted Electrical Junction Box - Simplifies electrical connection and servicing.
  • Speed Controllable - Compatible with VA2.8 electronic speed controller for single-phase operation.
  • Accessory Compatibility - Use with matching flanges, mounting feet, inlet cones, and safety guards.

Specifications

  • Model: SCE454
  • Air Flow: 5789 M³/H
  • Fan Speed: 23 Rev/Sec
  • Noise Level: 50 dB(A) @ 3M
  • Power: 250W
  • Voltage: 230V
  • Phase: 1 Phase
  • Frequency: 50Hz

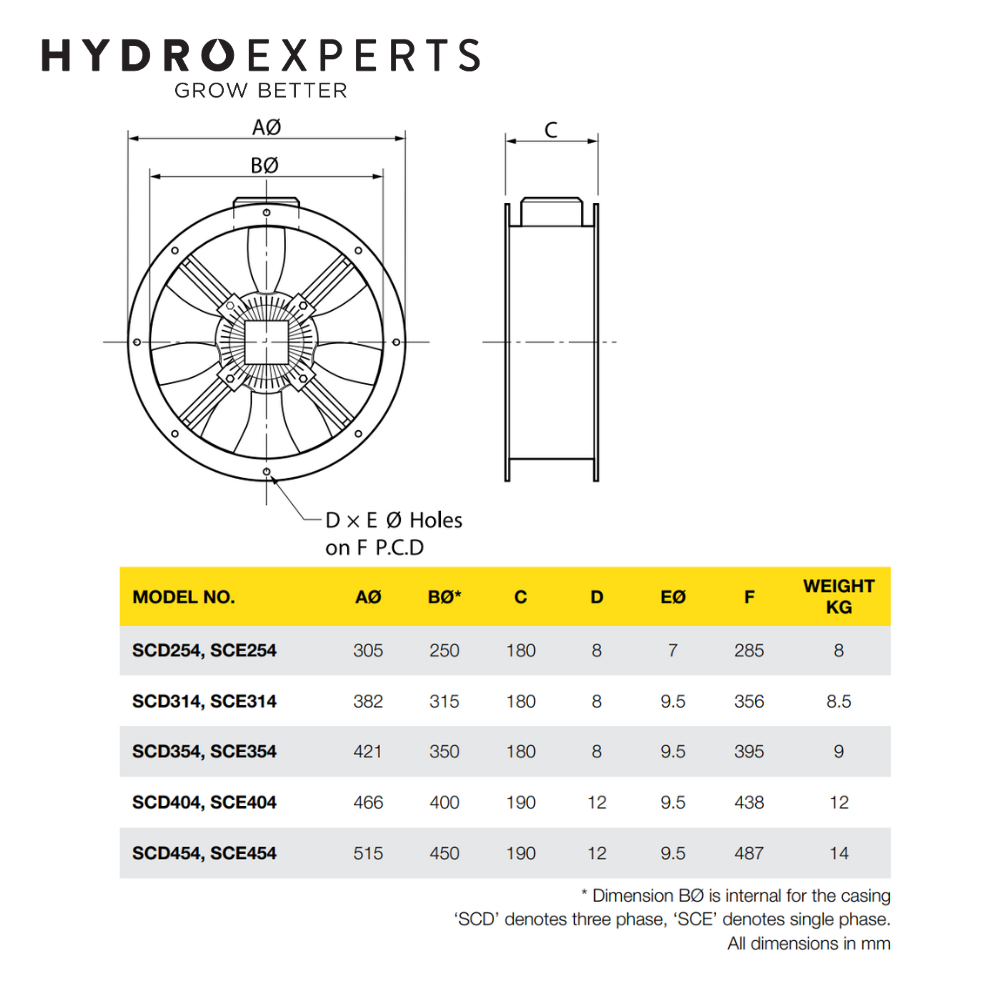

  • Flange / Duct Size: 450MM (18" Inch)
  • IP Rating: IP55
  • Operating Temperature: -20°C to +70°C
  • Weight: 14 KG

In The Box

  • [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCE454 | 450MM (18" Inch) | 4 Pole | 1 Phase
