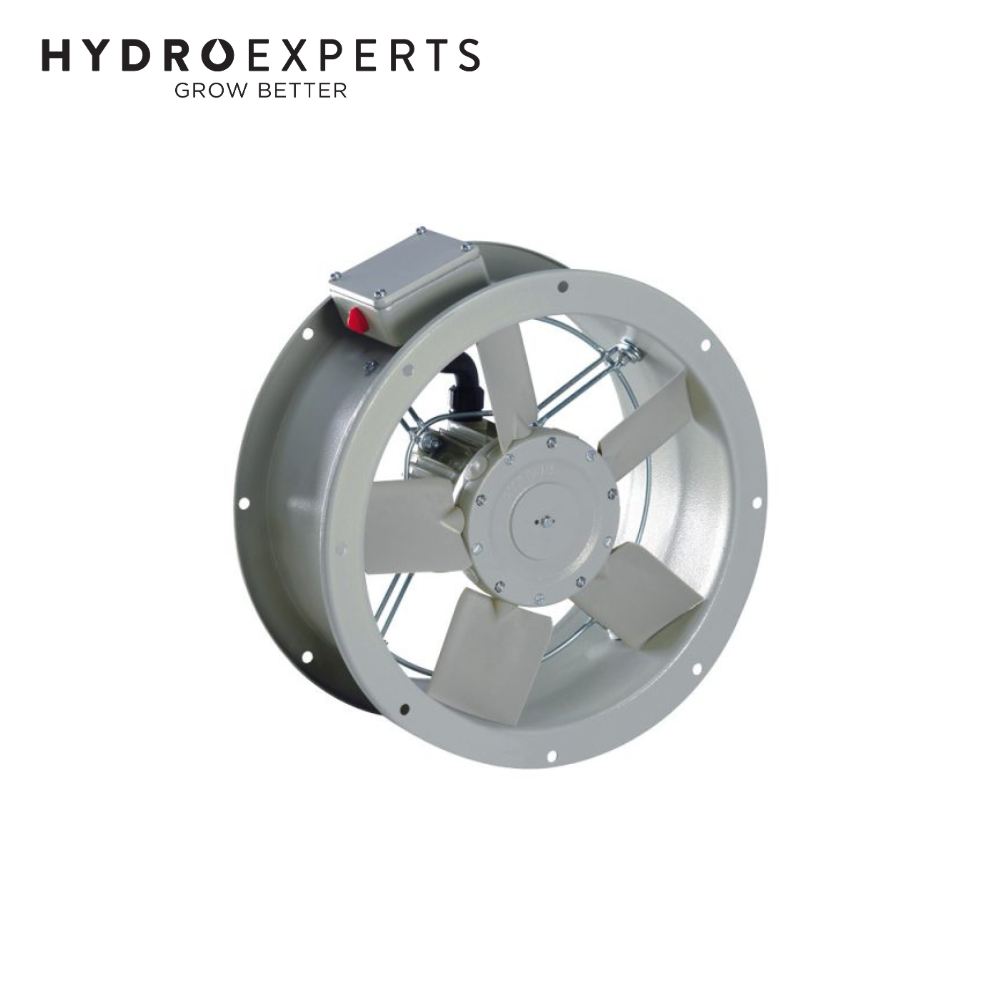

Fantech Short Case In-Line Duct Mounted Axial Fan - SCE354 | 350MM (14" Inch) | 4 Pole | 1 Phase

Air Flow 2686 M³/H | Power Consumption 90W | IP55

SKU: VEFANS86243
|

OUT OF STOCK

FREE SHIPPING

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Short Case In-Line Duct Mounted Axial Fan SCE354 offers powerful and reliable ventilation performance for commercial and industrial ducted systems. Its compact, short-case design and robust galvanised steel construction make it ideal for demanding air movement applications where space and performance are both critical.

Delivering a strong airflow of 2686 M³/H with a quiet noise level of 45 dB(A) and low power consumption of 90W, the SCE354 axial fan is built to last. It can operate in environments ranging from -20°C to +70°C and can be mounted in any position. This fan’s IP55 rating ensures protection against dust and water ingress, making it perfect for use in warehouses, factories, commercial kitchens and other ventilation systems across Australia.

Features

  • Compact Short Case Design - Ideal for installations where space is limited.
  • Durable Galvanised Steel Construction - Finished with a polyester epoxy coating for long-term protection.
  • Mountable in Any Position - Flexible installation options for all duct configurations.
  • Wide Temperature Range - Operates efficiently between -20°C and +70°C.
  • Pre-fitted Electrical Junction Box - Simplifies installation and maintenance.
  • Speed-Controllable - Compatible with VA2.8 electronic speed controller (single phase).
  • Accessory Options - Mounting feet, inlet cones, matching flanges and safety guards available.

Specifications

  • Model: SCE354
  • Air Flow: 2686 M³/H
  • Fan Speed: 23 Rev/Sec
  • Noise Level: 45 dB(A) @ 3M
  • Power: 90W
  • Voltage: 230V
  • Phase: 1 Phase
  • Frequency: 50Hz

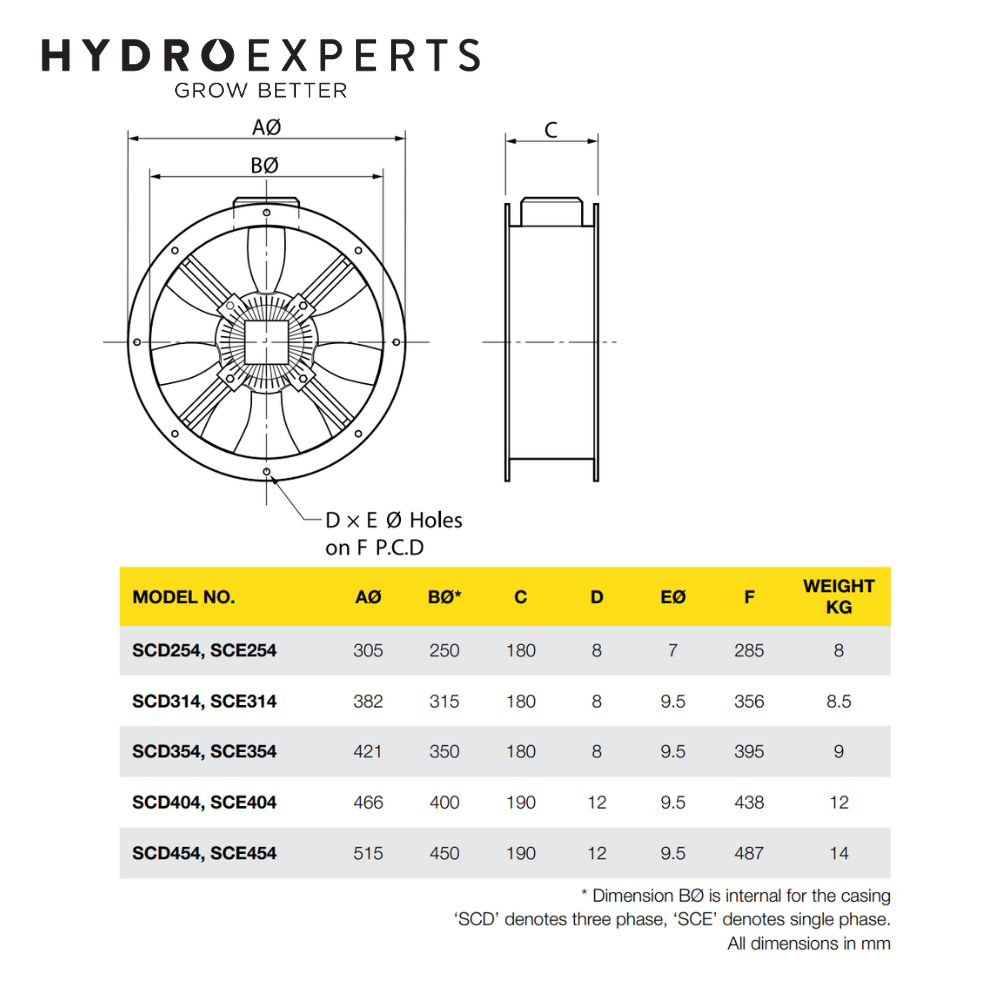

  • Flange / Duct Size: 350MM (14" Inch)
  • IP Rating: IP55
  • Operating Temperature: -20°C to +70°C
  • Weight: 9 KG

In The Box

  • [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCE354 | 350MM (14" Inch) | 4 Pole | 1 Phase
