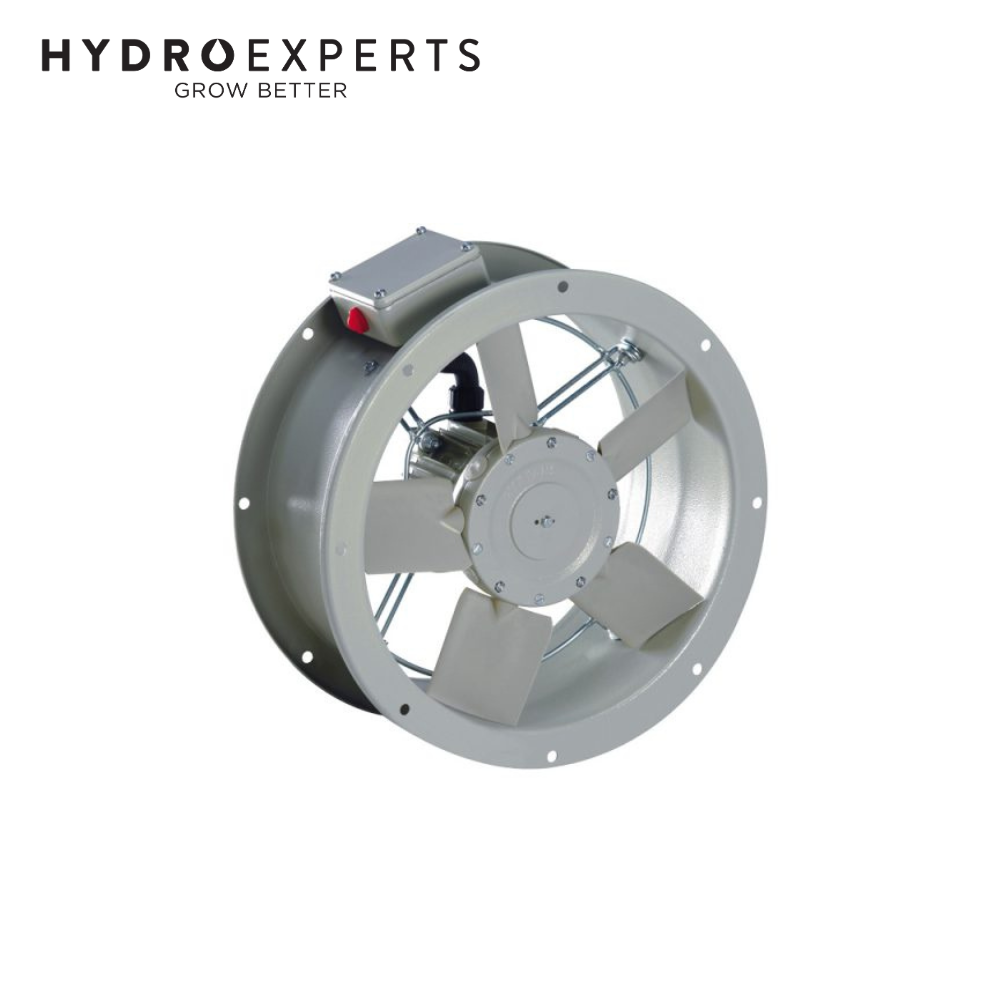

Fantech Short Case In-Line Duct Mounted Axial Fan - SCE314 | 310MM (12" Inch) | 4 Pole | 1 Phase

Air Flow 2099 M³/H | Power Consumption 90W | IP55

SKU: VEFANS86242
|

OUT OF STOCK

FREE SHIPPING

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Short Case In-Line Duct Mounted Axial Fan SCE314 is designed for exhaust and supply air ducted systems in commercial and industrial applications. With a compact short-case design and lightweight yet durable construction, it provides reliable airflow performance in demanding environments.

Constructed from galvanised steel and finished in polyester epoxy coating, the SCE314 axial fan delivers 2099 M³/H airflow with low energy use (90W) and operates at only 42 dB(A). It is built for flexibility, mountable in any position, and operates in ambient conditions from -20°C to +70°C. Rated at IP55, the SCE314 is ideal for warehouses, workshops, commercial kitchens and other ventilation projects across Australia.

Features

  • Compact Short Case Design - Perfect for installations with space constraints.
  • Durable Galvanised Steel Housing - Finished with polyester epoxy for long life.
  • Flexible Mounting Options - Can be installed in any position.
  • Wide Temperature Range - Operates from -20°C to +70°C.
  • Electrical Junction Box - Pre-installed for quick and easy connection.
  • Speed-Controllable - Compatible with VA2.8 controller for single-phase systems.
  • Optional Accessories - Mounting feet, inlet cones, flanges, and safety guards available.

Specifications

  • Model: SCE314
  • Air Flow: 2099 M³/H
  • Fan Speed: 23 Rev/Sec
  • Noise Level: 42 dB(A) @ 3M
  • Power: 90 W
  • Voltage: 230 V
  • Phase: 1 Phase
  • Frequency: 50 Hz

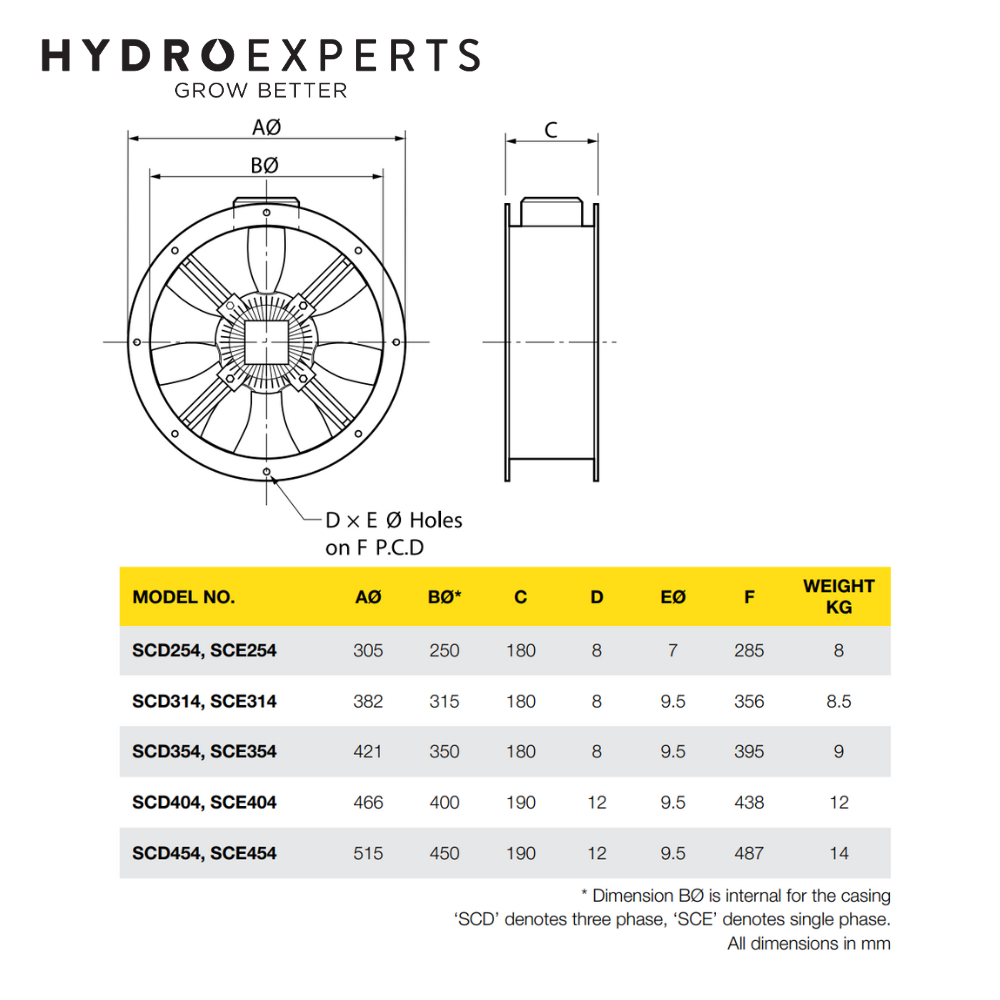

  • Flange / Duct Size: 315 MM (12" Inch)
  • IP Rating: IP55
  • Operating Temperature: -20°C to +70°C
  • Weight: 8.5 KG

In The Box

  • [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCE314 | 310MM (12" Inch) | 4 Pole | 1 Phase
