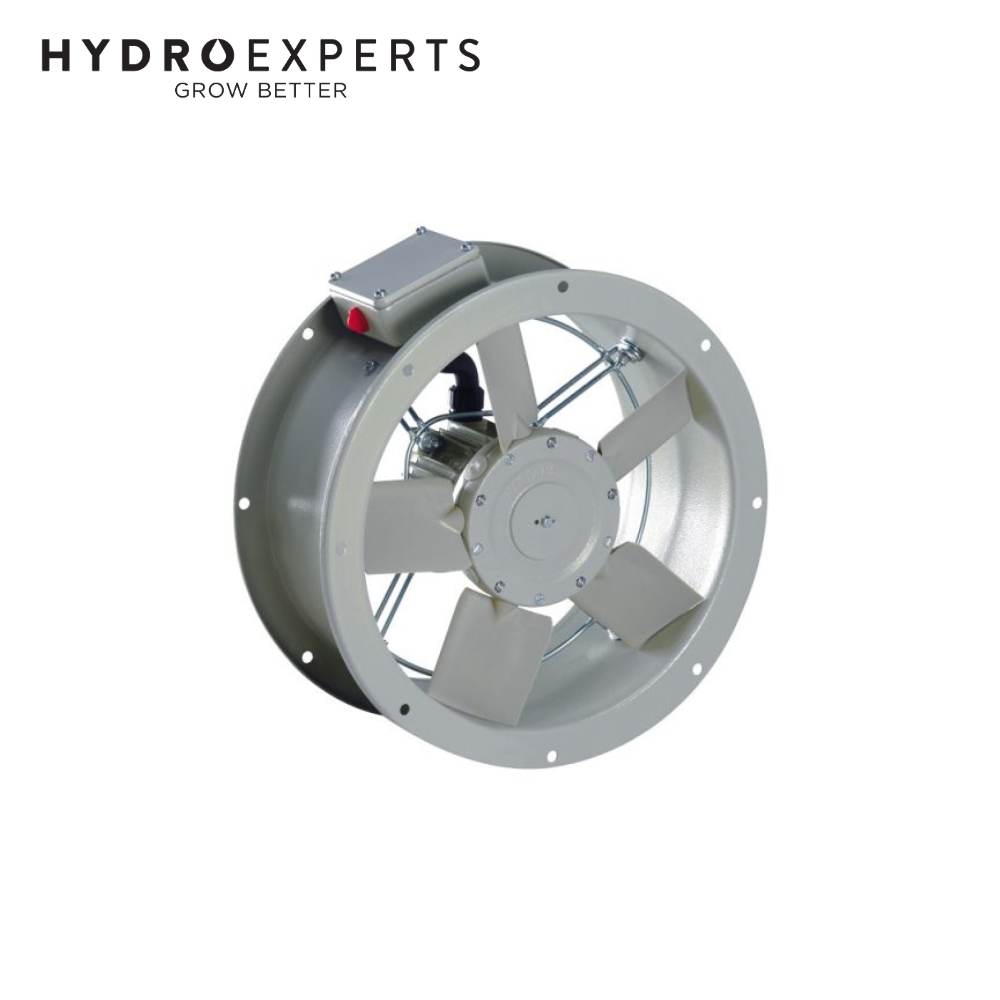

Fantech Short Case In-Line Duct Mounted Axial Fan - SCE254 | 250MM (10" Inch) | 4 Pole | 1 Phase

Air Flow 983 M³/H | Power Consumption 90W | IP55

SKU: VEFANS86241
|

OUT OF STOCK

FREE SHIPPING

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Short Case In-Line Duct Mounted Axial Fan SCE254 is engineered for reliable performance in commercial and industrial ventilation systems. With its compact and lightweight design, this fan is perfect for both exhaust and supply air ducted applications. Built from high-quality materials, it features a robust galvanised steel casing with a durable polyester epoxy finish, ensuring long-lasting operation even in harsh environments.

The SCE254 axial fan delivers an impressive airflow of 983 M³/H with low power consumption (90W) and operates quietly at 39 dB(A). Suitable for a wide range of ventilation projects, it can be mounted in any position and withstands ambient temperatures from -20°C to +70°C. With an IP55 rating and compatibility with electronic speed controllers, this model is a trusted choice for professional installers and contractors across Australia.

Features

  • Compact Design - Short case construction ideal for space-limited installations.
  • Lightweight but Robust - Durable galvanised steel casing with epoxy finish.
  • Flexible Mounting - Can be mounted in any position for versatile installation.
  • High Operating Range - Functions in ambient temperatures from -20°C to +70°C.
  • Electrical Junction Box - Pre-fitted for easy connection and installation.
  • Speed Controllable - Compatible with VA2.8 electronic speed controller (single phase).
  • Wide Accessory Range - Options include mounting feet, inlet cones, flanges, and guards.

Specifications

  • Model: SCE254
  • Air Flow: 983 M³/H
  • Fan Speed: 23 Rev/Sec
  • Noise Level: 39 dB(A) @ 3M
  • Power: 90W
  • Voltage: 230V
  • Phase: 1 Phase
  • Frequency: 50Hz

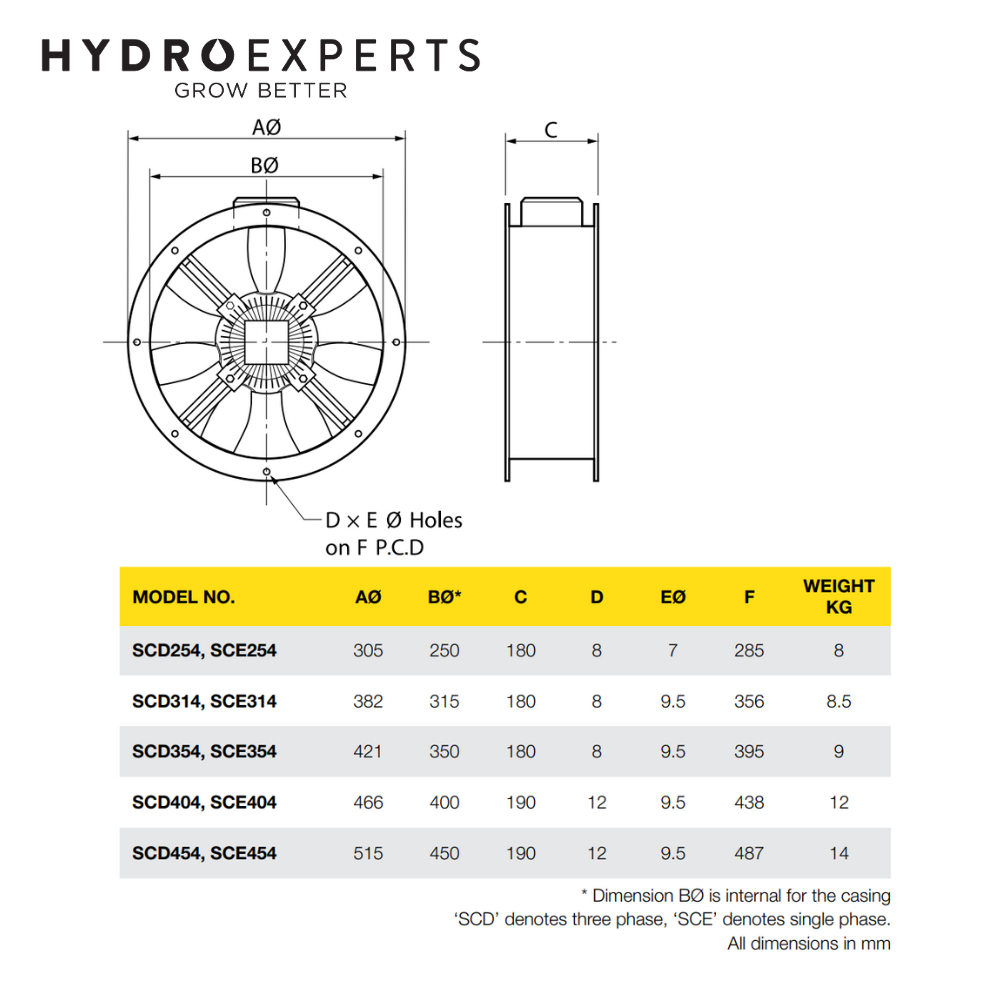

  • Flange / Duct Size: 250MM (10" Inch)
  • IP Rating: IP55
  • Operating Temperature: -20°C to +70°C
  • Weight: 8 KG

In The Box

  • [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCE254 | 250MM (10" Inch) | 4 Pole | 1 Phase
