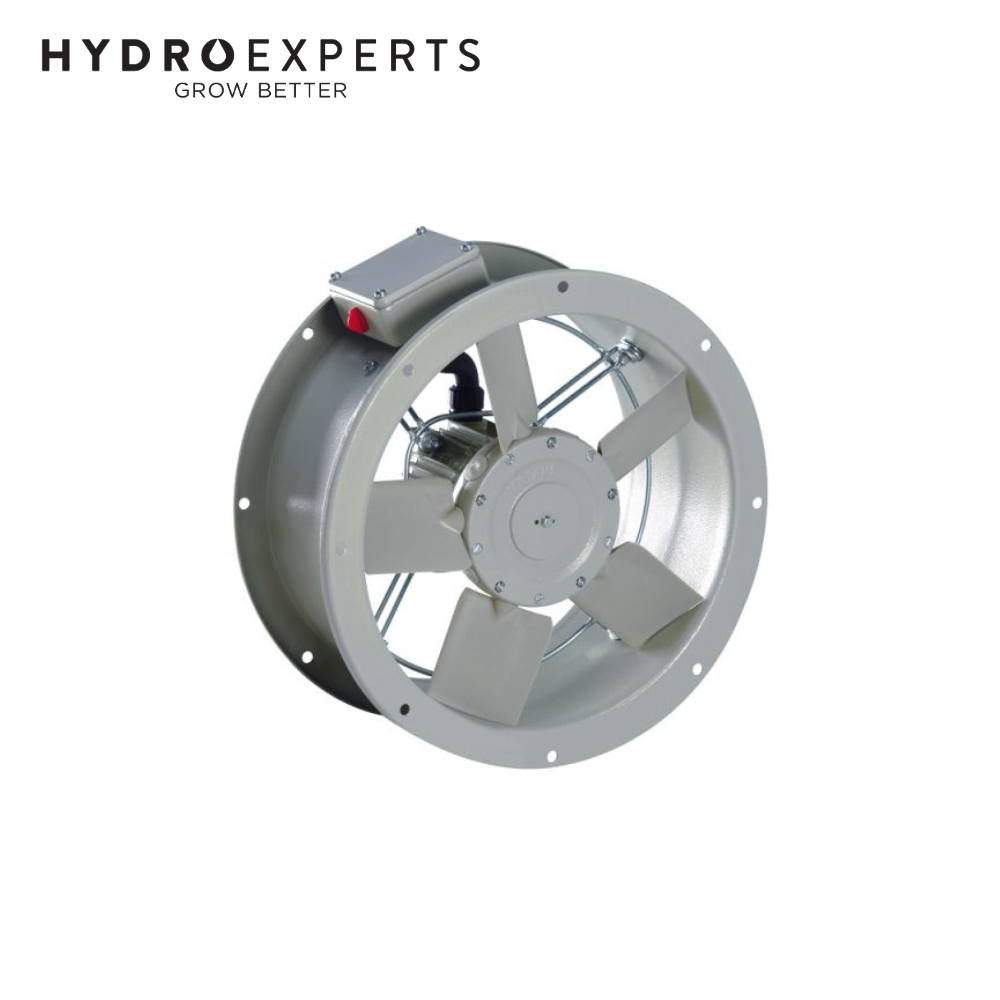

Fantech Short Case In-Line Duct Mounted Axial Fan - SCD454 | 450MM (18" Inch) | 4 Pole | 3 Phase

Air Flow 5789 M³/H | Power Consumption 370W | IP55

SKU: VEFANS86235
|

OUT OF STOCK

FREE SHIPPING

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Short Case In-Line Duct Mounted Axial Fan SCD454 is engineered for high-performance air movement in demanding commercial and industrial environments. This 450MM (18" Inch) 4-pole 3-phase axial fan delivers a powerful airflow of 5789 M³/H, ensuring reliable ventilation through ducted systems. Its galvanised steel casing with a durable polyester epoxy finish provides long-lasting corrosion resistance, while the light-weight but robust design makes it ideal for compact installations. Capable of operating in ambient temperatures from -20°C to +70°C, the SCD454 is a dependable solution for exhausting or supplying air across factories, warehouses, workshops, and other large spaces. IP55-rated motor protection ensures durability and performance even in harsh conditions.

Features

  • Compact short case design – Ideal for space-constrained ducted systems.
  • Light-weight but robust construction – Ensures easy installation and long-term reliability.
  • 2-speed star/delta 415V 3-phase motor – High efficiency and flexible operation.
  • Galvanised steel casing with polyester epoxy finish for corrosion protection.
  • GRP impeller blades – High strength with optional aluminium blades available.
  • Speed controllable via variable speed drive or transformer control.
  • IP55 motor enclosure – Suitable for demanding industrial environments.
  • Operates in ambient temperatures from -20°C to +70°C.
  • Mountable in any position with multiple compatible ancillary accessories.
  • Integral thermal protection and tested to ISO 5801:2004 and BS848:1985 standards.

Specifications

  • Model: SCD454
  • Fan Diameter: 450MM (18" Inch)
  • Air Flow: 5789 M³/H
  • Motor Type: 3 Phase, 4 Pole
  • Speed: 23 rev/sec
  • Power Consumption: 0.37 kW (370 W)
  • Current: 1.40 A
  • Average Sound Level: 50 dB(A) @ 3m
  • Weight: 14 kg
  • Operating Temperature: -20°C to +70°C
  • Construction: Galvanised steel with polyester epoxy finish
  • Impeller Blades: GRP (optional aluminium)
  • Enclosure Rating: IP55
  • Mounting: Any position
  • Thermal Protection: Integral
  • Standards: ISO 5801: 2004 / BS848 Part 2

In The Box

  • [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCD454 | 450MM (18" Inch) | 4 Pole | 3 Phase
