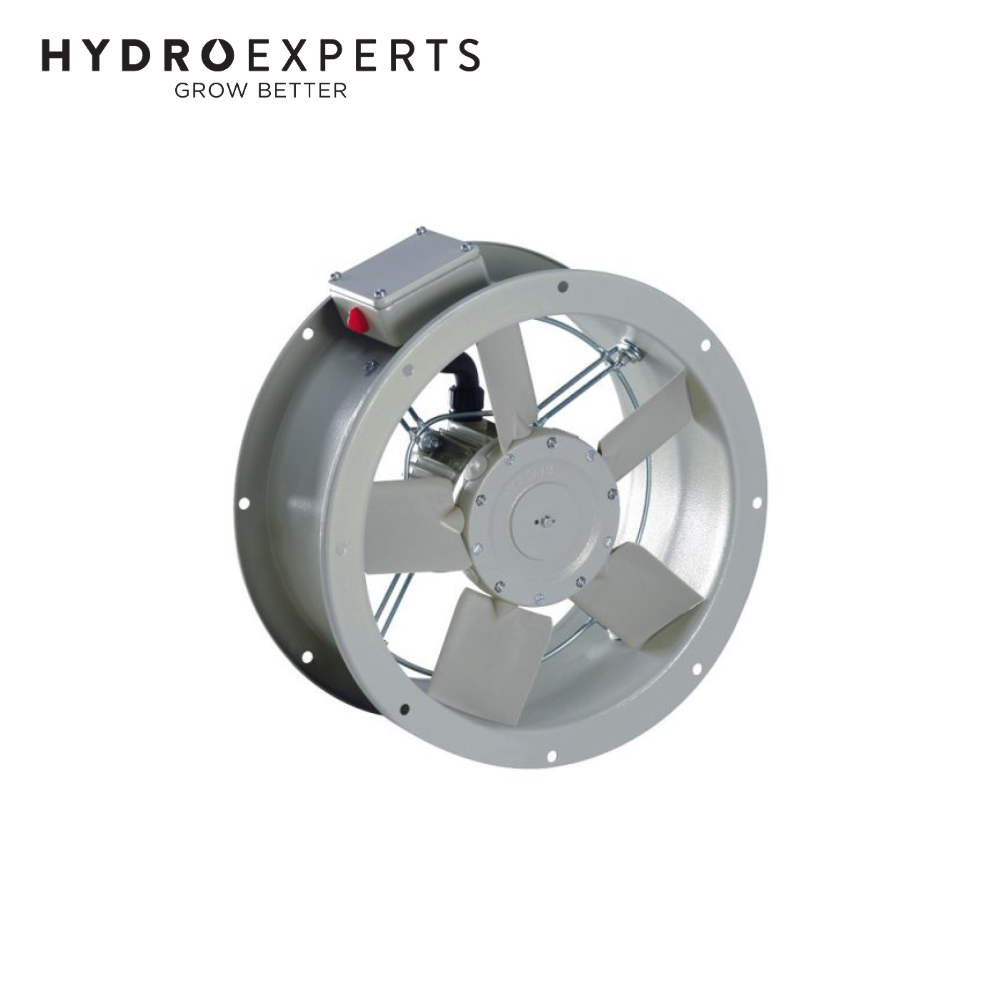

Fantech Short Case In-Line Duct Mounted Axial Fan - SCD404 | 400MM (16" Inch) | 4 Pole | 3 Phase

Air Flow 4777 M³/H | Power Consumption 370W | IP55

SKU: VEFANS86234
|

OUT OF STOCK

FREE SHIPPING

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Short Case In-Line Axial Fan SCD404 is a powerful and reliable duct-mounted fan designed for commercial and industrial ventilation systems. Equipped with a 400MM (16" Inch) 4 Pole 3 Phase motor, it delivers an impressive airflow of 4777 M³/H with a low sound level of 47 dB(A) @ 3m.

Constructed with a galvanised steel casing and a polyester epoxy finish, this fan offers long-lasting durability and protection against corrosion. The GRP impeller blades ensure strength and efficiency, while the IP55 enclosure provides excellent protection against dust and water ingress.

The SCD404 features a 2-speed star/delta motor, integral thermal protection, and sealed-for-life ball bearings for dependable, low-maintenance operation. It is suitable for ducted exhaust or supply air systems in applications such as factories, warehouses, workshops, and plant rooms.

Tested to ISO 5801:2004 for airflow and BS848 for noise performance, the Fantech Short Case Axial Fan range provides a compact, energy-efficient, and high-performing ventilation solution.

Features

  • Compact short case design - Allows easy installation in ducted systems.
  • Robust construction - Galvanised steel casing with a durable epoxy coating.
  • Efficient air movement - Delivers 4777 M³/H airflow for strong ventilation performance.
  • 2-speed star/delta motor - Ideal for variable air control on 3 phase systems.
  • Integral thermal protection - Ensures safe and reliable motor operation.
  • Mountable in any position - Offers flexible installation options.
  • GRP impeller blades - Lightweight and durable for optimal efficiency.
  • IP55-rated enclosure - Dust and water-resistant design for tough environments.
  • Compliant with ISO and BS standards - Fully tested for airflow and noise levels.

Specifications

  • Model: SCD404
  • Air Flow: 4777 M³/H
  • Power Consumption: 370W
  • Motor Type: 3 Phase, 4 Pole
  • Sound Level: 47 dB(A) @ 3m
  • Operating Temperature: -20°C to +70°C

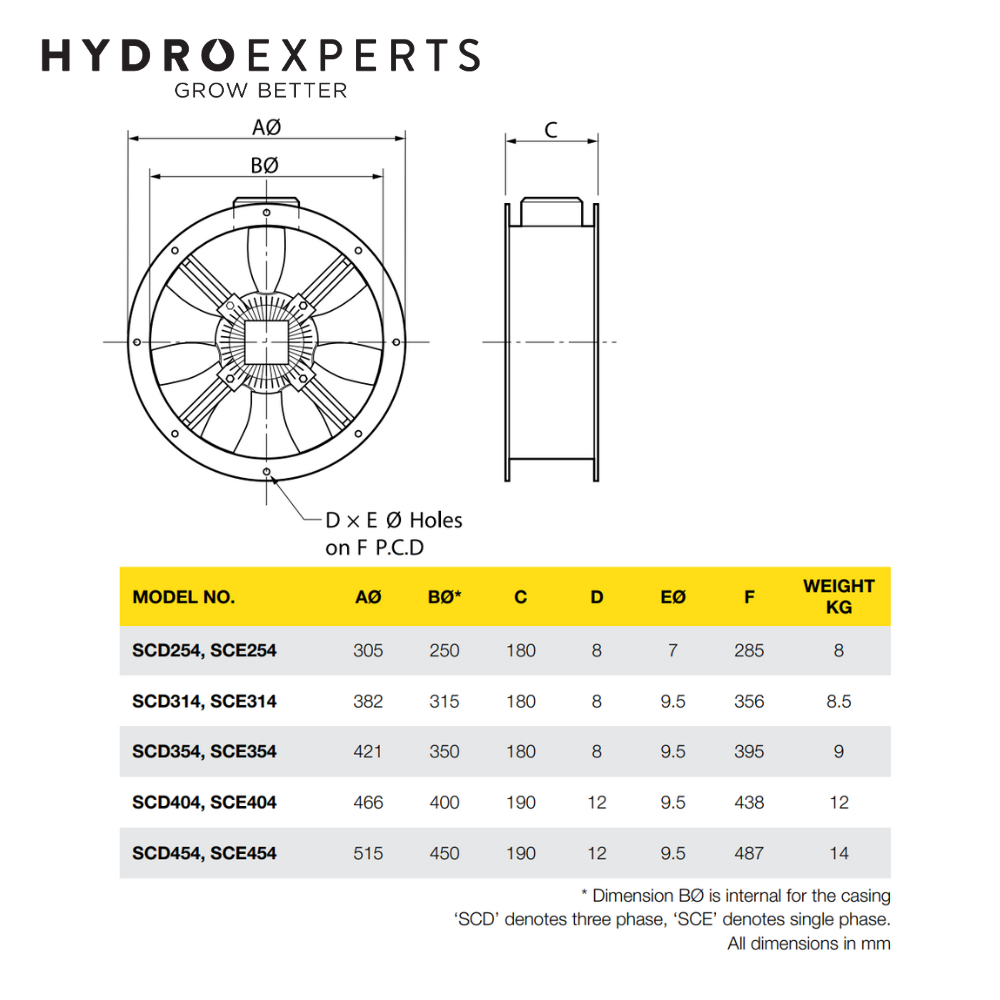

  • Flange Size: 400MM (16" Inch)
  • Casing Material: Galvanised Steel with Polyester Epoxy Finish
  • Impeller: GRP (Glass Reinforced Plastic)
  • Weight: 12.0 kg
  • IP Rating: IP55
  • Thermal Protection: Integral
  • Bearings: Sealed-for-life ball bearings
  • Mounting: Suitable for any position
  • Standards: ISO 5801:2004, BS848: Part 2, 1985

In The Box

  • [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCD404 | 400MM (16" Inch) | 4 Pole | 3 Phase
