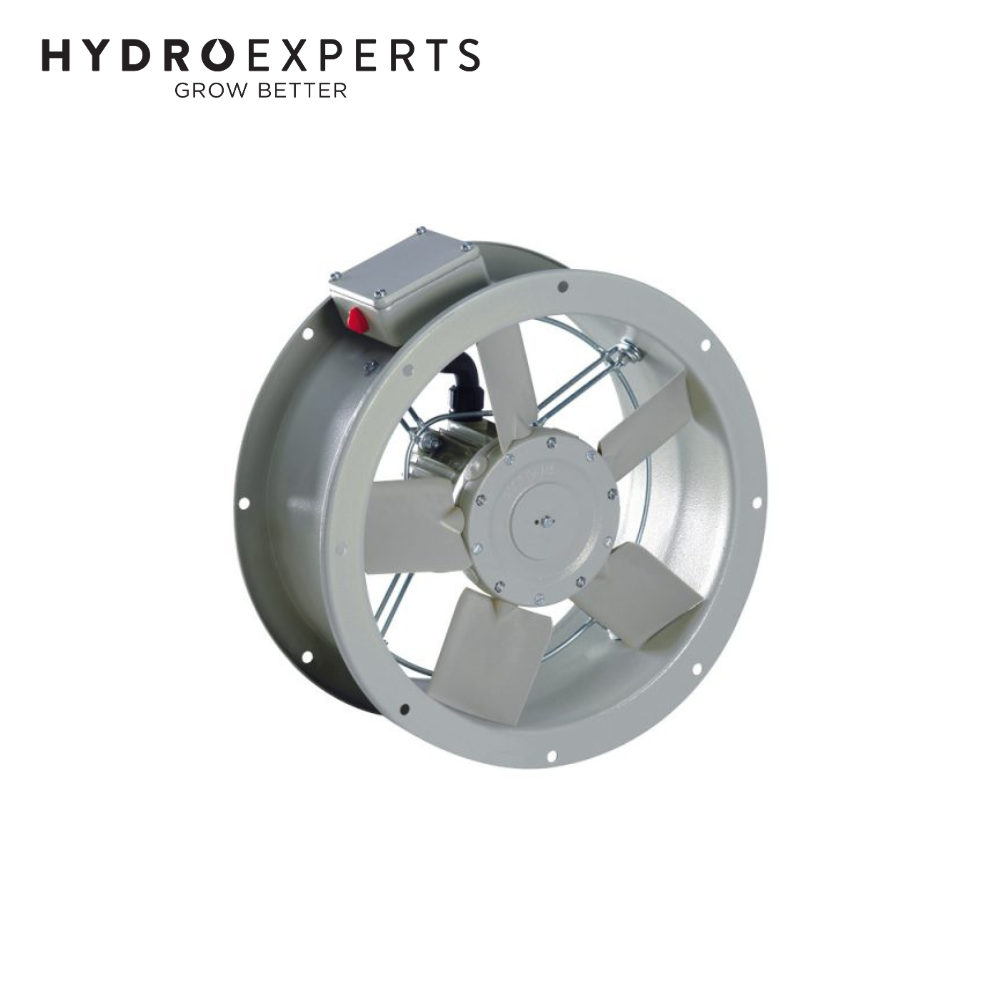

Fantech Short Case In-Line Duct Mounted Axial Fan - SCD404 | 400MM (16" Inch) | 4 Pole | 1 Phase

Air Flow 4777 M³/H | Power Consumption 250W | IP55

SKU: VEFANS86244
|

OUT OF STOCK

FREE SHIPPING

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Short Case In-Line Duct Mounted Axial Fan SCE404 delivers exceptional air movement performance for commercial and industrial ventilation systems. Featuring a compact short-case body with robust galvanised steel construction, this fan is engineered to provide efficient exhaust and supply air ventilation in demanding environments.

With a powerful airflow capacity of 4777 M³/H and a durable IP55-rated motor, the SCE404 axial fan is built to withstand harsh operating conditions from -20°C to +70°C. Despite its strong performance, it operates quietly at 47 dB(A) and consumes only 250W of power. Ideal for warehouses, workshops, commercial kitchens, factories and other ventilation applications across Australia, the SCE404 offers reliability, flexibility, and easy installation in any mounting position.

Features

  • Compact Short-Case Design - Space-saving construction ideal for ducted ventilation systems.
  • Galvanised Steel Casing - Tough build finished in durable polyester epoxy for corrosion resistance.
  • Mountable in Any Position - Flexible installation for supply or exhaust configurations.
  • Wide Temperature Range - Operates efficiently between -20°C and +70°C.
  • Pre-fitted Junction Box - Simplifies electrical installation and servicing.
  • Speed Controllable - Compatible with VA2.8 electronic speed controller for single-phase use.
  • Optional Accessories - Matching flanges, inlet cones, mounting feet, and finger guards available.

Specifications

  • Model: SCE404
  • Air Flow: 4777 M³/H
  • Fan Speed: 23 Rev/Sec
  • Noise Level: 47 dB(A) @ 3M
  • Power: 250W
  • Voltage: 230V
  • Phase: 1 Phase
  • Frequency: 50Hz

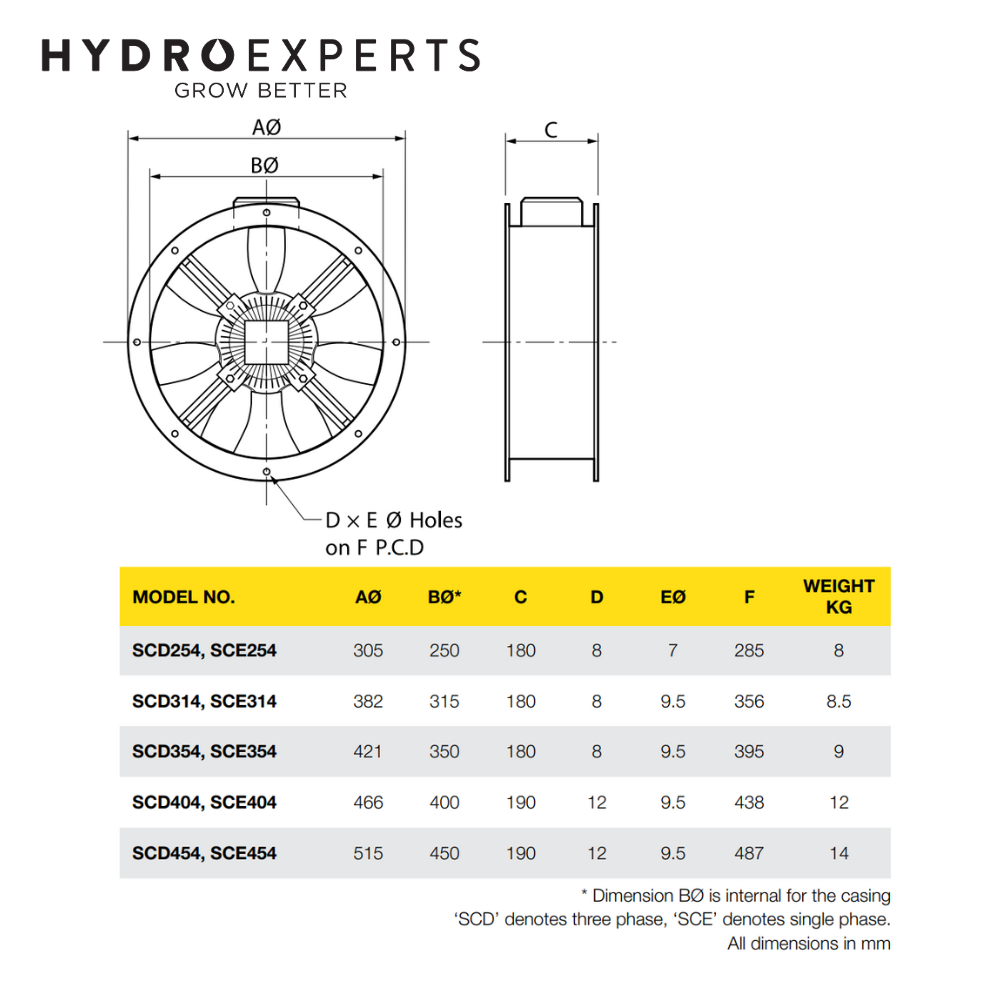

  • Flange / Duct Size: 400MM (16" Inch)
  • IP Rating: IP55
  • Operating Temperature: -20°C to +70°C
  • Weight: 12 KG

In The Box

  • [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCD404 | 400MM (16" Inch) | 4 Pole | 1 Phase
