Fantech Short Case In-Line Duct Mounted Axial Fan - SCD354 | 350MM (14" Inch) | 4 Pole | 3 Phase

Air Flow 2686 M³/H | Power Consumption 120W | IP55

SKU: VEFANS86233
|

OUT OF STOCK

FREE SHIPPING

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

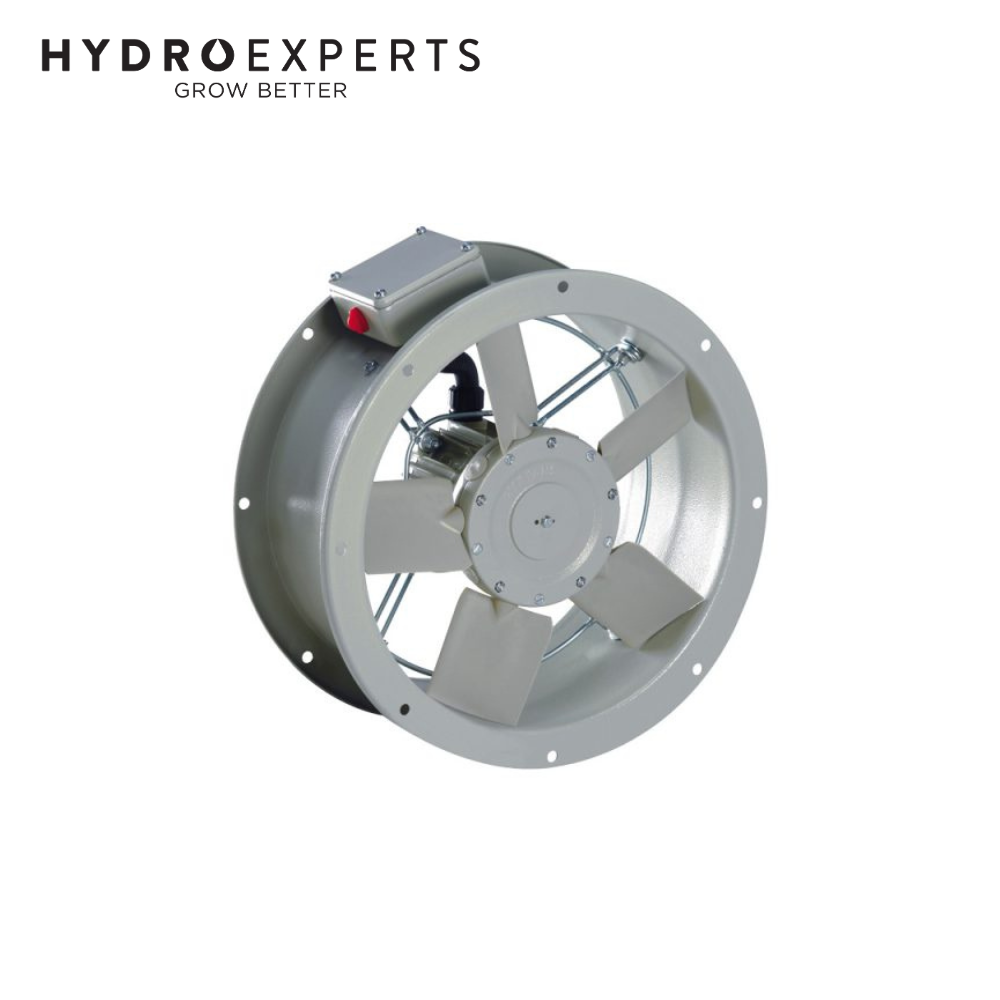

The Fantech Short Case In-Line Axial Fan SCD354 is designed for performance, efficiency, and durability in commercial and industrial ducted ventilation systems. With a 350MM (14" Inch) 4 Pole 3 Phase motor, it delivers an impressive airflow capacity of 2686  M³/H while maintaining a quiet sound level of 45 dB(A) @ 3m.

This fan is part of Fantech’s Short Case Axial Series, engineered for applications requiring compact and robust air movement solutions. The galvanised steel casing with a polyester epoxy finish provides exceptional protection against corrosion, and the GRP impeller blades ensure long-term performance and strength.

The SCD354 includes integral thermal protection, sealed-for-life ball bearings, and IP55-rated protection for reliable operation in harsh environments. Suitable for ambient temperatures between -20°C and +70°C, it can be mounted in any position to suit your ventilation layout.

Tested to ISO 5801:2004 airflow standards and BS848 noise standards, this model is perfect for use in workshops, factories, warehouses, and HVAC systems where efficient ducted air movement is essential.

Features

  • Compact short case design - Ideal for installation in tight ducted ventilation systems.
  • Light-weight but durable build - Galvanised steel casing with polyester epoxy finish.
  • High-performance GRP impeller - Ensures strength and efficiency.
  • 2-speed star/delta motor - Fitted to most 415V 3-phase models.
  • Integral thermal protection - Guards the motor from overheating.
  • IP55 enclosure rating - Protects against dust and moisture.
  • Mountable in any orientation - Suits both horizontal and vertical installations.
  • Noise-tested and airflow-rated - Certified to ISO 5801:2004 and BS848: Part 2, 1985.

Specifications

  • Model: SCD354
  • Air Flow: 2686 M³/H
  • Power Consumption: 120W
  • Motor Type: 3 Phase, 4 Pole
  • Sound Level: 45 dB(A) @ 3m
  • Operating Temperature: -20°C to +70°C

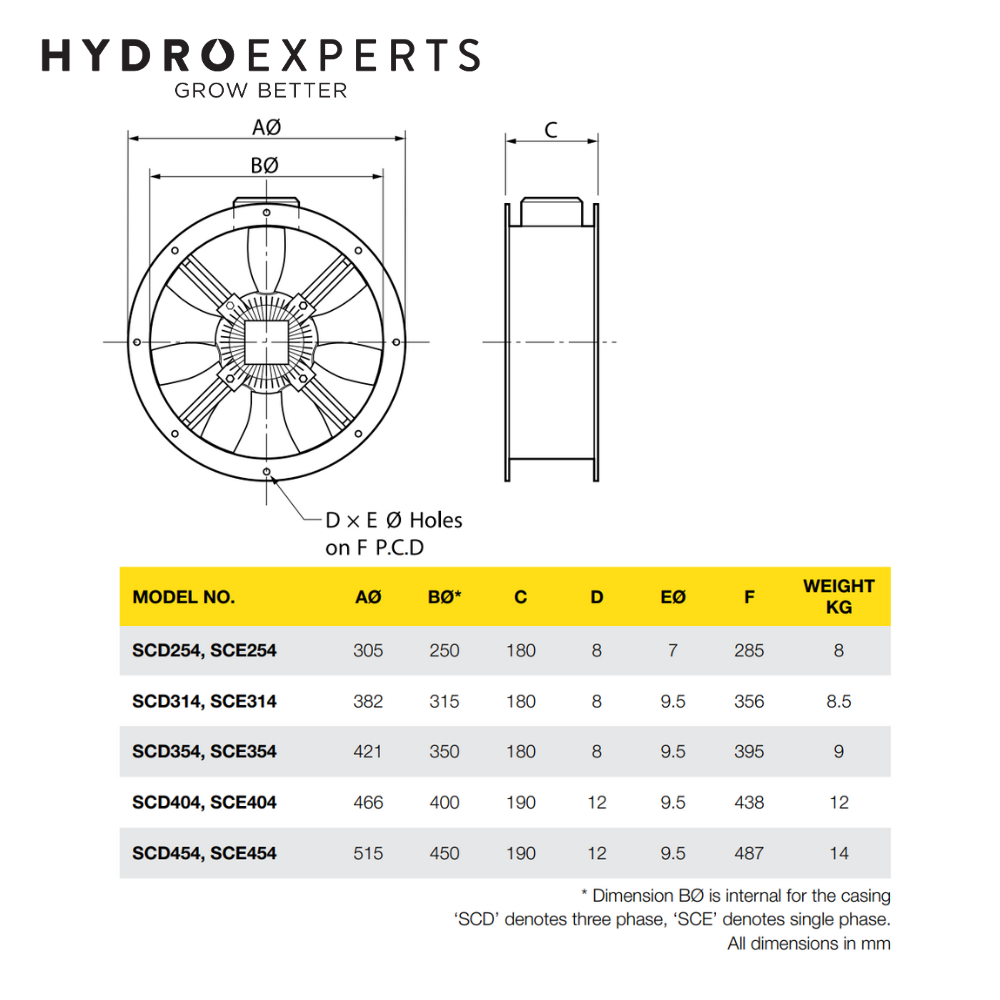

  • Flange Size: 350MM (14" Inch)
  • Casing Material: Galvanised Steel with Polyester Epoxy Finish
  • Impeller: GRP (Glass Reinforced Plastic)
  • Weight: 9.0 kg
  • IP Rating: IP55
  • Thermal Protection: Integral
  • Bearings: Sealed-for-life ball bearings
  • Compliance: ISO 5801:2004, BS848: Part 2, 1985

In The Box

  • [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCD354 | 350MM (14" Inch) | 4 Pole | 3 Phase
