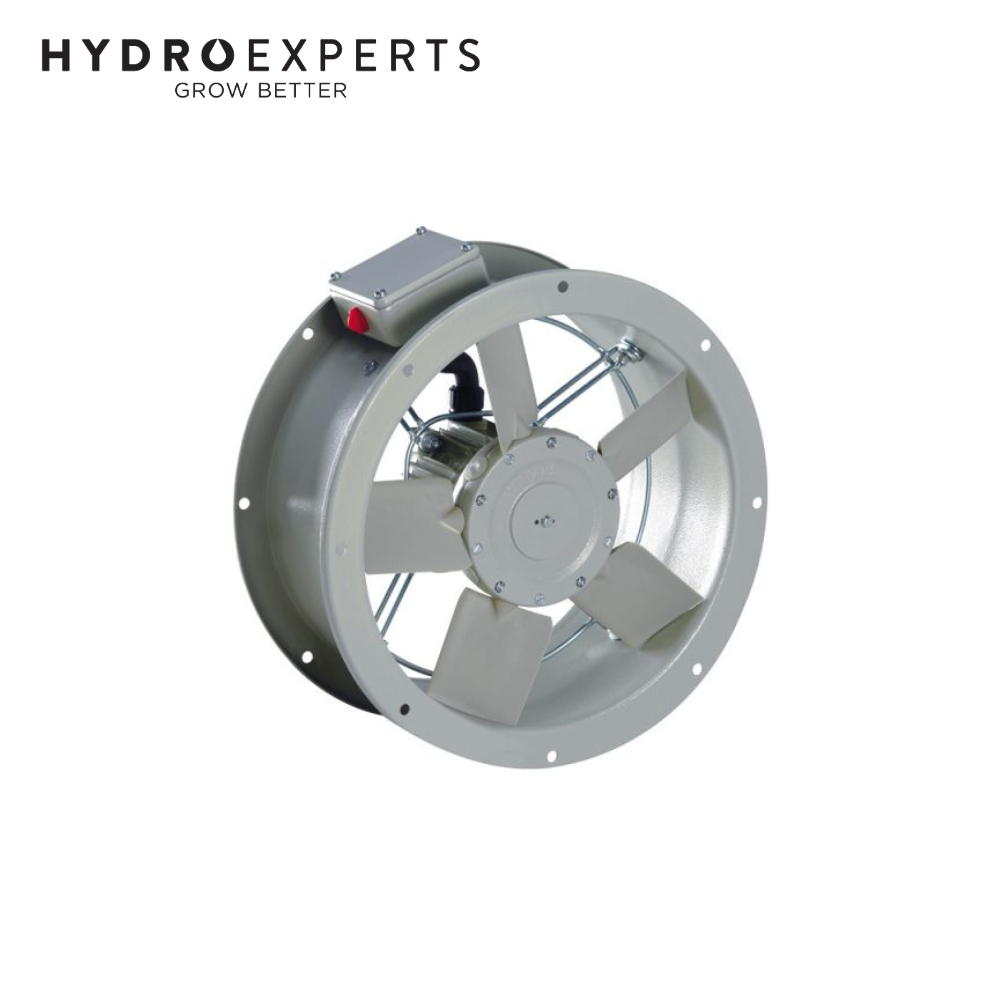

Fantech Short Case In-Line Duct Mounted Axial Fan - SCD314 | 310MM (12" Inch) | 4 Pole | 3 Phase

Air Flow 2099 M³/H | Power Consumption 120W | IP55

SKU: VEFANS86232
|

OUT OF STOCK

FREE SHIPPING

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Short Case In-Line Axial Fan SCD314 is engineered for efficient and reliable air movement in commercial and industrial ventilation systems. Featuring a 315MM (12" Inch) 4 Pole 3 Phase motor, it delivers an impressive airflow rate of 2099 M³/H with low operational noise at only 42 dB(A) @ 3m.

Constructed from galvanised steel with a polyester epoxy finish, this fan is both durable and corrosion-resistant. The GRP impeller blades ensure lightweight strength, while the IP55-rated motor provides excellent protection against dust and moisture.

The Short Case Axial Series offers speed-controllable options, integral thermal protection, and sealed-for-life ball bearings for dependable long-term performance. It is suitable for ducted installations in environments such as factories, warehouses, workshops, and air handling systems.

Compliant with ISO 5801:2004 airflow testing and BS848 noise standards, the Fantech SCD314 ensures safe, efficient, and quiet operation for professional-grade ventilation applications.

Features

  • Compact short case design - Ideal for space-restricted ducted systems.
  • Light-weight and robust construction - Galvanised steel casing with polyester epoxy coating.
  • Wide operating temperature range - Functions between -20°C and +70°C.
  • 2-speed star/delta motor - Standard on most 415V 3-phase models.
  • Integral thermal protection - Prevents overheating and ensures safe operation.
  • Mountable in any position - Flexible installation for both supply and exhaust systems.
  • IP55-rated enclosure - Resistant to dust and moisture ingress.
  • Complies with ISO and BS standards - Tested for both airflow and noise levels.

Specifications

  • Model: SCD314
  • Air Flow: 2099 M³/H
  • Power Consumption: 120W
  • Motor Type: 3 Phase, 4 Pole
  • Sound Level: 42 dB(A) @ 3m
  • Operating Temperature: -20°C to +70°C

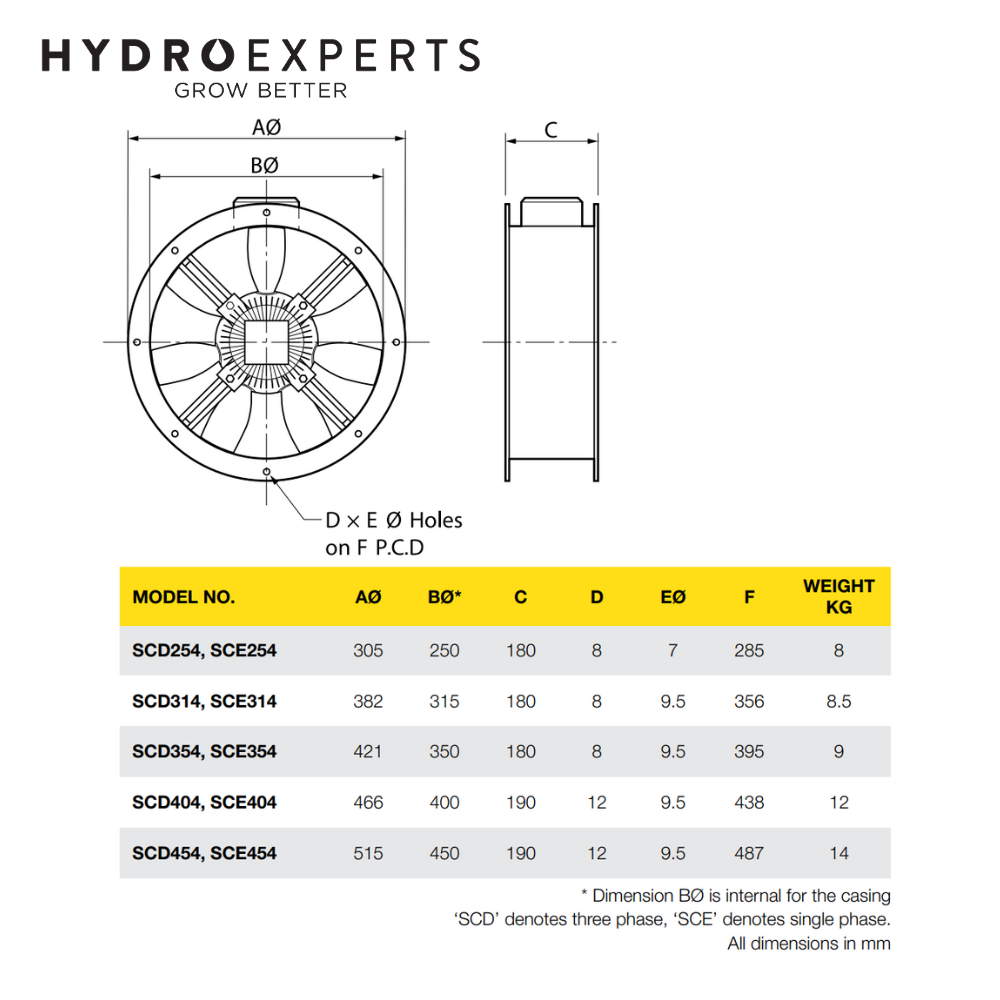

  • Flange Size: 315MM (12" Inch)
  • Casing Material: Galvanised Steel with Polyester Epoxy Finish
  • Impeller: GRP (Glass Reinforced Plastic)
  • Weight: 8.5 kg
  • IP Rating: IP55
  • Thermal Protection: Integral
  • Bearings: Sealed-for-life ball bearings
  • Standards: ISO 5801:2004, BS848: Part 2, 1985

In The Box

  • [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCD314 | 310MM (12" Inch) | 4 Pole | 3 Phase
