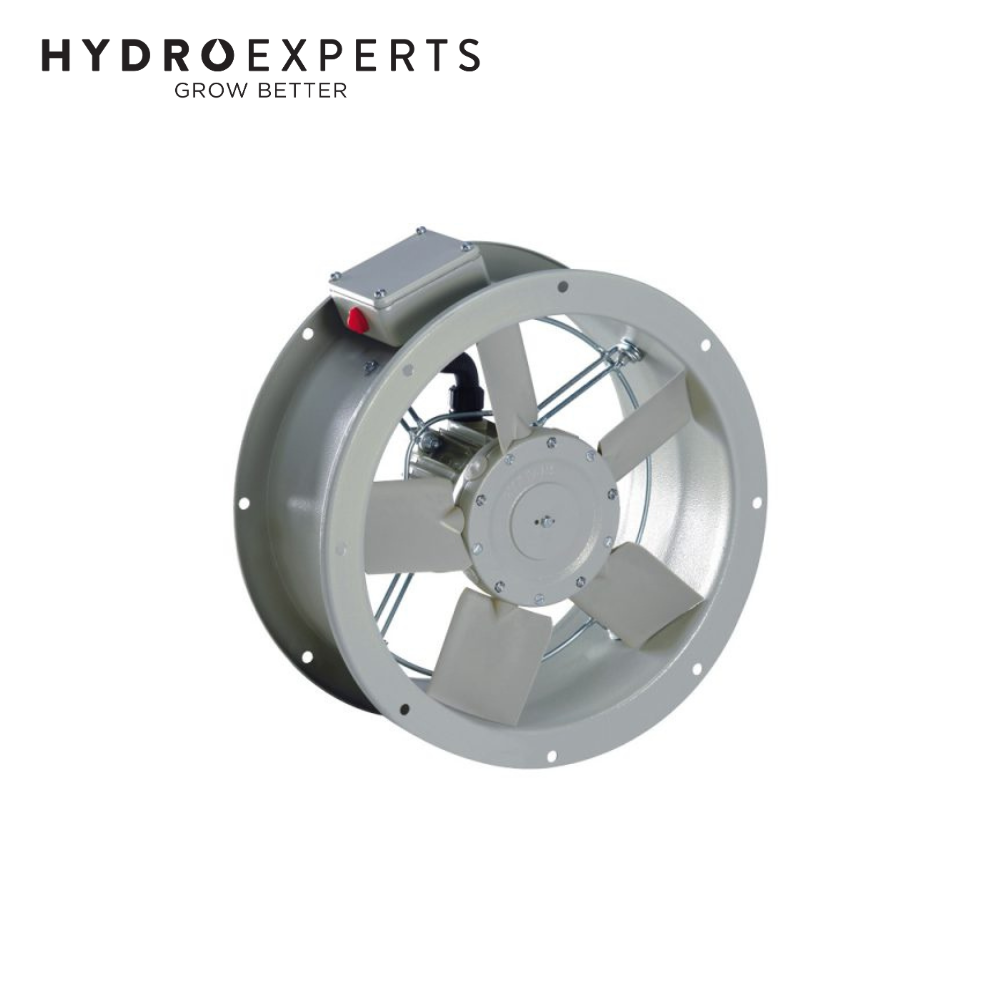

Fantech Short Case In-Line Duct Mounted Axial Fan - SCD254 | 250MM (10" Inch) | 4 Pole | 3 Phase

Air Flow 983 M³/H | Power Consumption 120W | IP55

SKU: VEFANS86231
|

OUT OF STOCK

FREE SHIPPING

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Short Case In-Line Axial Fan SCD254 is a high-performance ventilation solution designed for ducted systems in commercial and industrial environments. This 250MM (10" Inch) 4 Pole 3 Phase axial fan delivers an impressive airflow of 983 M³/H while maintaining quiet operation at only 39 dB(A) at 3 metres. Built with a galvanised steel casing and polyester epoxy finish, it ensures long-lasting durability in harsh environments.

The Short Case Axial Series offers a light-weight yet robust design, suitable for ambient temperatures from -20°C to +70°C. It can be mounted in any position and is equipped with integral thermal protection for safe, continuous operation. The SCD254 also features sealed-for-life ball bearings and is compliant with ISO 5801:2004 airflow testing and BS848 noise standards.

Ideal for applications in factories, workshops, warehouses, and commercial ventilation systems, the Fantech SCD254 is a reliable, compact, and energy-efficient solution for both exhaust and supply air installations.

Features

  • Compact design - Short case design allows easy installation in ducted systems.
  • Light-weight but robust construction - Built with galvanised steel casing and GRP impeller blades.
  • Wide operating range - Suitable for temperatures between -20°C and +70°C.
  • 2-speed star/delta motor - Standard on most 415V 3-phase models.
  • IP55 protection - Ensures dust and water resistance for reliable operation.
  • Integral thermal protection - Prevents motor overheating and ensures safe use.
  • Mountable in any position - Ideal for flexible ducted system installations.
  • Noise tested to BS848 standards - Ensures low operational sound levels.

Specifications

  • Model: SCD254
  • Air Flow: 983 M³/H
  • Power Consumption: 120W
  • Motor Type: 3 Phase, 4 Pole
  • Sound Level: 39 dB(A) @ 3m
  • Operating Temperature: -20°C to +70°C

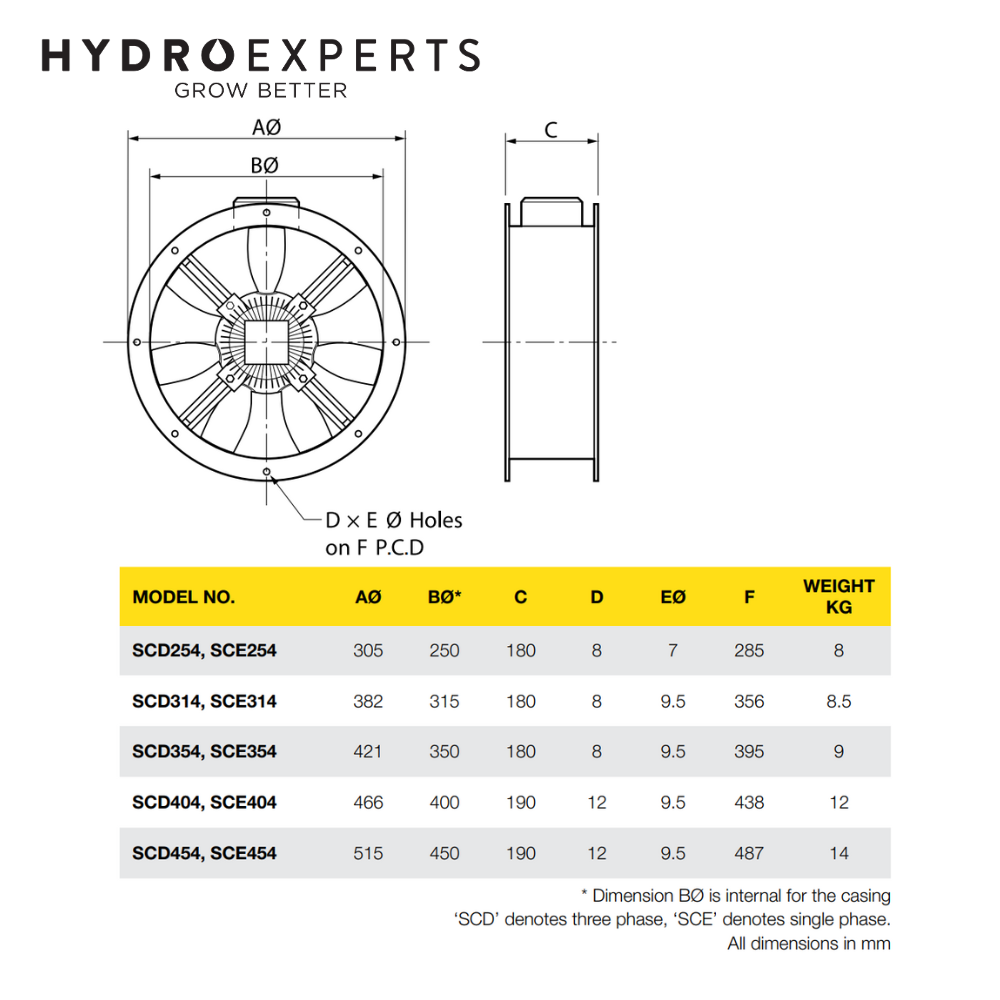

  • Flange Size: 250MM (10" Inch)
  • Casing Material: Galvanised Steel with Polyester Epoxy Finish
  • Impeller: GRP (Glass Reinforced Plastic)
  • Weight: 8.0 kg
  • IP Rating: IP55
  • Standards: ISO 5801:2004, BS848: Part 2, 1985

In The Box

  • [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCD254 | 250MM (10" Inch) | 4 Pole | 3 Phase
