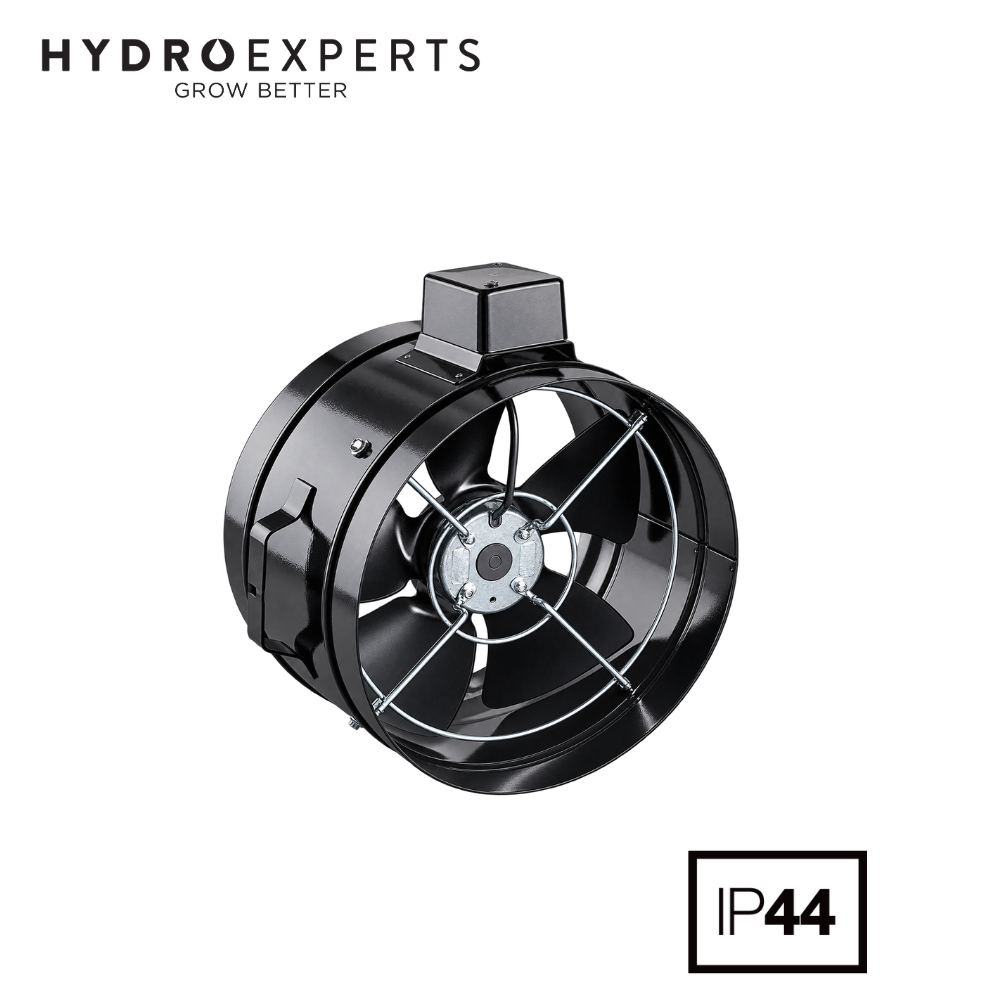

Fantech Minitube Duct Mounted Axial Fan 300MM (12" Inch) - MTS304 | 4 Pole | Steel Housing

Power Consumption 90W | IP44

SKU: FANS87014
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech MTS304 Minitube Axial Fan is a high-quality duct-mounted ventilation fan designed for applications requiring quieter operation, reliable airflow performance, and long-term durability. Featuring a robust powder-coated steel housing and a low-speed 4-pole external rotor motor, this 300mm axial fan provides efficient ventilation with significantly reduced noise levels.

Designed to suit standard 300mm ducting systems, the MTS304 is ideal for residential ventilation, commercial buildings, workshops, warehouses, grow rooms, and industrial facilities. Its compact inline design allows installation in virtually any position, providing flexibility across a wide range of ventilation projects.

The fan incorporates a high-strength powder-coated steel impeller, sealed-for-life ball bearings, and integrated manual reset thermal protection for dependable long-term operation. The speed-controllable motor enables users to adjust airflow performance to suit specific ventilation requirements while maintaining quieter operation.

Operating at only 47dB(A) at 3 metres, the Fantech MTS304 Minitube Axial Fan offers an excellent balance of airflow performance, low noise output, and industrial-grade durability for Australian ventilation applications.

Features

  • 300mm Duct Mounted Axial Fan - Designed to suit standard 300mm ventilation duct systems.
  • Low Noise 4-Pole Motor - Operates at only 47dB(A) at 3 metres for quieter ventilation.
  • Powder-Coated Steel Housing - Durable construction suitable for commercial and industrial environments.
  • Speed Controllable - Compatible with suitable speed controllers for adjustable airflow.
  • External Rotor Motor - Reliable squirrel cage induction motor technology.
  • Powder-Coated Steel Impeller - High-strength impeller designed for extended service life.
  • Flexible Installation - Can be mounted in any position.
  • IP44 Motor Protection - Suitable for residential, commercial, and industrial ventilation systems.
  • Manual Reset Thermal Protection - Protects the motor against overload conditions.
  • Extensive Accessory Compatibility - Compatible with a wide range of ventilation accessories and ducting systems.

Specifications

Specification MTS304
Model MTS304
Series Minitube Steel Series
Duct Size 300 mm
Housing Material Powder-Coated Steel
Impeller Material Powder-Coated Steel
Voltage 230V Single Phase
Frequency 50/60Hz
Motor Type External Rotor Squirrel Cage Induction Motor
Motor Poles 4 Pole
Power Input 0.09 kW
Current Draw 0.41 A
Speed 22 rps
Noise Level 47 dB(A) @ 3m
Maximum Operating Temperature 50°C
Approximate Weight 4.8 kg
Motor Protection IP44
Thermal Protection Manual Reset Protection

In The Box

  • [1] x Fantech Minitube Duct Mounted Axial Fan 300MM (12" Inch) - MTS304 | 4 Pole | Steel Housing
