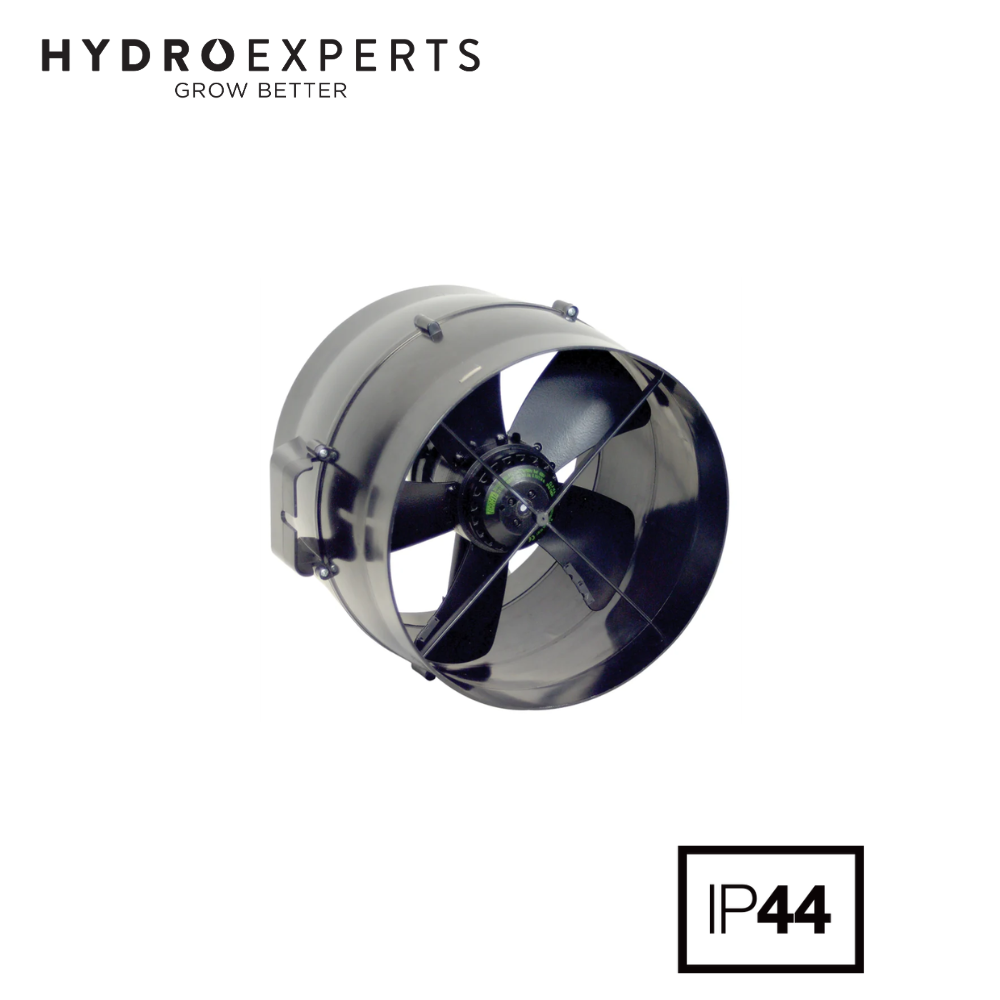

Fantech Minitube Duct Mounted Axial Fan 300MM (12" Inch) - MTP304 | 4 Pole | Plastic Housing

Power Consumption 90W | IP44

SKU: FANS87006
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech MTP304 Minitube Axial Fan is a high-quality duct-mounted ventilation fan engineered for applications where quieter operation and reliable airflow performance are essential. Featuring a robust ABS injection moulded plastic housing and a low-speed 4-pole external rotor motor, this 300mm axial fan delivers effective ventilation while maintaining lower noise levels compared to higher-speed alternatives.

Designed to suit standard 300mm ducting systems, the MTP304 is suitable for residential, commercial, industrial, and hydroponic ventilation applications. The fan is supplied complete with a convenient flex and plug connection, allowing for quick installation without complex wiring requirements. Its versatile design enables mounting in any position, providing flexibility across a wide range of ventilation projects.

The durable powder-coated steel impeller ensures dependable airflow performance and long-term reliability, while sealed-for-life ball bearings minimise maintenance requirements. Integrated manual reset thermal protection provides additional motor safety and operational protection.

With a low noise level of just 47dB(A) at 3 metres, speed-controllable operation, and durable construction, the Fantech MTP304 Minitube Axial Fan is an ideal solution for ducted ventilation systems requiring quieter airflow performance and installation flexibility.

Features

  • 300mm Duct Mounted Axial Fan - Designed to suit standard 300mm ventilation ducting.
  • Low Noise 4-Pole Motor - Quieter operation at only 47dB(A) at 3 metres.
  • ABS Plastic Housing - Lightweight, corrosion-resistant, and durable construction.
  • Flex and Plug Included - Plug-and-play installation for convenience.
  • Speed Controllable - Compatible with speed controllers for adjustable airflow.
  • External Rotor Motor - Reliable squirrel cage induction motor technology.
  • Flexible Mounting - Can be mounted in any position.
  • Powder-Coated Steel Impeller - High-strength impeller for long service life.
  • IP44 Motor Protection - Suitable for residential, commercial, and industrial environments.
  • Integrated Thermal Protection - Manual reset motor protection fitted as standard.

Specifications

Specification MTP304
Model MTP304
Series Minitube Axial Fan
Duct Size 300 mm
Housing Material ABS Injection Moulded Plastic
Voltage 230V Single Phase
Frequency 50/60Hz
Motor Type External Rotor Squirrel Cage Induction Motor
Motor Poles 4 Pole
Power Input 0.09 kW
Current Draw 0.41 A
Speed 22 rps
Noise Level 47 dB(A) @ 3m
Maximum Operating Temperature 50°C
Weight 3.5 kg
Motor Protection IP44
Thermal Protection Manual Reset Protection

In The Box

  • [1] x Fantech Minitube Duct Mounted Axial Fan 300MM (12" Inch) - MTP304 | 4 Pole | Plastic Housing
