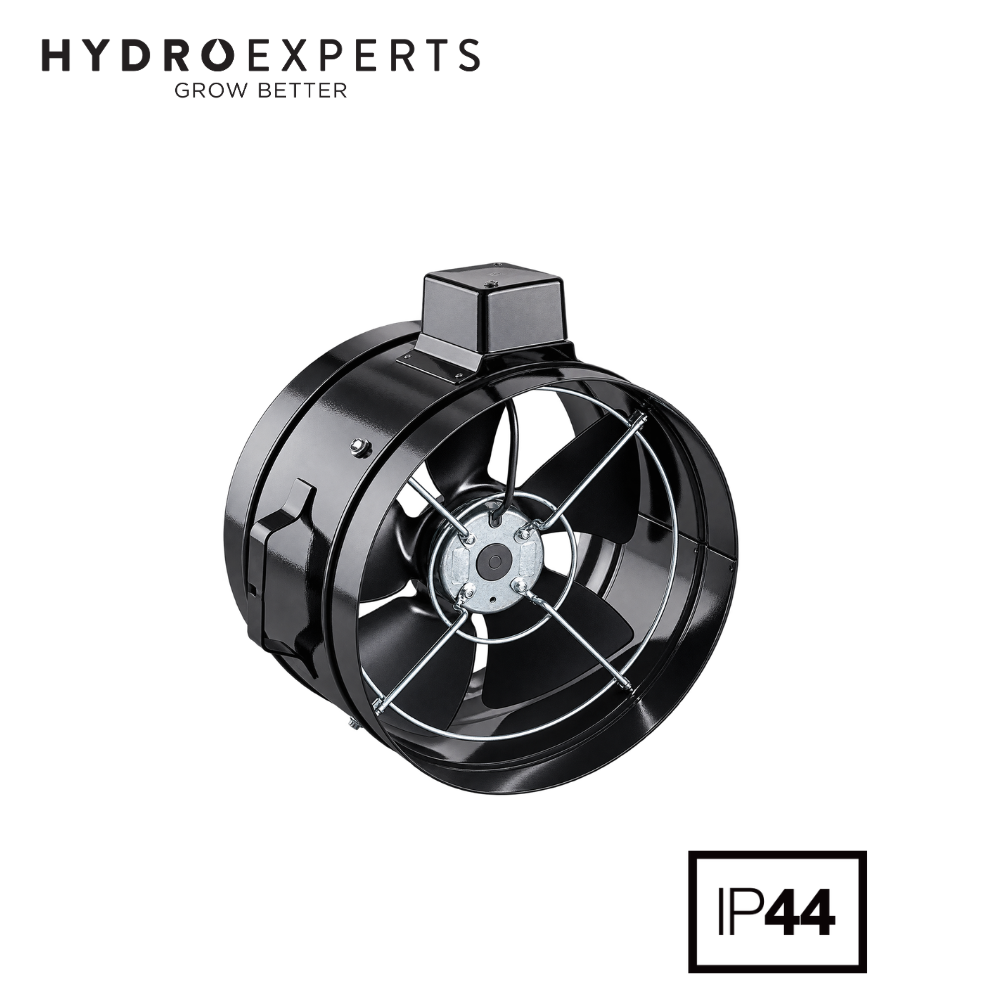

Fantech Minitube Duct Mounted Axial Fan 250MM (10" Inch) - MTS252 | 2 Pole | Steel Housing

Power Consumption 110W | IP44

SKU: FANS87011
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech MTS252 Minitube Axial Fan is a robust and efficient duct-mounted ventilation fan designed for residential, commercial, and industrial applications requiring dependable airflow performance. Featuring a durable powder-coated steel housing and a powerful 2-pole external rotor motor, this 250mm axial fan delivers strong airflow while maintaining reliable operation in demanding environments.

Designed to suit standard 250mm ducting systems, the MTS252 is ideal for exhaust air extraction, fresh air supply, transfer air systems, and general building ventilation. Its compact inline design allows installation in any position, providing maximum flexibility for a wide range of duct configurations and ventilation projects.

The fan incorporates a high-strength powder-coated steel impeller, sealed-for-life ball bearings, and integrated manual reset thermal protection to ensure long-term reliability and low maintenance operation. The speed-controllable motor allows users to adjust airflow levels to suit varying ventilation requirements.

Fully tested to recognised international standards, including ISO5801:2004 for airflow performance and BS848 Part 2:1985 for noise testing, the Fantech MTS252 Minitube Axial Fan provides professional-grade ventilation performance for Australian commercial and industrial applications.

Features

  • 250mm Duct Mounted Axial Fan - Designed to suit standard 250mm ventilation duct systems.
  • Heavy Duty Steel Housing - Powder-coated steel construction for long-term durability.
  • Powerful 2-Pole Motor - Delivers strong airflow performance for demanding ventilation applications.
  • Speed Controllable - Compatible with suitable speed controllers for adjustable airflow.
  • External Rotor Motor - Reliable squirrel cage induction motor technology.
  • Powder-Coated Steel Impeller - High-strength impeller designed for extended service life.
  • Flexible Installation - Can be mounted in any position.
  • IP44 Motor Protection - Suitable for commercial and industrial ventilation systems.
  • Manual Reset Thermal Protection - Protects the motor from overload conditions.
  • Wide Accessory Compatibility - Compatible with an extensive range of ducting accessories.

Specifications

Specification MTS252
Model MTS252
Series Minitube Steel Series
Duct Size 250 mm
Housing Material Powder-Coated Steel
Impeller Material Powder-Coated Steel
Voltage 230V Single Phase
Frequency 50/60Hz
Motor Type External Rotor Squirrel Cage Induction Motor
Motor Poles 2 Pole
Power Input 0.11 kW
Current Draw 0.63 A
Speed 42 rps
Noise Level 51 dB(A) @ 3m
Maximum Operating Temperature 50°C
Approximate Weight 4 kg
Motor Protection IP44
Thermal Protection Manual Reset Protection

In The Box

  • [1] x Fantech Minitube Duct Mounted Axial Fan 250MM (10" Inch) - MTS252 | 2 Pole | Steel Housing
