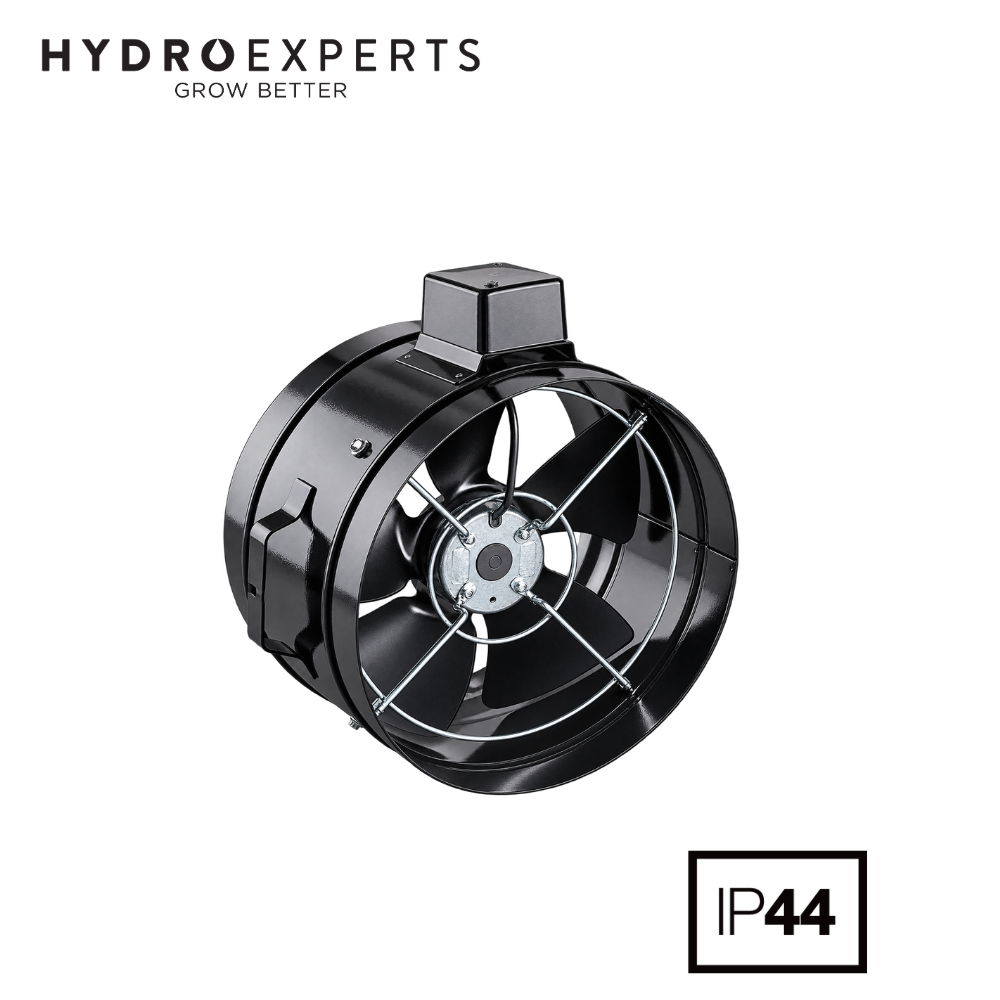

Fantech Minitube Duct Mounted Axial Fan 200MM (8" Inch) - MTS204 | 4 Pole | Steel Housing

Power Consumption 30W | IP44

SKU: FANS87010
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech MTS204 Minitube Axial Fan is a high-quality duct-mounted ventilation fan engineered for applications where quiet operation and reliable airflow performance are essential. Featuring a robust powder-coated steel housing and a low-speed 4-pole external rotor motor, this 200mm axial fan provides effective ventilation with significantly reduced noise levels.

Part of the trusted Fantech Minitube Steel Series, the MTS204 is designed to suit standard 200mm ducting systems and can be mounted in any position, providing maximum installation flexibility. Its speed-controllable motor allows users to optimise airflow performance while maintaining quiet operation, making it ideal for offices, workshops, residential ventilation systems, commercial buildings, and industrial applications.

The fan incorporates a durable powder-coated steel casing, high-strength powder-coated steel impeller, sealed-for-life ball bearings, and integrated manual reset thermal protection to ensure dependable long-term operation with minimal maintenance requirements.

Operating at only 39dB(A) at 3 metres, the Fantech MTS204 Minitube Axial Fan is an excellent choice for projects requiring a balance of quiet performance, installation flexibility, and professional-grade ventilation reliability.

Features

  • 200mm Duct Mounted Axial Fan - Designed to suit standard 200mm ventilation duct systems.
  • Low Noise 4-Pole Motor - Operates at only 39dB(A) at 3 metres for quieter ventilation.
  • Powder-Coated Steel Housing - Durable construction for commercial and industrial environments.
  • Speed Controllable - Compatible with suitable speed controllers for adjustable airflow.
  • External Rotor Motor - Reliable squirrel cage induction motor technology.
  • Powder-Coated Steel Impeller - High-strength impeller for long service life.
  • Flexible Installation - Can be mounted in any position.
  • IP44 Motor Protection - Suitable for residential, commercial, and industrial ventilation systems.
  • Manual Reset Thermal Protection - Protects the motor from overload conditions.
  • Accessory Compatibility - Compatible with a wide range of ventilation accessories and ducting systems.

Specifications

Specification MTS204
Model MTS204
Series Minitube Steel Series
Duct Size 200 mm
Housing Material Powder-Coated Steel
Impeller Material Powder-Coated Steel
Voltage 230V Single Phase
Frequency 50/60Hz
Motor Type External Rotor Squirrel Cage Induction Motor
Motor Poles 4 Pole
Power Input 0.03 kW
Current Draw 0.14 A
Speed 25 rps
Noise Level 39 dB(A) @ 3m
Maximum Operating Temperature 60°C
Approximate Weight 3.5 kg
Motor Protection IP44
Thermal Protection Manual Reset Protection

In The Box

  • [1] x Fantech Minitube Duct Mounted Axial Fan 200MM (8" Inch) - MTS204 | 4 Pole | Steel Housing
