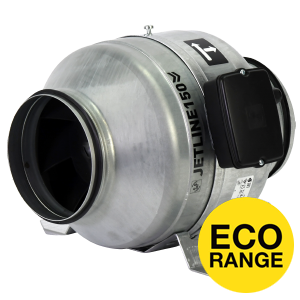

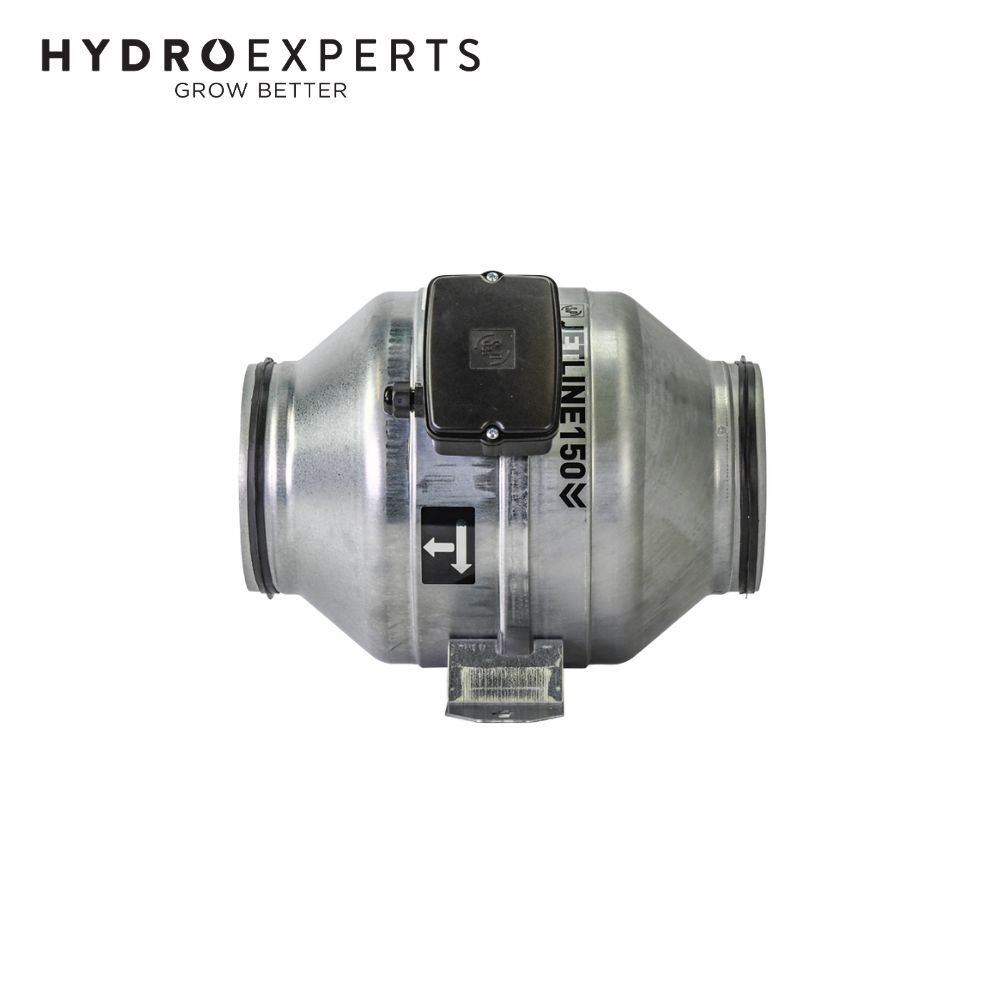

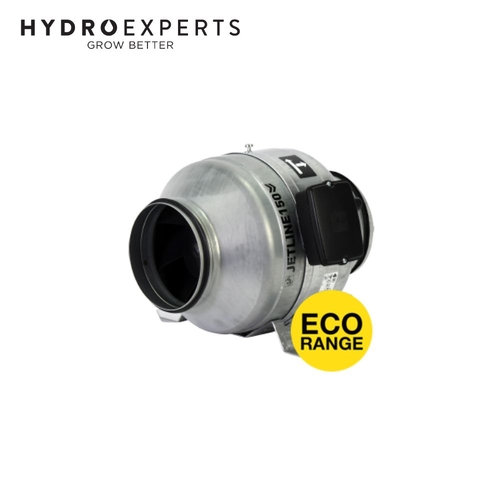

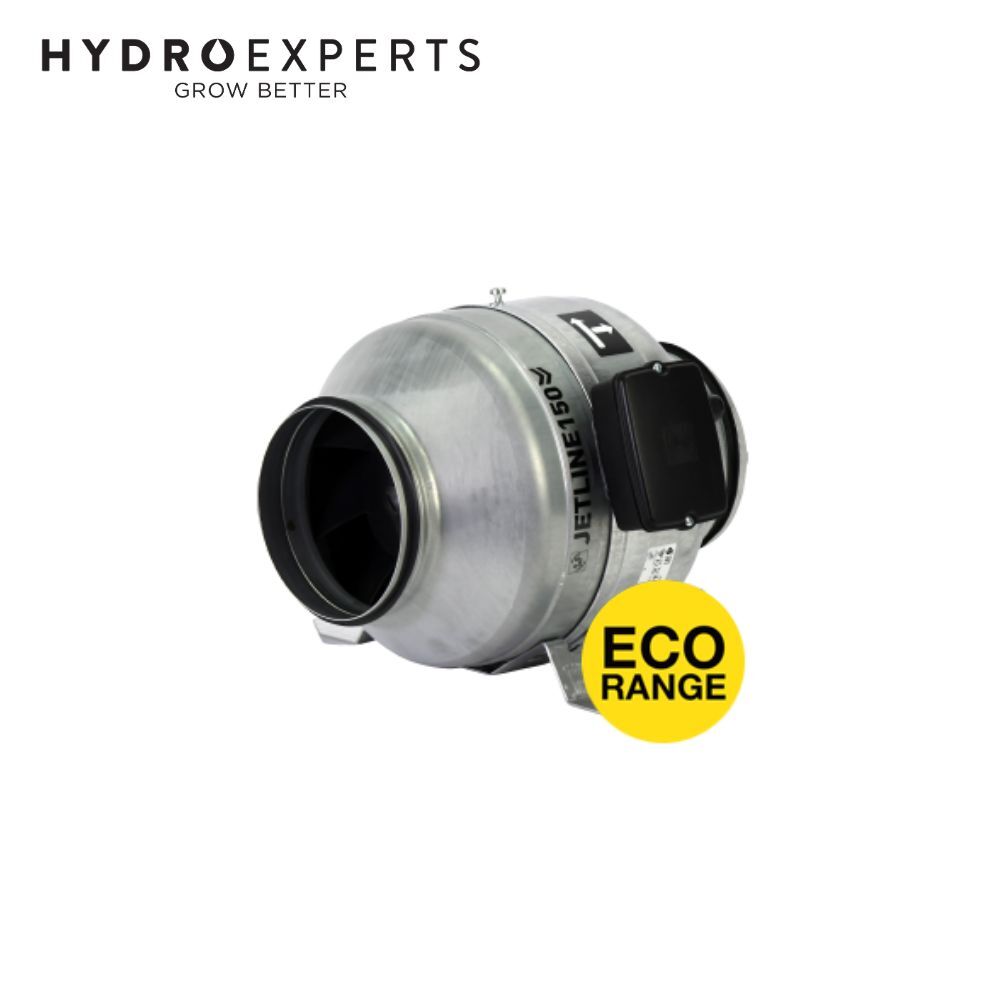

Fantech Jetline Eco In-line Duct Mounted EC Fan - 125MM (5" Inch) | 40W | 390 M³/H | IP44

SKU: XFANS52502
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Not Available

In-store pickup not available.

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Jetline Eco 125MM In-line Duct Mounted EC Exhaust Fan delivers powerful yet energy efficient airflow for both domestic and light commercial applications. Built with the latest EC motor technology, this fan provides 390 M³/H airflow while maintaining low running costs.

Its low-profile galvanised steel casing and silent-block motor mounting ensure long-lasting durability and quiet operation. The integrated 0-10V analogue input with on-board potentiometer allows flexible speed control, making it ideal for a wide range of ducted ventilation systems.

Installation is quick and reliable thanks to the galvanised steel quick fit brackets and rubber gaskets that improve the seal between fan and ducting. The fan can be mounted in any orientation, providing installers with maximum flexibility.

Note: Hard wire installation by a licensed electrician is required.

Features

  • Energy Efficient EC Motor - Reduces power consumption while maintaining strong airflow
  • High Airflow Output - 390 M³/H suitable for larger rooms and ducted systems
  • Speed Control - 0-10V analogue input with on-board potentiometer
  • Quiet Running - Silent-block motor mounting minimises noise and vibration
  • Durable Build - Galvanised steel casing for long life
  • Secure Sealing - Rubber gasket on spigots for airtight duct connections
  • Quick Fit Installation - Galvanised steel mounting bracket included
  • Flexible Mounting - Can be installed in any position

Specifications

  • Model No: JETLINE-125ECO
  • Air Flow: 390 M³/H
  • L/Sec: 108
  • Fan Speed: 44 Rev/Sec
  • Noise Level: 41 dB(A) @ 3M
  • Power Consumption: 40W
  • Amps: 0.2
  • Voltage: 220-240V
  • IP Rating: IP44
  • Flange Size: 125MM (5" Inch)
  • Weight: 2.8 KG

In The Box

  • [1] x Fantech Jetline Eco In-line Duct Mounted Fan - 125MM (5" Inch) | 40W | 390 M³/H
