Fantech JetVent Warehouse Air Mover Ceiling Mount - JVWD6 | 3 Phase

Discharge Thrust 12N | Power 690W | Noise 54 dB(A)

SKU: AIRM10002
|

OUT OF STOCK

POSTAGE APPLIES

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Freight applies

*This item is bullky so freight applies.

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

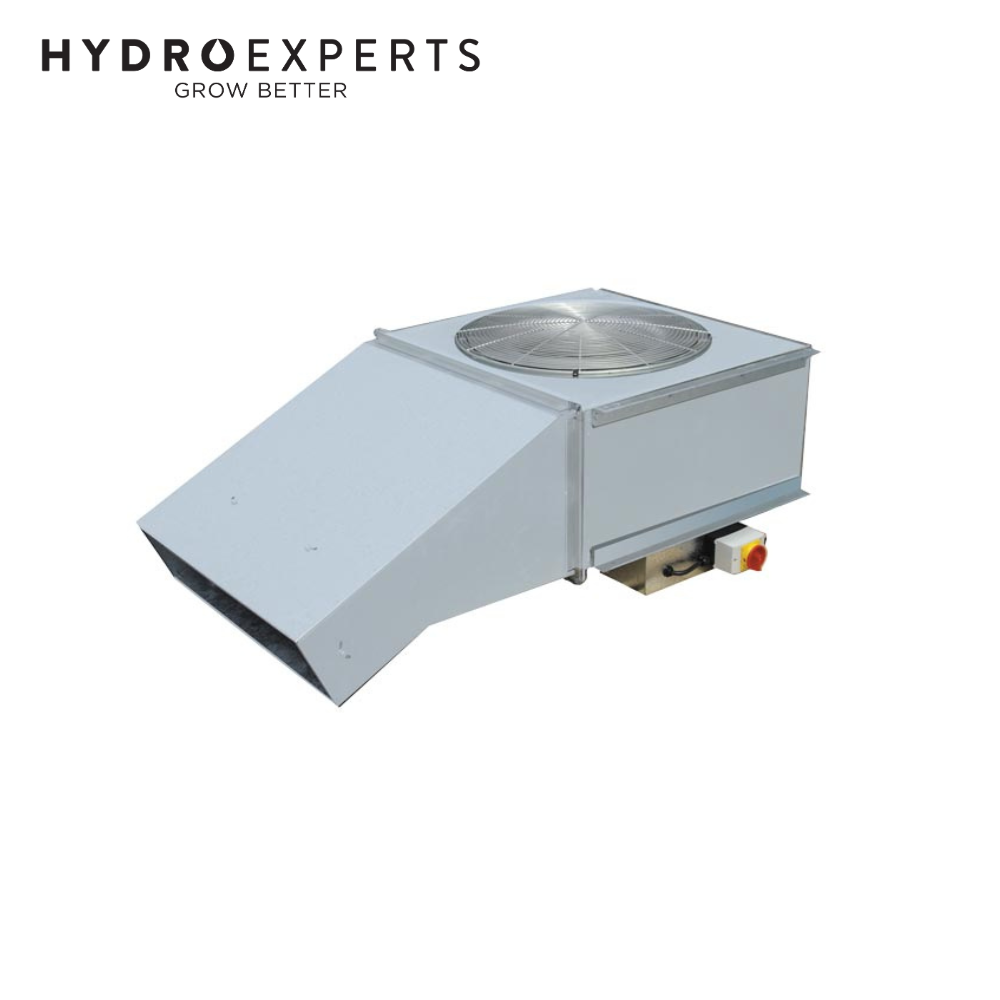

Fantech JetVent JVWD6 is a ceiling mounted warehouse air mover engineered for large enclosed spaces across Australia. Suspended from the ceiling, it creates a refreshing cross flow that helps disperse hot, stagnant air in warehouses, distribution centres and recreation facilities. The unit pairs a high performance backward curved centrifugal impeller with an adjustable discharge nozzle so you can aim airflow precisely where it is needed.

Built for commercial duty with a galvanised steel body and durable powder coated finish, the JVWD6 features a 415V 3 phase external rotor motor with optional star or delta 2 speed control, delivering up to 12N discharge thrust at a low 54 dB(A) measured at 3m. A close ceiling inlet configuration is available for tight installs, helping keep floor operations free from obstruction.

Features

  • Targets hot spots - Helps eliminate the build up of hot, stagnant and polluted air.
  • Low disturbance airflow - Gentle, directed breeze enhances comfort without disrupting workflows.
  • Ceiling mounted - High level mounting avoids interference with plant and equipment.
  • Adjustable nozzle - Aim and fine tune the airflow direction to specific areas.
  • Efficient impeller - Backward curved centrifugal design for strong, efficient air movement.
  • Three phase control - Can be wired high or low speed, optional star or delta 2 speed switching.
  • Durable construction - Galvanised steel housing with hard wearing grey powder coat.
  • Close ceiling option - Alternative inlet position available for low clearance installs.

Specifications

  • Brand: Fantech
  • Range: JetVent Warehouse Air Mover
  • Model: JVWD6
  • Mounting: Ceiling mount, suspended
  • Discharge Thrust: 12N high, 3N low
  • Average Noise @3m: 54 dB(A) high, 50 dB(A) low
  • Voltage: 415V AC
  • Phase: 3 Phase
  • Power Input: 0.69 kW high, 0.39 kW low
  • Current: 1.45 A high, 0.79 A low
  • Motor Type: External rotor, squirrel cage induction
  • Speed Control: High or low speed wiring, optional star or delta 2 speed switch
  • Impeller: Backward curved centrifugal
  • Nozzle: Adjustable discharge nozzle
  • Body Material: Galvanised steel, powder coated grey

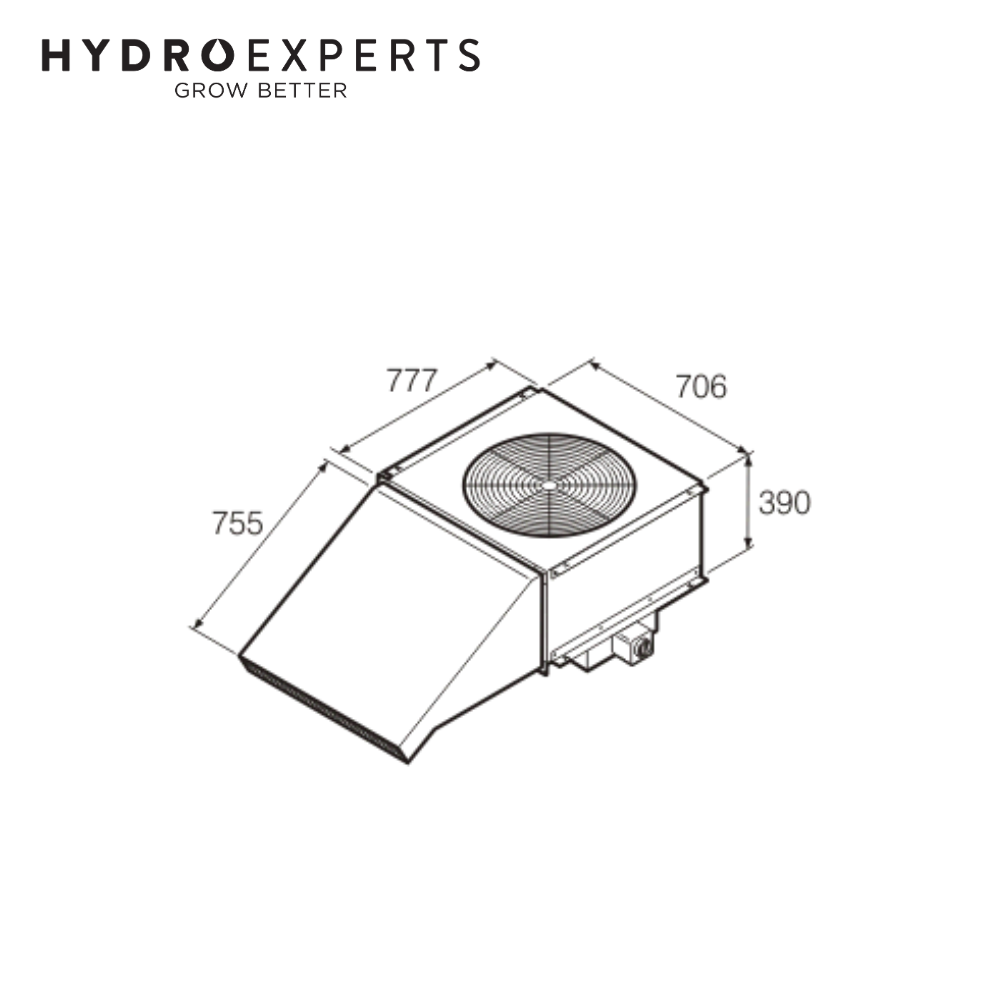

  • Dimensions: 777 x 706 x 390 mm (77.7 x 70.6 x 39.0 cm)
  • Approx. Weight: 85 kg
  • Applications: Warehouses, distribution centres, recreation facilities

In The Box

  • [1] x Fantech JetVent Warehouse Air Mover Ceiling Mount - JVWD6 | 3 Phase
