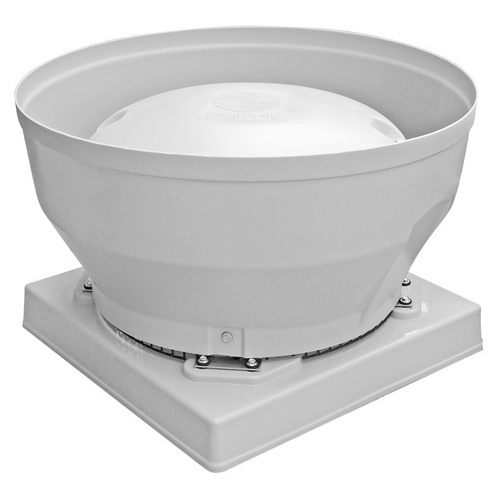

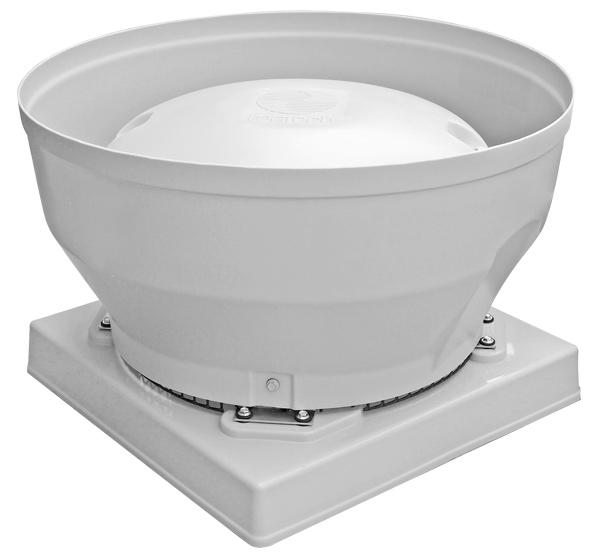

Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan

SKU: FANS82050
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan is designed for a wide range of commercial ducted exhaust applications. Its low profile roof design and robust construction make it a reliable choice for factories, warehouses, workshops, retail outlets and assembly halls. Each unit is fitted with protective bird mesh to prevent the entry of birds and vermin into the ducting system, ensuring long-lasting performance and safety.

This series is available in multiple sizes to suit varying airflow requirements and system designs. The Gamma Downflow Exhaust Fan range delivers high pressure performance while maintaining efficient airflow. Twin vertical discharge models are also available, providing 100% standby capacity for critical applications.

Whether you are designing a new ventilation system or upgrading an existing one, the Fantech Gamma Roof Mounted Downflow Fan offers durability, efficiency and ease of installation for demanding Australian conditions.

Features

  • Robust and lightweight construction for long-term durability.
  • Compact, low profile design for an unobtrusive roofline appearance.
  • Protective bird mesh guard fitted as standard to prevent debris and vermin entry.
  • Choice of speeds available to suit different airflow requirements.
  • Designed for downflow exhaust applications in commercial environments.
  • Twin vertical discharge option with 100% standby capacity.
  • Shutters included on twin fan units and optional on single fan units.
  • Mountable at angles up to 30° for flexible installation.

Specifications

Product Code Diameter
[mm]
Speed
[rps]
kW Amps Avg. dB(A)
@ 3m
Max Pressure
[Pa]
Max Volume
[m³/sec]
CE192D 190 41 0.07 0.3 47 251 0.12
CE252D 250 45 0.19 1.18 58 396 0.28
CE224D 220 23 0.049 0.29 39 130 0.17
CE254D 250 23 0.072 0.37 42 151 0.25
CE284D 280 23 0.09 0.4 45 247 0.34
CE314D 310 22 0.14 0.7 48 215 0.42
CE354D 350 23 0.27 1.3 51 281 0.70
CE404D 400 21 0.43 2.4 54 372 1.08

In The Box

  • [1] x Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan
