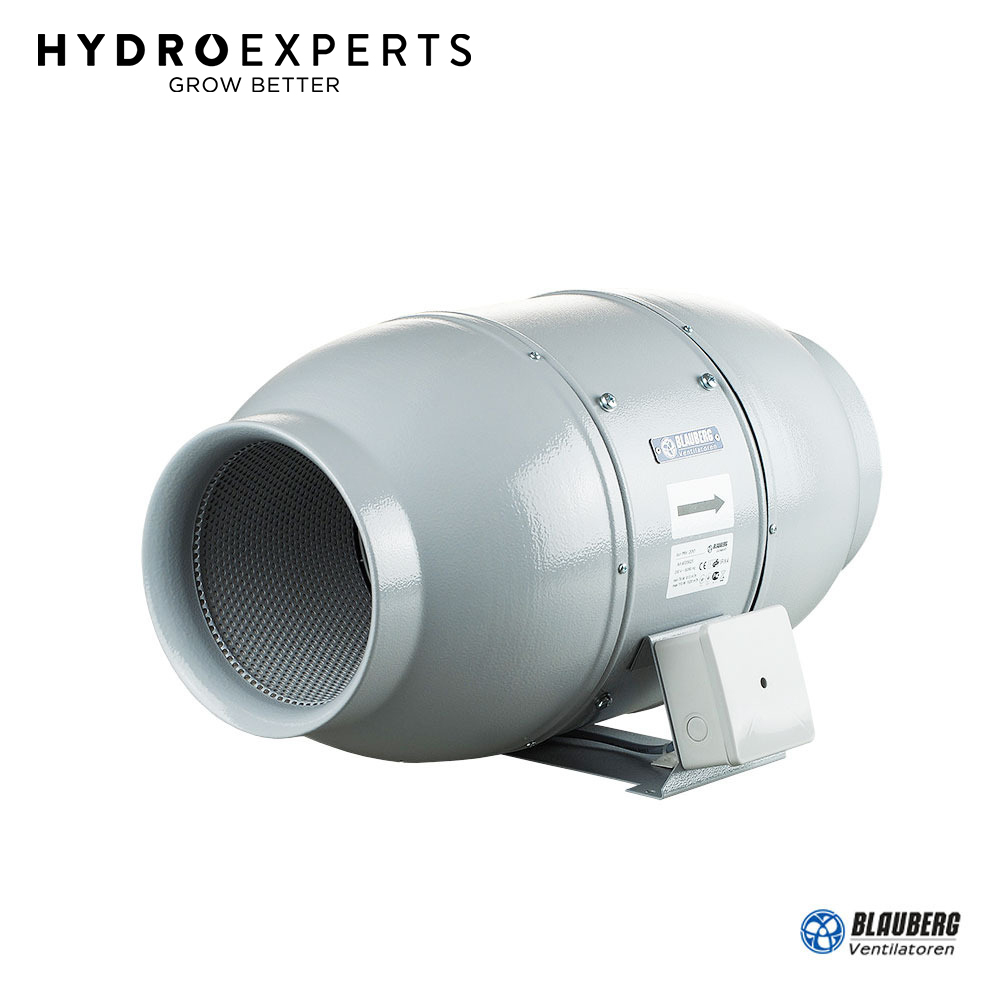

Blauberg Sound Insulated Iso-Mix 2 Speed Exhaust Fan - 315MM | 1130CFM | 40dBA

#SKU: FAN1104
Brand: Blauberg
View PDF brochure for Blauberg Sound Insulated Iso-Mix 2 Speed Exhaust Fan - 315MM |  1130CFM | 40dBA Download PDF brochure
$1,399.95

Availability: In Stock at Lidcombe Warehouse
Delivery Method: Free Shipping or Free Pick Up


Calculate Shipping


Description



The Blauberg Iso-Mix silenced fan can be used for indoor cultivation or for any premises such as, bathrooms, kitchens or libraries, that require high pressure, powerful air flow and low noise level. At 40dBA when the fan is on high speed, this is the quietest 315MM fan available on market today.



Features



German made in-line sound insulated duct fan. Features include Polymer coated steel case which is internally filled with 50mm mineral wool. The special inner perforated casing and thermal sound insulated layer are designed for a wide range of frequencies. The specially profiled impeller provides high performance and powerful pressure combined with low noise operation. Double speed motor and quality bearings offer quiet smooth operation. Built in overheating thermal protection.

  • The casing is made of polymer-coated steel, internally filled with 50 mm mineral wool thermal- and sound-insulating layer.
  • Special inner perforation of the casing and sound-insulating material are designed for wide-frequency sound absorbing.
  • Mixed-flow impeller made of high-quality plastic.
  • The diffusor, the specially profiled impeller and directing vanes provide high performance and powerful pressure combined with low noise operation.
  • External airtight terminal block on the fan casing for power supply.
  • Mounting brackets on the fan casing for mounting to the floor, to the wall or ceiling.
  • Double-speed single-phase high-efficient motor with low energy demand on ball bearings.
  • Overheating protection by built-in thermal switches.
  • Motor ingress protection rating IPX4.
  • Speed adjustable
    • High - 1130CFM
    • Low - 889CFM
  • Designed & Made in Germany





Specifications



Parameter Value
Phase, [˜] 1
Voltage, [V] 230
Frequency, [Hz] 50/60
Power, [W] (min) 213
Power, [W] (max) 313
Current, [A] (min) 0.93
Current, [A] (max) 1.41
Maximum air capacity, [m³/h] (min) 1510
Maximum air capacity, [m³/h] (max) 1920
RPM, [min-¹] (min) 2120
RPM, [min-¹] (max) 2620
Sound pressure level at 3 m distance, [dBA] (min) 36
Sound pressure level at 3 m distance, [dBA] (max) 40
Max. operating temperature, [°C] 60
Ingress protection rating IP X4





Type Dimensions [mm] Weight
[kg]
D D1 B H L
ISO-Mix 315 313 432 520 780 434 25





German made in-line sound insulated duct fan. Features include Polymer coated steel case which is internally filled with 50mm mineral wool. The special inner perforated casing and thermal sound insulated layer are designed for a wide range of frequencies. The specially profiled impeller provides high performance and powerful pressure combined with low noise operation. Double speed motor and quality bearings offer quiet smooth operation. Built in overheating thermal protection.

  • The casing is made of polymer-coated steel, internally filled with 50 mm mineral wool thermal- and sound-insulating layer.
  • Special inner perforation of the casing and sound-insulating material are designed for wide-frequency sound absorbing.
  • Mixed-flow impeller made of high-quality plastic.
  • The diffusor, the specially profiled impeller and directing vanes provide high performance and powerful pressure combined with low noise operation.
  • External airtight terminal block on the fan casing for power supply.
  • Mounting brackets on the fan casing for mounting to the floor, to the wall or ceiling.
  • Double-speed single-phase high-efficient motor with low energy demand on ball bearings.
  • Overheating protection by built-in thermal switches.
  • Motor ingress protection rating IPX4.
  • Speed adjustable
    • High - 1130CFM
    • Low - 889CFM
  • Designed & Made in Germany
  • [1] x Blauberg Sound Isolated Iso-Mix 315MM Turbo 2 Speed Exhaust Fan 1130CFM 40dBA

Mounting

  • Due to its compact design the fan is the ideal solution for mounting in limited spaces.
  • The fan is suitable for mounting in any section of the ventilation system from intake to the end of the ductwork.
  • Wall or ceiling mounting with a special mounting plate on the fan casing.
Parameter Value
Phase, [˜] 1
Voltage, [V] 230
Frequency, [Hz] 50/60
Power, [W] (min) 213
Power, [W] (max) 313
Current, [A] (min) 0.93
Current, [A] (max) 1.41
Maximum air capacity, [m³/h] (min) 1510
Maximum air capacity, [m³/h] (max) 1920
RPM, [min-¹] (min) 2120
RPM, [min-¹] (max) 2620
Sound pressure level at 3 m distance, [dBA] (min) 36
Sound pressure level at 3 m distance, [dBA] (max) 40
Max. operating temperature, [°C] 60
Ingress protection rating IP X4





Type Dimensions [mm] Weight
[kg]
D D1 B H L
ISO-Mix 315 313 432 520 780 434 25

SKU FAN1104
Barcode # 4046634042661
Brand Blauberg
Shipping Weight 25.0000kg
Shipping Width 0.480m
Shipping Height 0.850m
Shipping Length 0.560m
Shipping Cubic 0.228480m3
Unit Of Measure ea
